Image shown is a representation only. Actual product may vary -
-
-
-

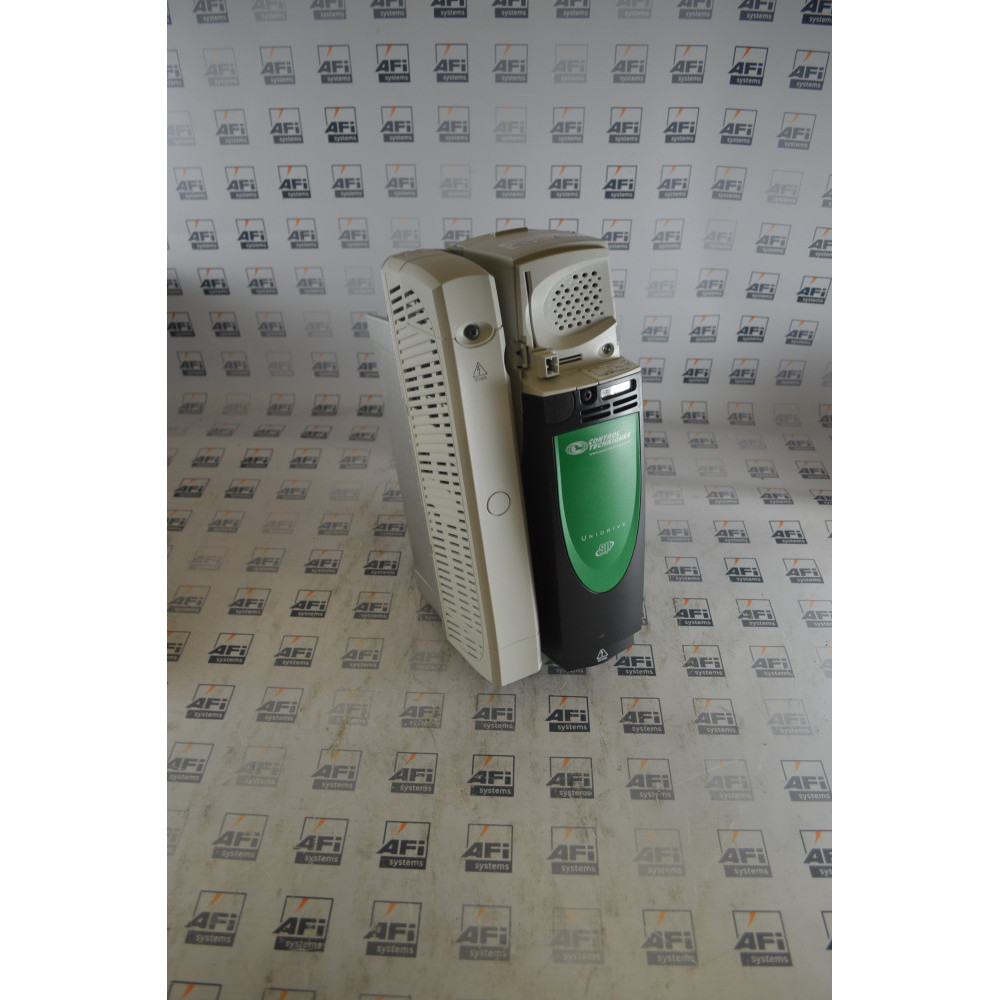

Unidrive SP 7.5kW Inverter Drive 16.5A 380-480V AC Three Phase
Control Techniques SP2402 Unidrive SP 7.5kW Inverter Drive 16.5A 380-480V AC Three PhaseSP2402 Specifications
| AC Drive Application | High Performance, Elevator, High Performance, HVAC Fan & Pump |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Heavy Duty Output (Amps) | 16.5 |
| AC Drive Heavy Duty Output (kw) | 7.5 |
| AC Drive Normal Duty Output (Amps) | 21 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive NEMA Rating | Nema 1 |
| AC Drive Keypad | Yes |
| AC Drive Filter | Industrial |
| AC Drive Loop | Closed, Open |
| AC Drive Logic | Negative, Positive |
| AC Drive Nr Digital Inputs | 7 |
| AC Drive Nr Analog Inputs | 3 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Nr Analog Outputs | 2 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Height (mm) | 368 |
| AC Drive Depth (mm) | 219 |
| AC Drive Width (mm) | 155 |
| AC Drive Weight (kg) | 7 |
Tags: SP2402
