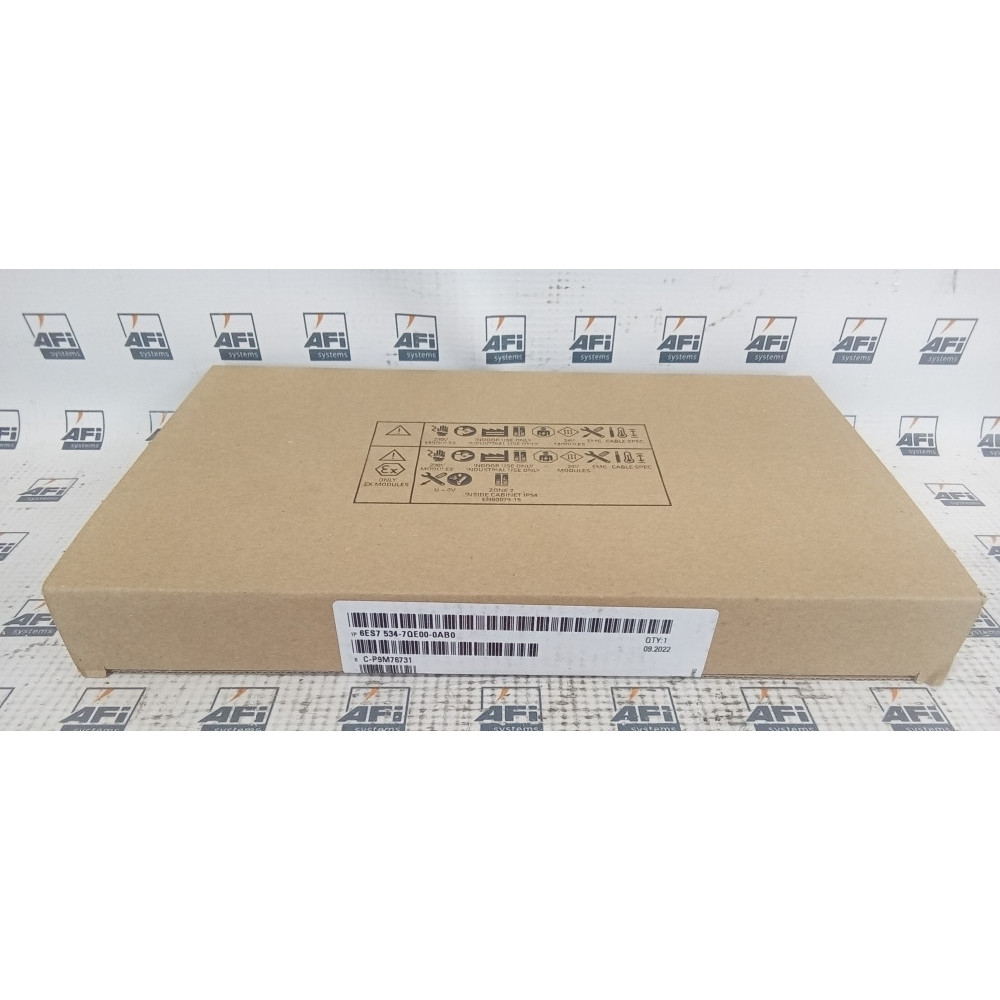

6ES7534-7QE00-0AB0 Siemens

Siemens 6ES7534-7QE00-0AB0 I/O MODULE

Siemens I/O MODULE

General information

Product type designation: AI 4xU/I/RTD/TC /AQ 2xU/I ST

HW functional status: from FS01

Firmware version: V1.0.0

● FW update possible: Yes

Product function

● I&M data: Yes; I&M0 to I&M3

● Isochronous mode: No

● Prioritized startup: No

● Measuring range scalable: No

● Scalable measured values: No

● Adjustment of measuring range: No

● Output range scalable: No

Engineering with

● STEP 7 TIA Portal configurable/integrated from version: V13 / V13.0.2

● STEP 7 configurable/integrated from version: V5.5 SP3 / -

● PROFIBUS from GSD version/GSD revision: V1.0 / V5.1

● PROFINET from GSD version/GSD revision: V2.3 / -

Operating mode

● Oversampling: No

● MSI: Yes

● MSO: Yes

CiR - Configuration in RUN

Reparameterization possible in RUN: Yes

Calibration possible in RUN: Yes

Supply voltageRated value (DC): 24 V

permissible range, lower limit (DC): 19.2 V

permissible range, upper limit (DC): 28.8 V

Reverse polarity protection: Yes

Input current Current consumption, max.: 200 mA

Encoder supply 24 V encoder supply

● Short-circuit protection: Yes

● Output current, max.: 20 mA; Max. 47 mA per channel for a duration < 10 s

Power Power consumption from the backplane bus: 0.7 W

Power loss Power loss, typ.: 3.3 W

Analog inputs Number of analog inputs: 4

● For current measurement: 4

● For voltage measurement: 4

● For resistance/resistance thermometer measurement: 2

● For thermocouple measurement: 4

permissible input voltage for voltage input (destruction limit), max.: 28.8 V

permissible input current for current input (destruction limit), max.: 40 mA

Constant measurement current for resistance-type transmitter, typ.: 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1.25 mA; 6 000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000: 0.625 mA; PTC: 0.472 mA

Technical unit for temperature measurement adjustable: Yes; °C/°F/K

Analog input with oversampling: No

Standardization of measured values: No

Input ranges (rated values), voltages

● 0 to +5 V: No

● 0 to +10 V: No

● 1 V to 5 V: Yes

— Input resistance (1 V to 5 V)100 kΩ

● -1 V to +1 V: Yes

— Input resistance (-1 V to +1 V)10 MΩ

● -10 V to +10 V: Yes

— Input resistance (-10 V to +10 V)100 kΩ

● -2.5 V to +2.5 V: Yes

— Input resistance (-2.5 V to +2.5 V)10 MΩ

● -25 mV to +25 mV: No

● -250 mV to +250 mV: Yes

— Input resistance (-250 mV to +250 mV)10 MΩ

● -5 V to +5 V: Yes

— Input resistance (-5 V to +5 V)100 kΩ

● -50 mV to +50 mV: Yes

— Input resistance (-50 mV to +50 mV)10 MΩ

● -500 mV to +500 mV: Yes

— Input resistance (-500 mV to +500 mV)10 MΩ

● -80 mV to +80 mV: Yes

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), currents

● 0 to 20 mA: Yes

— Input resistance (0 to 20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

● -20 mA to +20 mA: Yes

— Input resistance (-20 mA to +20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

● 4 mA to 20 mA: Yes

— Input resistance (4 mA to 20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

Input ranges (rated values), thermocouples

● Type B: Yes

— Input resistance (Type B)10 MΩ

● Type C: No

● Type E: Yes

— Input resistance (Type E)10 MΩ

● Type J: Yes

— Input resistance (type J)10 MΩ

● Type K: Yes

— Input resistance (Type K)10 MΩ

● Type L: No

● Type N: Yes

— Input resistance (Type N)10 MΩ

● Type R: Yes

— Input resistance (Type R)10 MΩ

● Type S: Yes

— Input resistance (Type S)10 MΩ

● Type T: Yes

— Input resistance (Type T)10 MΩ

● Type U: No

● Type TXK/TXK(L) to GOST: No

Input ranges (rated values), resistance thermometer

● Cu 10: No

● Cu 10 according to GOST: No

● Cu 50: No

● Cu 50 according to GOST: No

● Cu 100: No

● Cu 100 according to GOST: No

● Ni 10: No

● Ni 10 according to GOST: No

● Ni 100: Yes; Standard/climate

— Input resistance (Ni 100)10 MΩ

● Ni 100 according to GOST: No

● Ni 1000: Yes; Standard/climate

— Input resistance (Ni 1000)10 MΩ

● Ni 1000 according to GOST: No

● LG-Ni 1000: Yes; Standard/climate

— Input resistance (LG-Ni 1000)10 MΩ

● Ni 120: No

● Ni 120 according to GOST: No

● Ni 200: No

● Ni 200 according to GOST: No

● Ni 500: No

● Ni 500 according to GOST: No

● Pt 10: No

● Pt 10 according to GOST: No

● Pt 50: No

● Pt 50 according to GOST: No

● Pt 100: Yes; Standard/climate

— Input resistance (Pt 100)10 MΩ

● Pt 100 according to GOST: No

● Pt 1000: Yes; Standard/climate

— Input resistance (Pt 1000)10 MΩ

● Pt 1000 according to GOST: No

● Pt 200: Yes; Standard/climate

— Input resistance (Pt 200)10 MΩ

● Pt 200 according to GOST: No

● Pt 500: Yes; Standard/climate

— Input resistance (Pt 500)10 MΩ

● Pt 500 according to GOST: No

Input ranges (rated values), resistors

● 0 to 150 ohms: Yes

— Input resistance (0 to 150 ohms)10 MΩ

● 0 to 300 ohms: Yes

— Input resistance (0 to 300 ohms)10 MΩ

● 0 to 600 ohms: Yes

— Input resistance (0 to 600 ohms)10 MΩ

● 0 to 3000 ohms: No

● 0 to 6000 ohms: Yes

— Input resistance (0 to 6000 ohms)10 MΩ

● PTC: Yes

— Input resistance (PTC)10 MΩ

Thermocouple (TC)

Temperature compensation

— parameterizable: Yes

— internal temperature compensation: Yes

— external temperature compensation via RTD: Yes

— Compensation for 0 °C reference point temperature: Yes; fixed value can be set

— Reference channel of the module: No

Cable length

● shielded, max.: 800 m; for U/I, 200 m for R/RTD, 50 m for TC

Analog outputs

Number of analog outputs: 2

Voltage output, short-circuit protection: Yes

Voltage output, short-circuit current, max.: 24 mA

Current output, no-load voltage, max.: 22 V

Cycle time (all channels), min.: 3.2 ms; ±0.5 ms, regardless of the number of activated channels

Output ranges, voltage

● 0 to 10 V: Yes

● 1 V to 5 V: Yes

● -5 V to +5 V: No

● -10 V to +10 V: Yes

Output ranges, current

● 0 to 20 mA: Yes

● -20 mA to +20 mA: Yes

● 4 mA to 20 mA:Yes

Connection of actuators

● for voltage output two-wire connection: Yes

● for voltage output four-wire connection: Yes

● for current output two-wire connection: Yes

Ambient conditions

Ambient temperature during operation

● horizontal installation, min.: -25 °C; from FS04

● horizontal installation, max.:60 °C

● vertical installation, min.:-25 °C; from FS04

● vertical installation, max.: 40 °C

Altitude during operation relating to sea level

● Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
