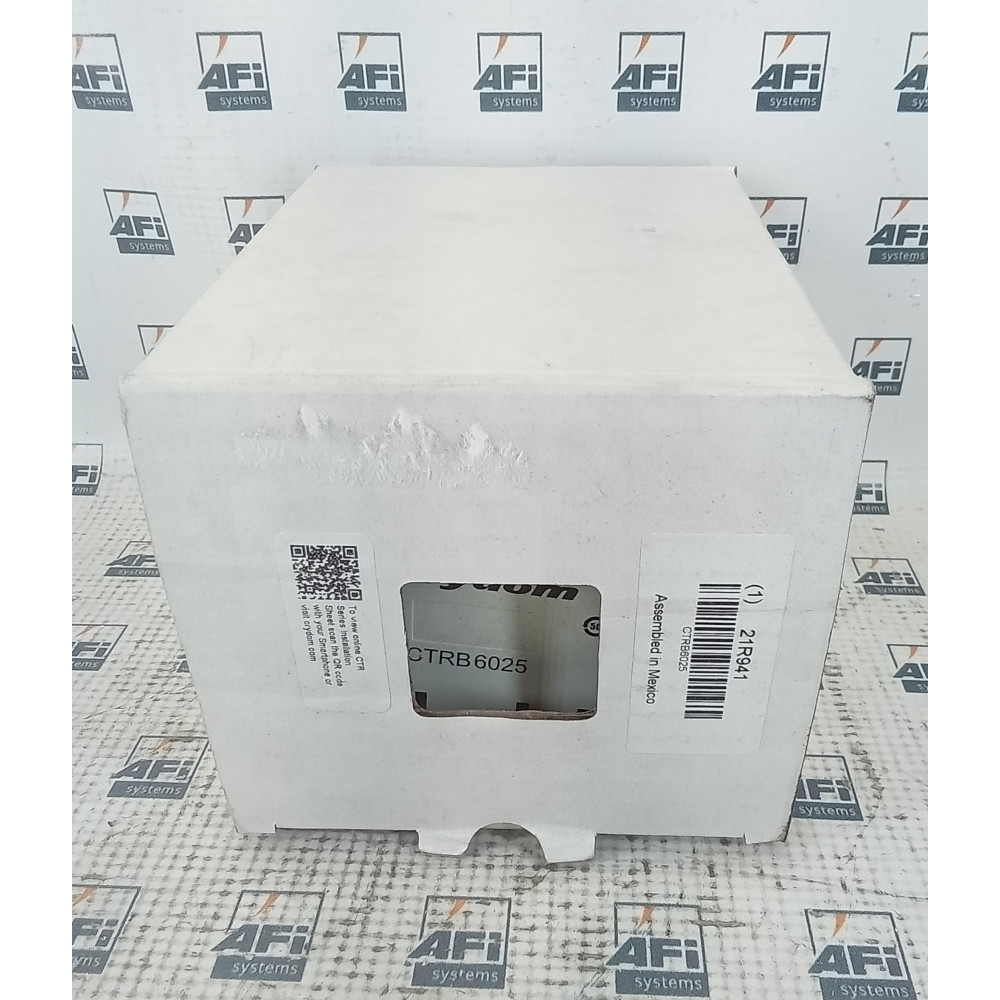

CTRB6025 Crydom Fincor

Crydom CTRB6025 Solid State Relay

Crydom Solid State Relay

Brand

CRYDOM

Manufacturer Part Number

CTRB6025

Series

CTR Series

Relay Mounting Style

DIN-Rail

Electrical Connection Type

Screw

Switch Configuration

Form A

Input Current

19 mA

Input Voltage

90 to 140V AC

Output Voltage

48 to 600V AC

Voltage/Current Type

AC Output

Output Switching Mode

Zero Crossing

Current Type

DC

Heat Sink

Integral

Maximum Output Current with Heat Sink

25 A

Maximum Output Current without Heat Sink

25 A

Switch Component Type

SCR

Finger Safe

Yes

Electrical Phase

Three

Frequency

50/60 Hz

Response Time

20 msec

Status Indicator

LED

IndicatorMaximum Capacitance

8 pF

Horsepower @ 240V AC

1 hp

Power Factor

0.5

Minimum Operating Temperature

-4 °F

Maximum Operating Temperature

176 °F

Insulation Resistance

1,000 megaohm

Case Color

Gray

Body Depth

4.86 in

Body Height

3.59 in

Body Width

3.54 in

Standards

CE Certified; EMC Compliant; RoHS Compliant; UL 508; UL Listed

UNSPSC

39121542

Country of Origin

Mexico (subject to change)
