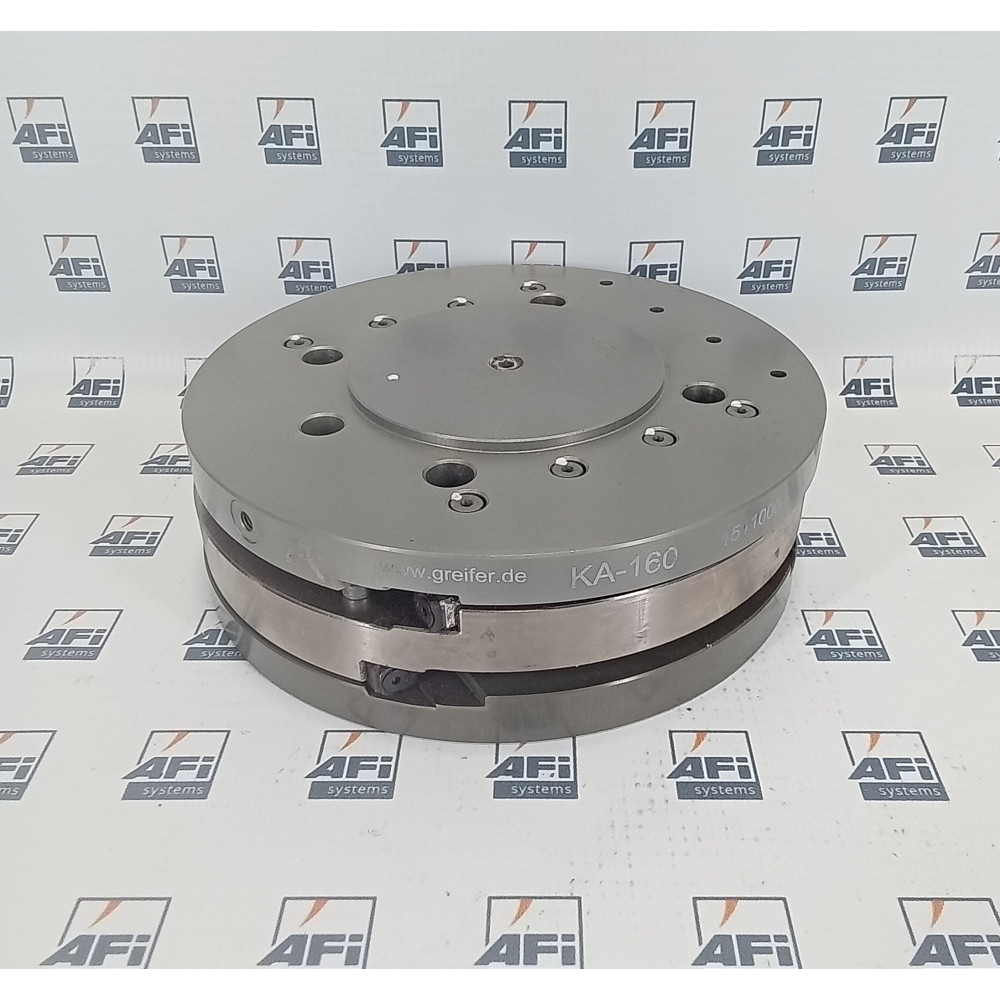

Greifer KA-160 Compensation Module
Greifer KA-160 Compensation Module
Version: with central locking
Max. compensation X/Y: +/- 4 mm
Recommended handling weight: 30 kg
Max. tensile force Fz: 1,500 N
Max. compressive force Fd: 2,000 N
Max. moment Mx, My: 110 Nm
Max. moment Mz: 110 Nm
Locking force: 475 N
Repeatability: 0.025 mm
Weight: 3.5 kg
Air consumption per cycle: 0.11 l
Opening time: 0.1 s
Closing time: 0.3 s
