MagPowr TC-5 Current-Regulated Power Supply

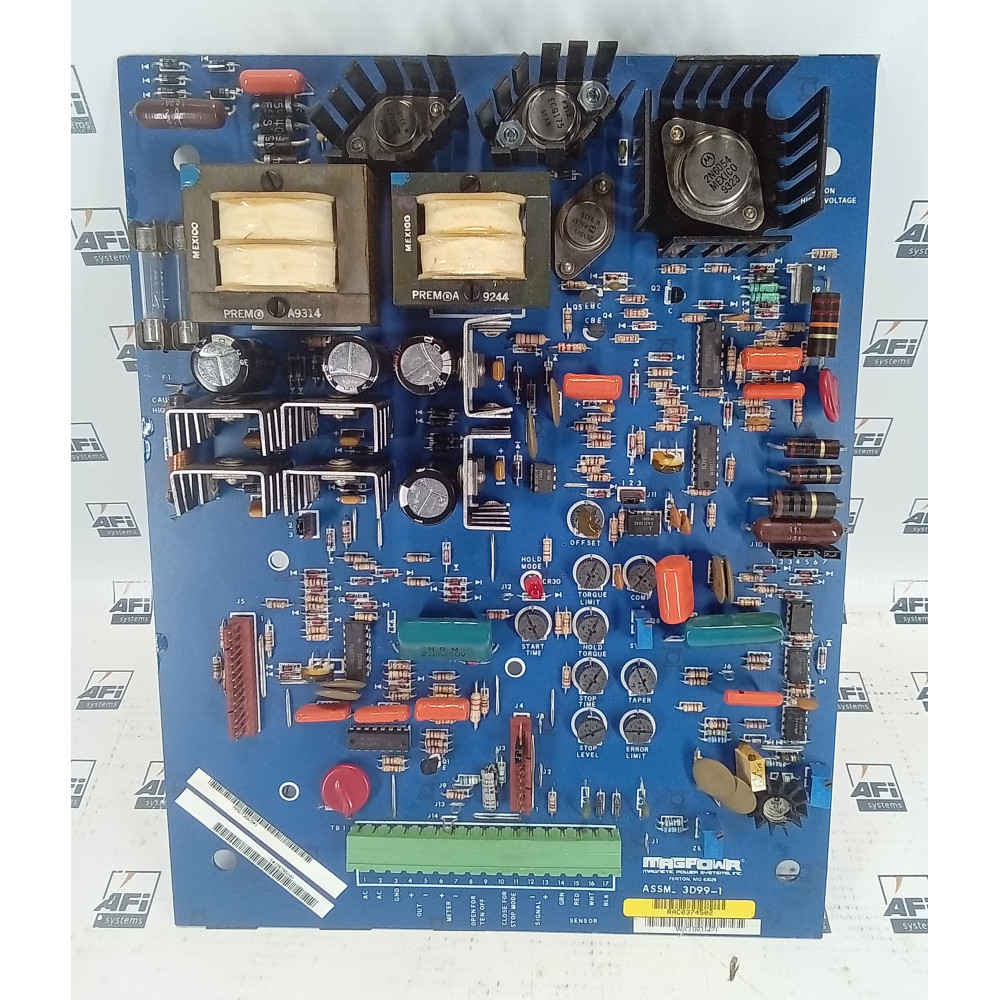

MagPowr Current Regulator Board
SPECIFICATION
Known input
95 to 135 VAC, 50/60 Hz,1.2 amp at 1 amp output, 117 VA with clutch or brake
Known meter
Reads 0 to 100% of selected current range
Known operating temperature
32 to 104 F, 0 to 40 C
Known output
-3 to 90 VDC, full wave, SCR phase controlled, selectable current ranges 1/8, 1/4, 1/2, and 1 amp maximum
Known regulation
Better than 2% of range selected
Known storage temperature
-22 to 185 F, -30 to 85 C
