NX-ID5442 Omron

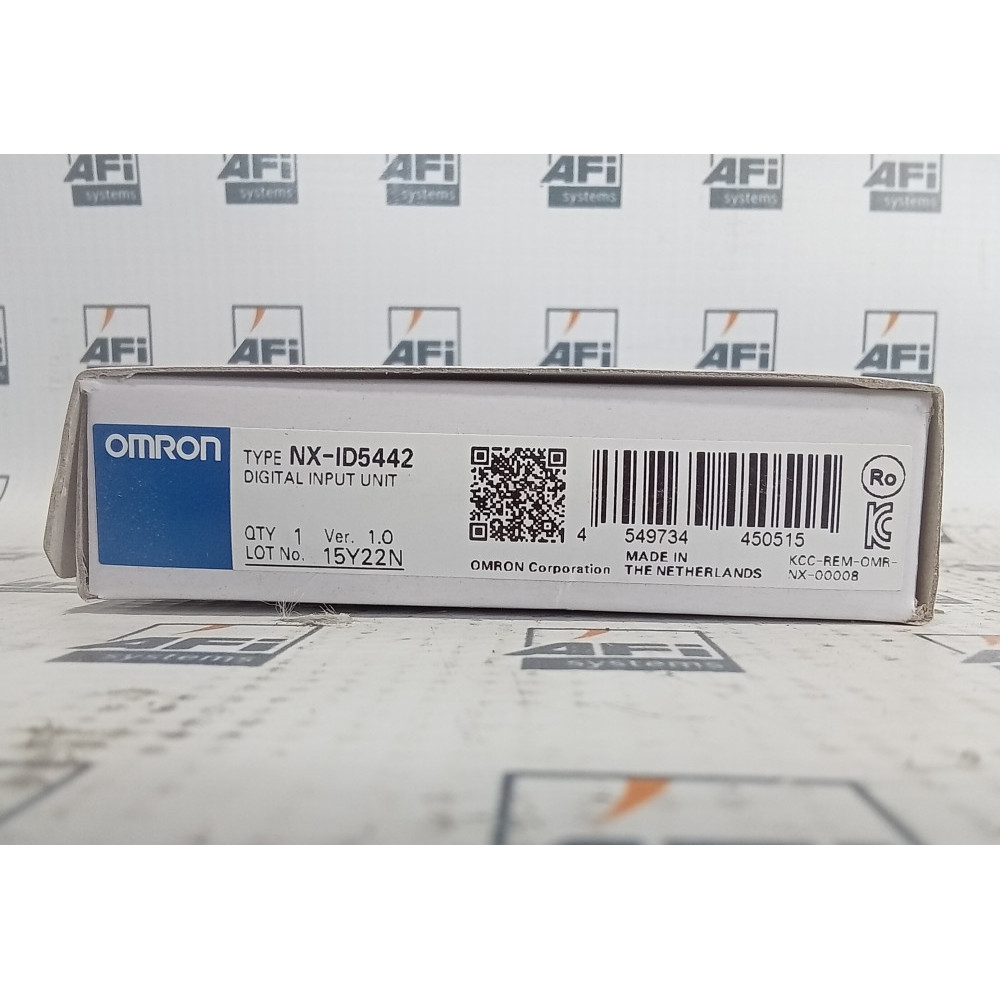

Omron NX-ID5442 I/O Module

Omron I/O Module

Digital Input Ouput Unit

The Omron NX-ID5442 is a general-purpose digital I/O unit that can provide high-speed synchronous control. It connects to the Omron NJ/NX/NY Controllers via an EtherCAT interface.  DIN rail mounted, with 16 digital inputs and easy to use spring terminals, this digital I/O device is suitable for numerous automation and process control applications.

Digital I/O unit Features

• High-speed I/O refreshing using the EtherCAT coupler

• I/O refreshing synchronised with the control cycle of the controller (synchronous refreshing)

• Time-stamp inputs and outputs anywhere in the EtherCAT network can be independently controlled with sub-microsecond accuracy

• Detachable terminals for easy maintenance

• Screwless Push-In Plus terminal block or MIL/Fujitsu connector speeds up installation

• Compact with a width of 12 mm per unit (connector type: 30 mm)

• 4, 8, 16 or 32 inputs for flexible I/O configuration (NX-ID/IA)

• 2, 4, 8, 16 or 32 outputs for flexible I/O configuration (NX-OD/OC)

• Connect to the CJ PLC using the EtherNet/IPTM bus coupler
