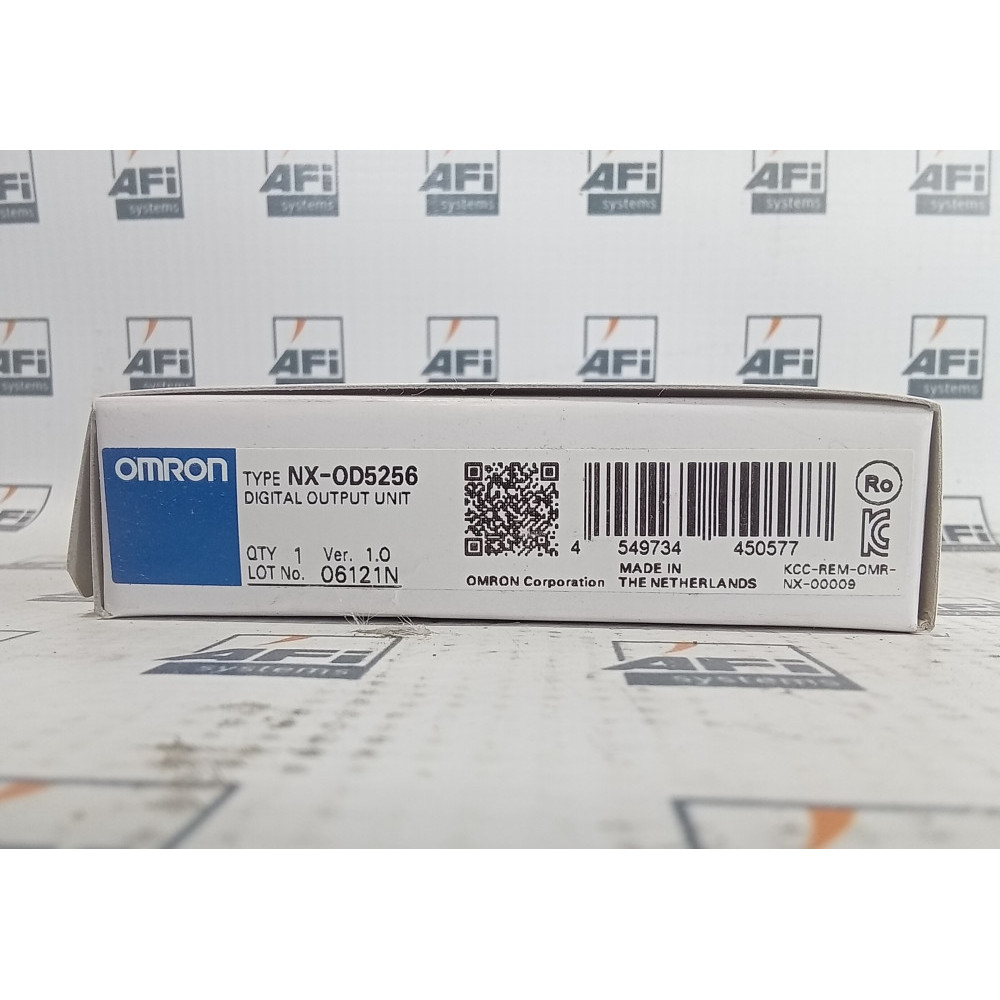

NX-OD5256 Omron

Omron I/O Module

Omron I/O Module

NX-Series 16 Point Digital I/O Unit

Modern machine control requires system-wide synchronisation of motion axes with microsecond accuracy. The NX I/O system offers this timing accuracy and repeatability for a wide variety of in and outputs. Its ultra-fast internal bus system is synchronised with the Distributed Clock of the EtherCAT network, resulting in system wide deterministic I/O operation.

16 Point Digital I/O Unit Features

• 16 Digital outputs, PNP

• Operating voltage 24 Vdc

• Removable wiring terminals for easy system assembly and testing

• High-speed I/O refreshing using the EtherCAT coupler

• I/O refreshing synchronized with the control cycle of the controller

• Time-stamp inputs and outputs controlled with sub-microsecond accuracy

• Screwless Push-In Plus terminal block or MIL/Fujitsu connector

• Ideal for Sysmac Machine automation controllers and CJ2-series PLC's

• Synchronous I/O updates, system-wide using EtherCAT

• Compact with a width of 12 mm per unit (connector type: 30 mm)

• Connect to the CJ PLC using the EtherNet/IPTM bus coupler
