Omron NX-SID800 Safety Inputs

Omron Safety Inputs

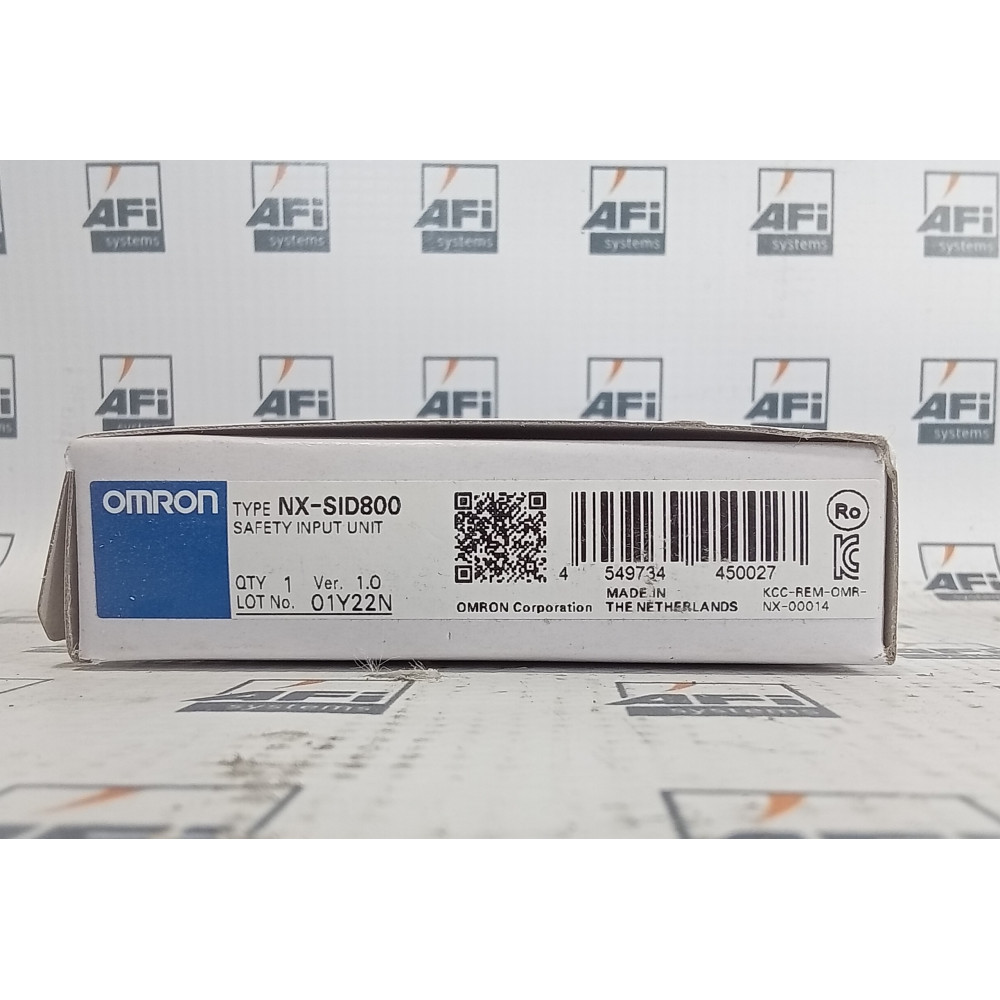

NX-SID800 Standalone Safety Input Controller

The NX series safety control input units have been designed to provide a simple and flexible solution for high-speed, high-precision motion control and safety control in industrial process environments. This dependable control unit facilitates the integration of safety into machine automation. This safety controller annot be connected to Omron special safety input devices.

Designed for demanding tasks this safety CPU unit can control up to 128 safety I/O units, with 8 points per safety input unit and 2 test output points. Hardware and safety circuits can be configured using the Sysmac Studio (Ver. 1.07) software.

NX Series Input Controller Features

• Rated input voltage 24 VDC

• Input Module NX Series for use with NX Control Units

• Power rating 0.75 W, DIN rail mounting, Push in connectivity

• Number of safety slave connections

• Integrated safety into machine automation by connecting with the NX-series EtherCAT Coupler

• Internal I/O common – sourcing input (PNP)

• Safety CPU unit controls up to 128 safety I/O units

• 8 points per Safety Input Unit, 2 test output points

• Free-run refreshing I/O method

• Freely allocated in any combination with standard NX I/O

• Safety programs can be standardised and reused by using POUs for design and operation
