NX-SOD400 Omron

Omron Safety Controller

Omron Safety Controller

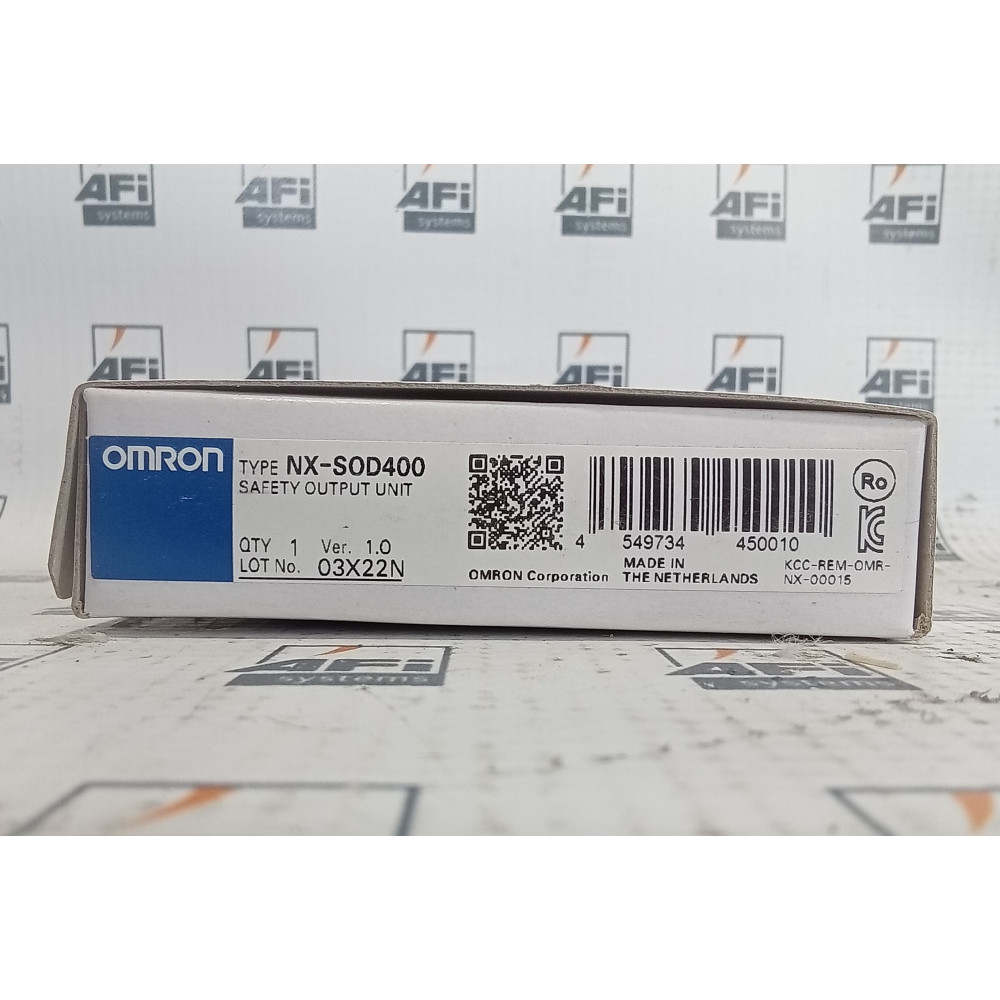

NX-SOD400 Standalone Safety Output Controller

The NX series safety output control units have been designed to provide a simple and flexible solution for high-speed, high-precision motion control and safety control in industrial process environments. This dependable control unit facilitates the integration of safety into machine automation, enabling simple and flexible system configuration by mixing the safety units with standard NX I/O.

Designed for demanding tasks this safety CPU unit can control up to 128 safety I/O units, with 4 points per safety unit. The 4-point safety output unit can be directly connector with Omron non-contact switches and single beam sensors. Hardware and safety circuits can be configured using the Sysmac Studio (Ver. 1.07) software.

Standalone Safety Output Controller Features

• Rated voltage 24 VDC

• Integrated safety into machine automation by connecting with the NX-series EtherCAT Coupler

• The Safety CPU Unit controls up to 128 Safety I/O Units

• Internal I/O common – sourcing output (PNP)

• 4 points per Safety Output Unit

• Slave connections – 1

• Free-run refreshing I/O method

• The Safety Units can be freely allocated in any combination with standard NX I/O.

• Safety programs can be standardized and reused efficiently by using POUs for design and operation
