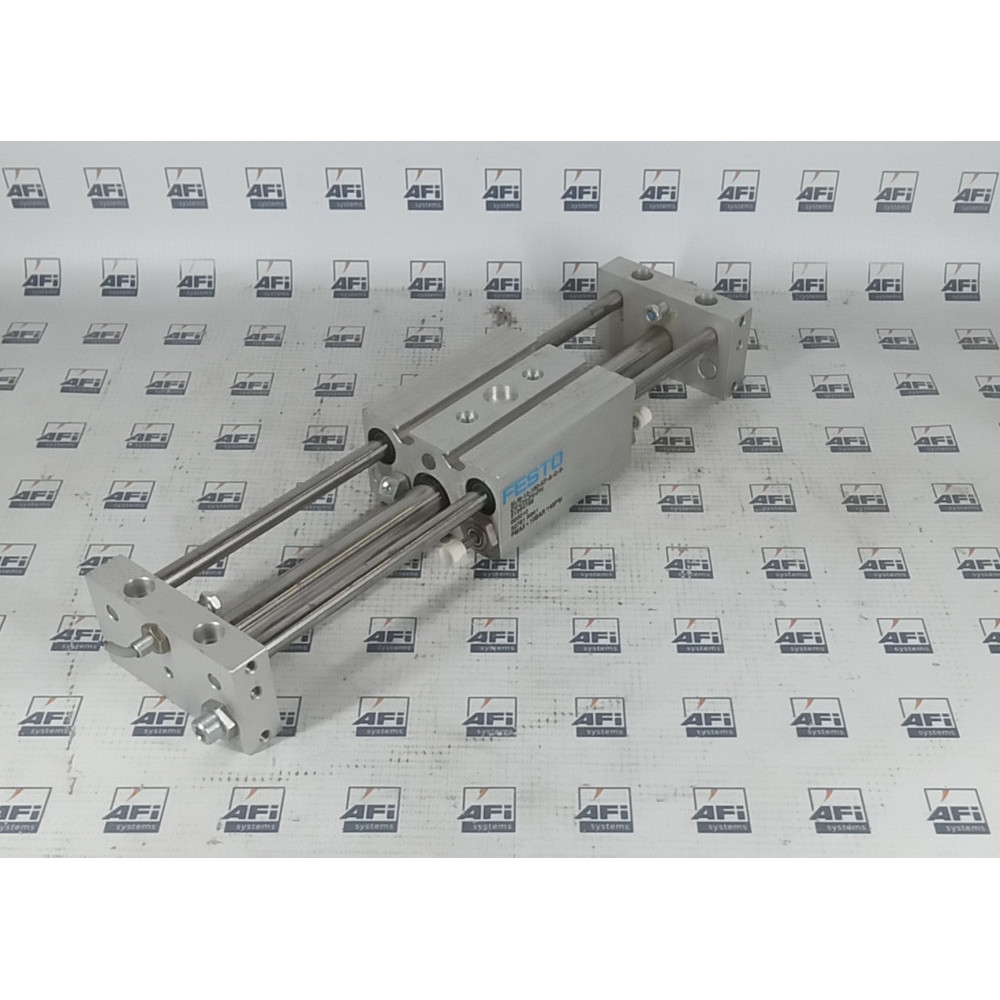

FESTO SLM-12-160-KF-A-G-S-CV-CH-PV-PH
Stroke 10 mm ... 500 mm Piston diameter 12 mm Cushioning Elastic cushioning rings/plates at both ends Shock absorber, hard characteristic curve Mounting position optional Guide Recirculating ball bearing guide Position detection Via proximity switch Via inductive sensors Variants Standard design Operating pressure 0.7 MPa Operating pressure 7 bar Mode of operation Double-acting Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -20 °C ... 60 °C Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 68 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 68 N Moving mass 620 g Additional moving mass per 10 mm stroke 10 g Basic weight for 0 mm stroke 1110 g Additional weight per 10 mm stroke 10 g Pneumatic connection M5 Material cover Aluminium Material seals PA TPE-U(PU) Material housing Aluminium
Image shown is a representation only. Actual product may vary
