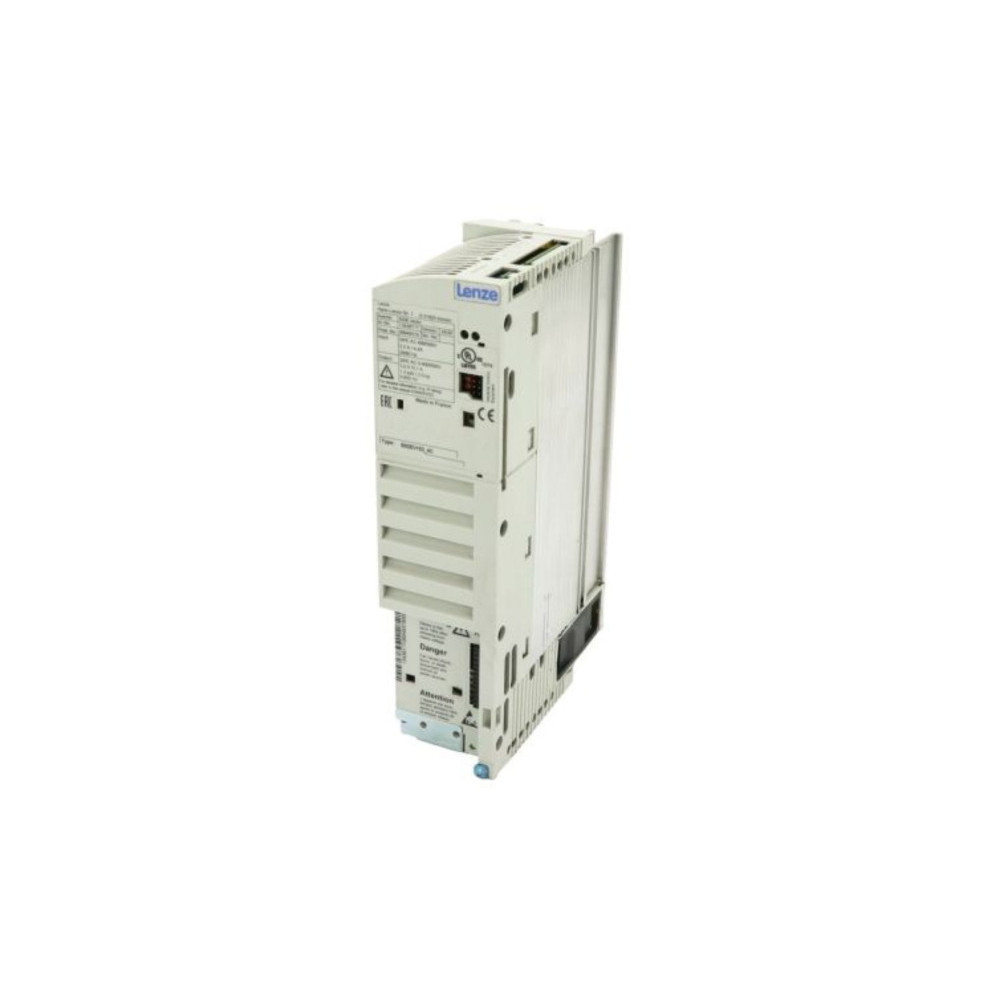

Image shown is a representation only. Actual product may vary
Lenze E82EV222K2B 2.2kW 8200 Vector Drive
The 8200 Vector E82EV222K2B by Lenze is a 2.2kW, 3.0HP, 9.5A VSD /w/ Single PhaseThree Phase 200-240V AC input. With years of experience working on Lenze products, AFi Systems are fully able to repair and supply the whole range of 8200 Vector VSDs.
General Information
Terminals include: 1x AI, 1x AQ, 5x DI, 1x DQ and 1x relay output(s).
Features a IP20, NEMA 1 rated enclosure, 333mm high x 60mm wide x 140mm deep /w/ 1.6kg weight.
Bus Function Modules
The 8200 Vector series supports a host of possible bus function modules, listed below:
- PROFIBUS-DP (E82ZAFPC010)
- PROFIBUS I/O (E82ZAFPC201)
- System Bus CAN PT (E82ZAFCC010)
- System Bus CAN I/O PT (E82ZAFCC210)
- System Bus CAN I/O RS PT (E82ZAFCC100)
- CANopen PT (E82ZAFUC010)
- DeviceNet PT (E82ZAFVC010)
- INTERBUS PT (E82ZAFIC010)
- LECOM-B PT (E82ZAFLC010)
- AS Interface PT (E82ZAFFC010)
Communications Modules
In addition to the above bus function modules, the 8200 Vector series also supports several communications modules, listed below:
- PROFIBUS-DP (EMF2133IB)
- System Bus CAN (EMF2171IB, EMF2172IB)
- CANopen (EMF2178IB)
- DeviceNet (EMF2179IB)
- INTERBUS (EMF2113IB)
- LECOM-A (EMF2102IBCV004)
- LECOM-B (EMF2102IBCV002)
- LECOM-A/B (EMF2102IBCV001)
- LECOM-LI (EMF2102IBCV003)
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 8200 Vector inverter, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your VSD.
Any Questions?
If you require any assistance or have any questions about whether this 2.2kW 8200 Vector inverter is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 8200 Vector requests, and can ship drives to you quickly.
E82EV222K2B Specifications
| AC Drive Application | HVAC Fan & Pump |
| AC Drive Input Voltage (VAC) | 200...240V AC |
| AC Drive Heavy Duty Output (HP) | 3.0 |
| AC Drive Heavy Duty Output (Amps) | 9.5 |
| AC Drive Heavy Duty Output (kw) | 2.2 |
| AC Drive Phase | Single Phase, Three Phase |
| AC Drive Protection | IP20 |
| AC Drive NEMA Rating | NEMA 1 |
| AC Drive Filter | Industrial |
| AC Drive Loop | Closed, Open |
| AC Drive Nr Digital Inputs | 5 |
| AC Drive Nr Analog Inputs | 1 |
| AC Drive Nr Digital Outputs | 1 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Height (mm) | 333 |
| AC Drive Depth (mm) | 140 |
| AC Drive Width (mm) | 60 |
| AC Drive Weight (kg) | 1.6 |
