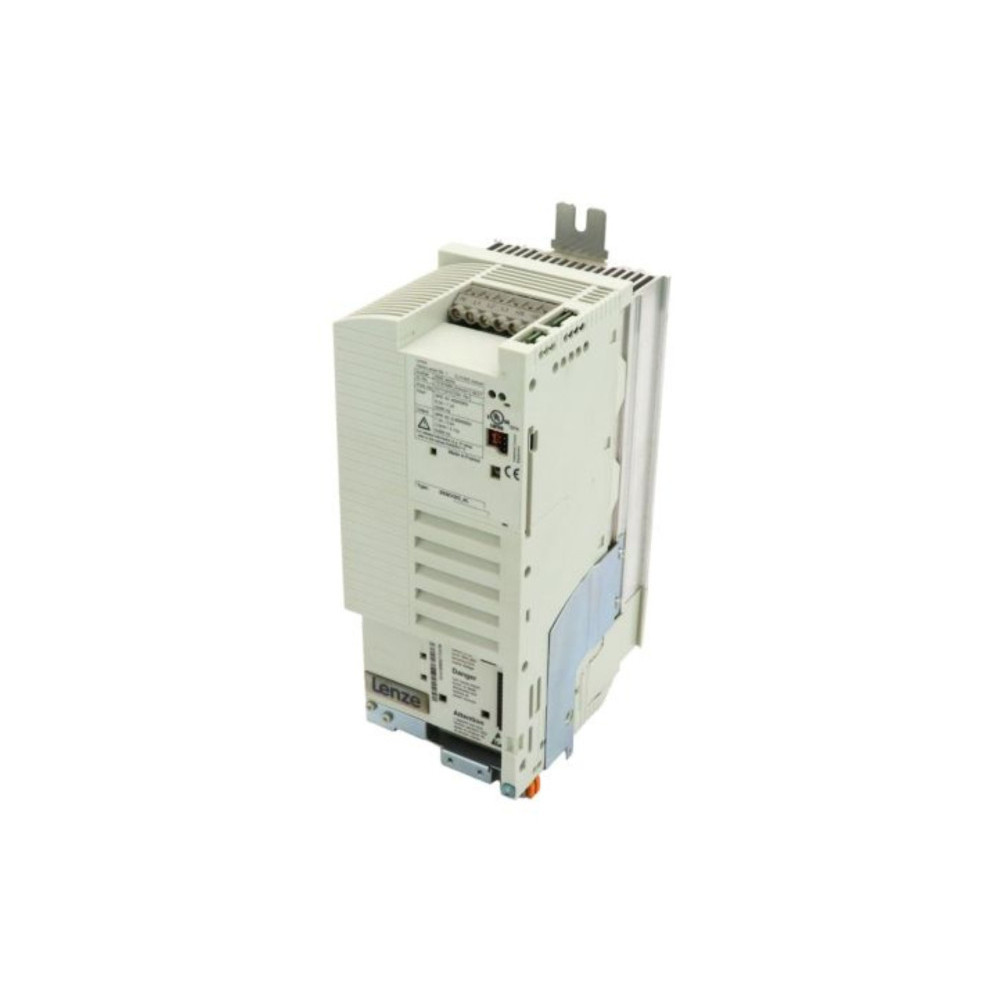

Image shown is a representation only. Actual product may vary
Lenze E82EV402K4C040 4kW 8200 Vector Drive
The 8200 Vector E82EV402K4C040 by Lenze is a 4kW, 5.0HP, 9.5A AC drive /w/ Three Phase 380-480V AC input. With years of experience working on Lenze products, AFi Systems are fully equipped to repair and supply the full line of 8200 Vector variable frequency drives.
General Information
Terminals include: 1x AI, 1x AQ, 5x DI, 1x DQ and 1x relay output(s).
Contained within a IP20, NEMA 1 rated enclosure, 333mm high x 100mm wide x 140mm deep /w/ 2.9kg weight.
Bus Function Modules
The 8200 Vector series supports a variety of possible bus function modules, listed below:
- PROFIBUS-DP (E82ZAFPC010)
- PROFIBUS I/O (E82ZAFPC201)
- System Bus CAN PT (E82ZAFCC010)
- System Bus CAN I/O PT (E82ZAFCC210)
- System Bus CAN I/O RS PT (E82ZAFCC100)
- CANopen PT (E82ZAFUC010)
- DeviceNet PT (E82ZAFVC010)
- INTERBUS PT (E82ZAFIC010)
- LECOM-B PT (E82ZAFLC010)
- AS Interface PT (E82ZAFFC010)
Communications Modules
In addition to the above bus function modules, the 8200 Vector range also supports several communications modules, listed below:
- PROFIBUS-DP (EMF2133IB)
- System Bus CAN (EMF2171IB, EMF2172IB)
- CANopen (EMF2178IB)
- DeviceNet (EMF2179IB)
- INTERBUS (EMF2113IB)
- LECOM-A (EMF2102IBCV004)
- LECOM-B (EMF2102IBCV002)
- LECOM-A/B (EMF2102IBCV001)
- LECOM-LI (EMF2102IBCV003)
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 8200 Vector VSD, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your variable speed drive.
Any Questions?
If you require any assistance or have any questions about whether this 4kW 8200 Vector VSD is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 8200 Vector requests, and can ship drives to you quickly.
E82EV402K4C040 Specifications
| AC Drive Application | HVAC Fan & Pump |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Heavy Duty Output (HP) | 5.0 |
| AC Drive Heavy Duty Output (Amps) | 9.5 |
| AC Drive Heavy Duty Output (kw) | 4 |
| AC Drive Normal Duty Output (HP) | 7.5 |
| AC Drive Normal Duty Output (Amps) | 11.4 |
| AC Drive Normal Duty Output (kw) | 5.5 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive NEMA Rating | NEMA 1 |
| AC Drive Filter | Industrial |
| AC Drive Loop | Closed, Open |
| AC Drive Nr Digital Inputs | 5 |
| AC Drive Nr Analog Inputs | 1 |
| AC Drive Nr Digital Outputs | 1 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Height (mm) | 333 |
| AC Drive Depth (mm) | 140 |
| AC Drive Width (mm) | 100 |
| AC Drive Weight (kg) | 2.9 |
