EVF8215-E-V020 Lenze

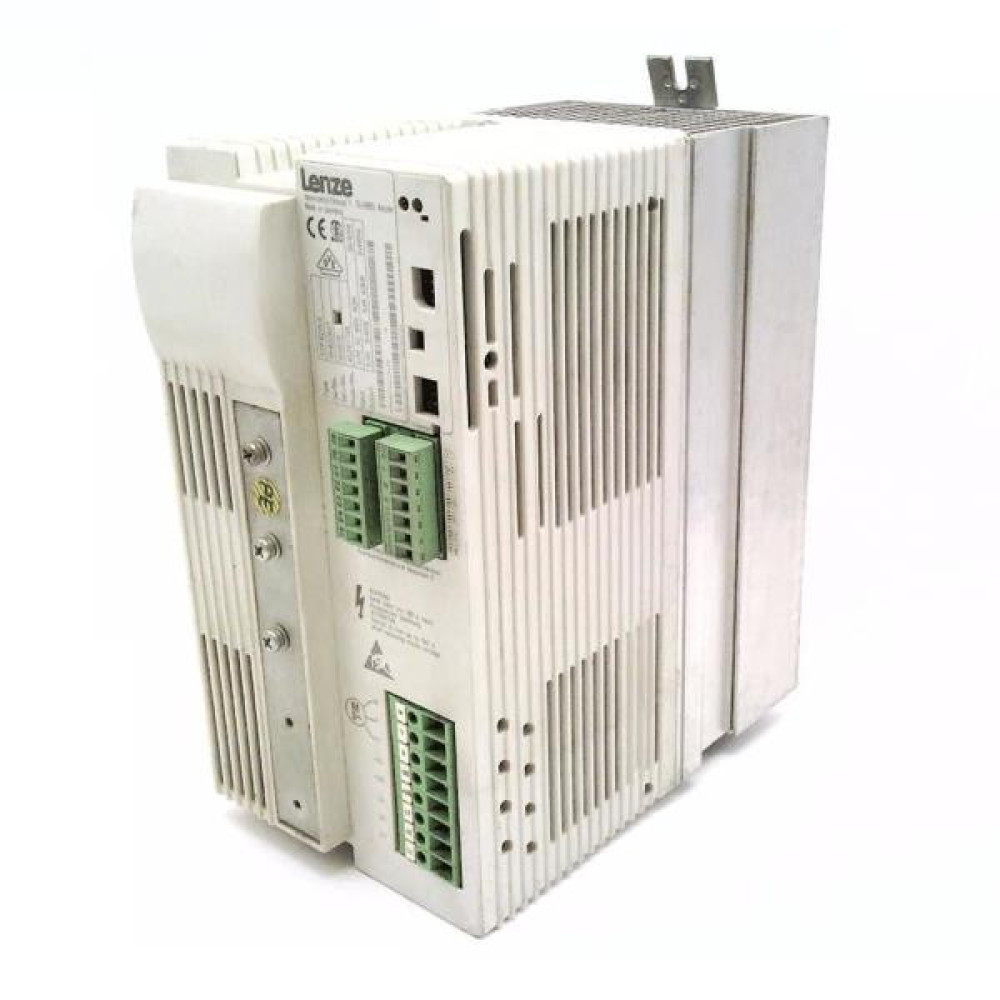

Lenze EVF8215-E-V020 8200 Series 4kW 380-480V AC Inverter

The Lenze EVF8215-E-V020 is part of the Lenze 8200 range of variable frequency drives. As a 4 kW, 9.4 A, 380-480V AC inverter, the EVF8215-E-V020 is ideal for a large variety of applications. Find support for the EVF8215-E-V020 from the 8200 VSD series at AFi Systems.

Benefits of the EVF8215-E-V020 AC Drive

The Lenze 8200 range has many advantages for its users. From its compact appearance to ease of use, the VFD has been designed with the user in mind. More benefits of the VSD include:

• Flexibility - Optimise the inverter to your application due to the modular structure of the Lenze 8200 range. You can set a series of these drives up in a networked bus system or they can be used simply as stand alone variable speed drives.
• Adaptability - Adapt your EVF8215-E-V020 drive to loads with torque requirements rising in a constant or quadratic manner. The inverter can also be easily restarted when the shaft is still running thanks to the integrated flying restart circuit.
• Simplicity - High functionality whilst still retaining simple operability is one of the key characteristics of the EVF8215-E-V020 variable frequency drive. Parameterisation software makes setting of parameters quick and easy whilst the Global Drive Control provides a clear menu structure and user-guided commissioning.
• Energy Saving - The 8200 series of VSDs are only driven to suit the current demand for torque/power, saving you energy.

Features of the EVF8215-E-V020

The Lenze 8200 series of drives have numerous features to make them suitable for a wide range of applications. These features include:

• Analogue and digital inputs
• Analogue and digital outputs
• Relay outputs
• 4 freely parameterisable parameter sets
• Fieldbus communications including RS232/485 serial interfaces
• Bus connection for most common fieldbus systems including CAN, PROFIBUS, INTERBUS, DeviceNet, CANopen, AS-Interface
• Operating modes including V/f linear, V/f quadratic, vector control, torque selection
• Short circuit proof and earth fault proof during operation
• Adjustable current limitation
• Overvoltage and undervoltage protection
• PID controller
• DC braking
• Keypad with plain text display and menu structure, copy function for transferring inverter settings

Support for Lenze Drives from the Experts

Receive complete support for your Lenze EVF8215-E-V020 from AFi Systems. We include a comprehensive two-year warranty with all Lenze spares and repairs for your added reassurance. Contact us today for any help regarding the EVF8215-E-V020 AC drive.

EVF8215-E-V020 Specifications
