EVF8218-E-V020 Lenze

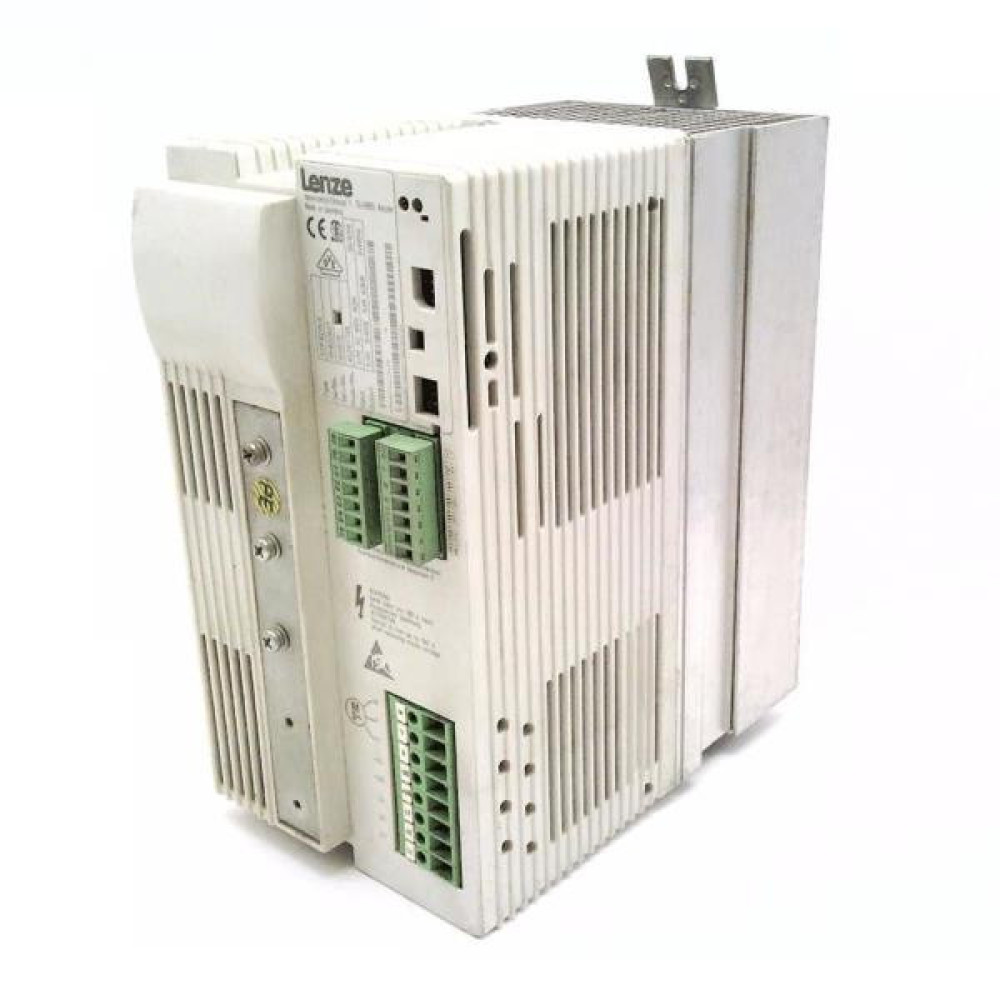

Lenze EVF8218-E-V020 8200 Series 15kW 380-480V AC Inverter

Part of the 8200 family of AC drives manufactured by Lenze, the EVF8218-E-V020 is a 15 kW, 23.5 A, 380-480V AC variable speed drive. Due to its extensive array of features, it is ideal for a whole range of applications. Find support for the EVF8218-E-V020 from the 8200 VSD series at AFi Systems.

Benefits of the EVF8218-E-V020 AC Drive

The Lenze 8200 family has many advantages for its users. From its user friendliness to its compact design, the AC drive has been designed with the user in mind. More benefits of the variable frequency drive include:

• Flexibility - Optimise the variable speed drive to your application due to the modular structure of the Lenze 8200 family. These inverters can be used as stand alone drives or networked in a bus system.
• Adaptability - Adapt your EVF8218-E-V020 drive to loads with torque requirements rising in a constant or quadratic manner. The variable frequency drive can also be easily restarted when the shaft is still running thanks to the integrated flying restart circuit.
• Simplicity - High functionality whilst still retaining simple operability is one of the key characteristics of the EVF8218-E-V020 drive. Parameterisation software makes setting of parameters quick and easy whilst the Global Drive Control provides a clear menu structure and user-guided commissioning.
• Energy Saving - The 8200 series of VSDs are only driven to suit the current demand for torque/power, saving you energy.

Features of the EVF8218-E-V020

The Lenze 8200 series of inverters have numerous features to make them suitable for a wide array of applications. These features include:

• Analogue and digital inputs
• Analogue and digital outputs
• Relay outputs
• 4 freely parameterisable parameter sets
• Fieldbus communications including RS232/485 serial interfaces
• Bus connection for most common fieldbus systems including CAN, PROFIBUS, INTERBUS, DeviceNet, CANopen, AS-Interface
• Operating modes including V/f linear, V/f quadratic, vector control, torque selection
• Short circuit proof and earth fault proof during operation
• Adjustable current limitation
• Overvoltage and undervoltage protection
• PID controller
• DC braking
• Keypad with plain text display and menu structure, copy function for transferring inverter settings

Support for Lenze Inverters from the Experts

Receive complete support for your Lenze EVF8218-E-V020 from AFi Systems. We include a comprehensive two-year warranty with all Lenze spares and repairs for your added peace of mind. Contact us today for any help regarding the EVF8218-E-V020 AC drive.

EVF8218-E-V020 Specifications
