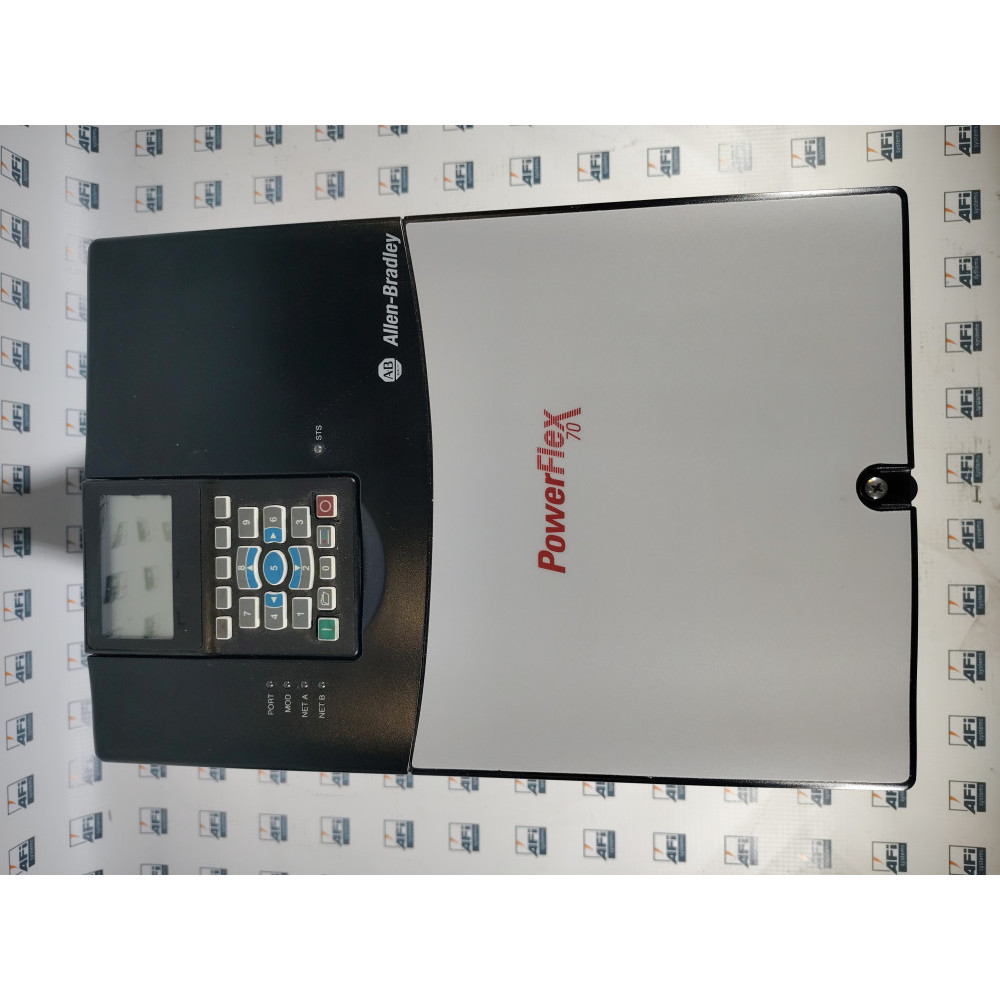

Allen-Bradley 20AD027A0AYNANNN 11kW PowerFlex 70 Series Inverter
The 20AD027A0AYNANNN is an Allen-Bradley PowerFlex 70 series inverter /w/ 3ph 380...480VAC supply and 11kW, 15HP, 27A output.
IP20 rated enclosure, frame size D; 350mm x 226mm x 235mm (HxWxD), net weight of 9kg.
20AD027A0AYNANNN Specifications
| AC Drive Input Voltage (VAC) | 380...480 |
| AC Drive Heavy Duty Output (Amps) | 27 |
| AC Drive Heavy Duty Output (kw) | 11 |
| AC Drive Normal Duty Output (HP) | 20 |
| AC Drive Normal Duty Output (Amps) | 27 |
| AC Drive Normal Duty Output (kw) | 15 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive Loop | Open, Closed |
| AC Drive Logic | Negative, Positive |
| AC Drive Nr Digital Inputs | 6 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 2 |
| AC Drive Height (mm) | 360 |
| AC Drive Depth (mm) | 235 |
| AC Drive Width (mm) | 226 |
| AC Drive Weight (kg) | 9 |
