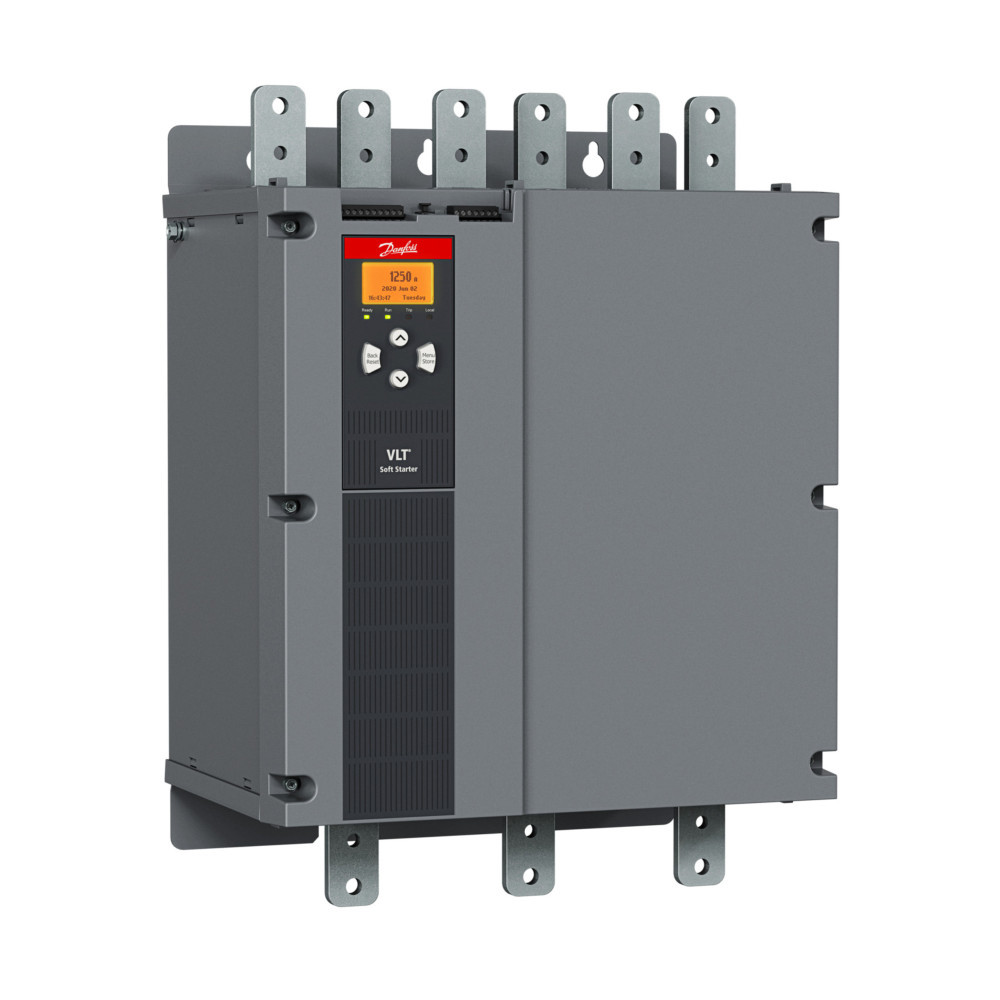

136Z4346 Danfoss

Coming from Danfoss's VLT Soft Starter MCD 600 family, the 136Z4346 (full part #: MCD60590CT7S3X00CV1) is a soft starter taking a 3ph 380...690VAC supply /w/ a 24VAC/DC control voltage, suitable for a 450HP motor /w/ a 421A full load current in heavy duty operation (450%, 30s, 4 starts/hr) and a 500HP motor /w/ a 535A full current load in normal duty operation (350%, 30s, 4 starts/hr), both @ 575VAC nominal.

Benefits

The VLT Soft Starter MCD 600 line features an extended simulation mode, with a full simulation of start behaviour to allow testing without hooking up mains supply or a motor.
Inbuilt timers and schedulers allow for easy automation, while the pump-clean and PowerThrough functions increase uptime, staving off system failures.
A USB port comes as standard for installation, with a variety of communication and application-based option cards are offered.
Finally, the unit comes with a 4-line graphical display, with multiple programming setup menus that support eight different languages.

Physical Information

IP00 rated, chassis-style unit; 618mm x 447mm x 310mm (HxWxD), net weight of 47kg.
Rated for operation between -10°C...+60°C /w/ derating <40°C @ 5...95% relative humidity, non-condensing.
Suitable for use at altitudes <1000m above sea level, higher altitudes require derating.
Tolerance for pollution and vibration conformant to Pollution Degree 3 and IEC 60068-2-6 respectively.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 136Z4346, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your soft starter.
