132H2230 Danfoss

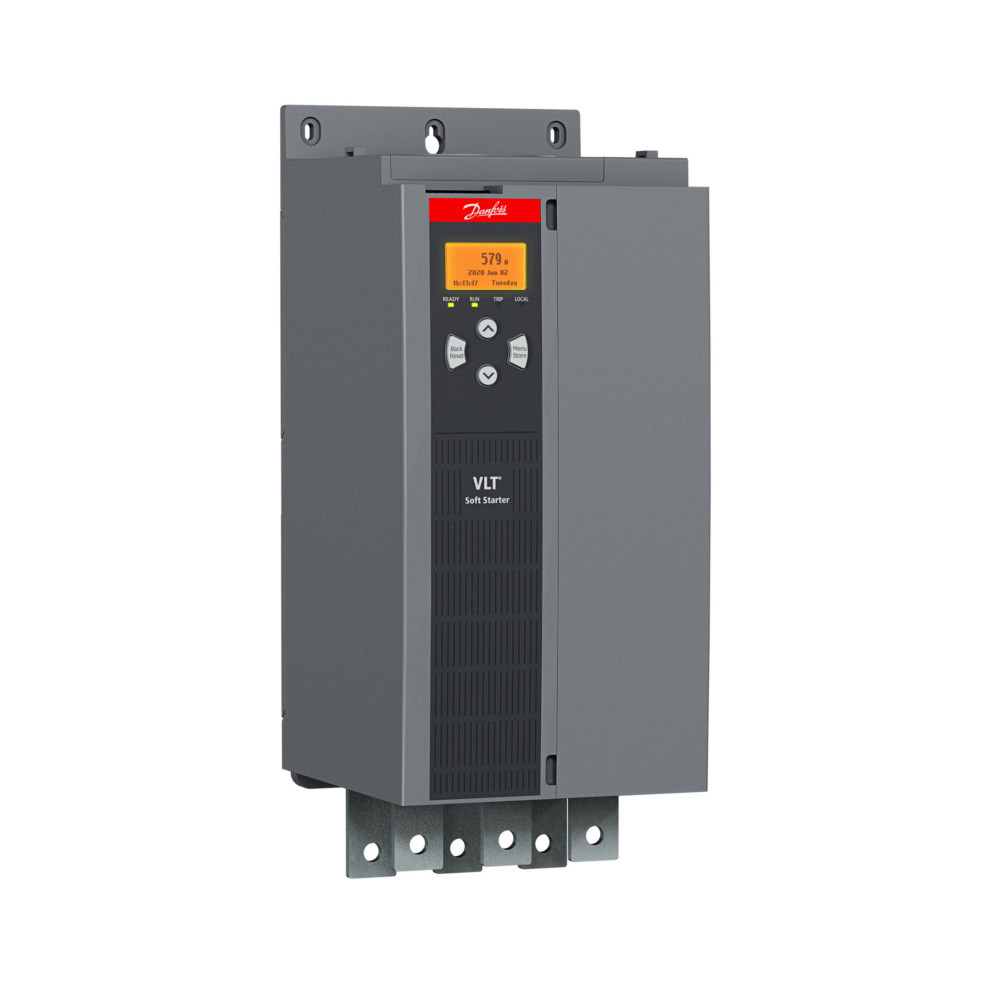

Coming from Danfoss's VLT Soft Starter MCD 600 range, the 132H2230 (alternatively known as the MCD60160CT5S2X00CV1) is a soft starter taking a 3ph 200...525VAC supply /w/ a 24VAC/DC control voltage, suitable for a 100HP motor /w/ a 130A full load current in heavy duty operation (450%, 30s, 4 starts/hr) and a 125HP motor /w/ a 159A full current load in normal duty operation (350%, 30s, 4 starts/hr), both @ 460VAC nominal.

Benefits

The VLT Soft Starter MCD 600 family sports an extended simulation mode, with a full simulation of start behaviour to allow testing without hooking up mains supply or a motor.
Inbuilt timers and schedulers allow for easy automation, while the pump-clean and PowerThrough functions increase uptime, decreasing system failures.
A USB port comes as standard for installation, with a host of communication and application-based option cards are available.
Finally, the unit comes with a 4-line graphical display, with multiple programming setup menus that support eight different languages.

Physical Information

IP00 rated, chassis-style unit; 495mm x 216mm x 243mm (HxWxD), net weight of 12.2kg.
Rated for operation between -10°C...+60°C /w/ derating <40°C @ 5...95% relative humidity, non-condensing.
Suitable for use at altitudes <1000m above sea level, higher altitudes require derating.
Tolerance for pollution and vibration conformant to Pollution Degree 3 and IEC 60068-2-6 respectively.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 132H2230, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your soft starter.

Any Questions?

If you require any assistance or have any questions about whether this unit is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your requests, and can ship units to you quickly.
