136G7368 Danfoss

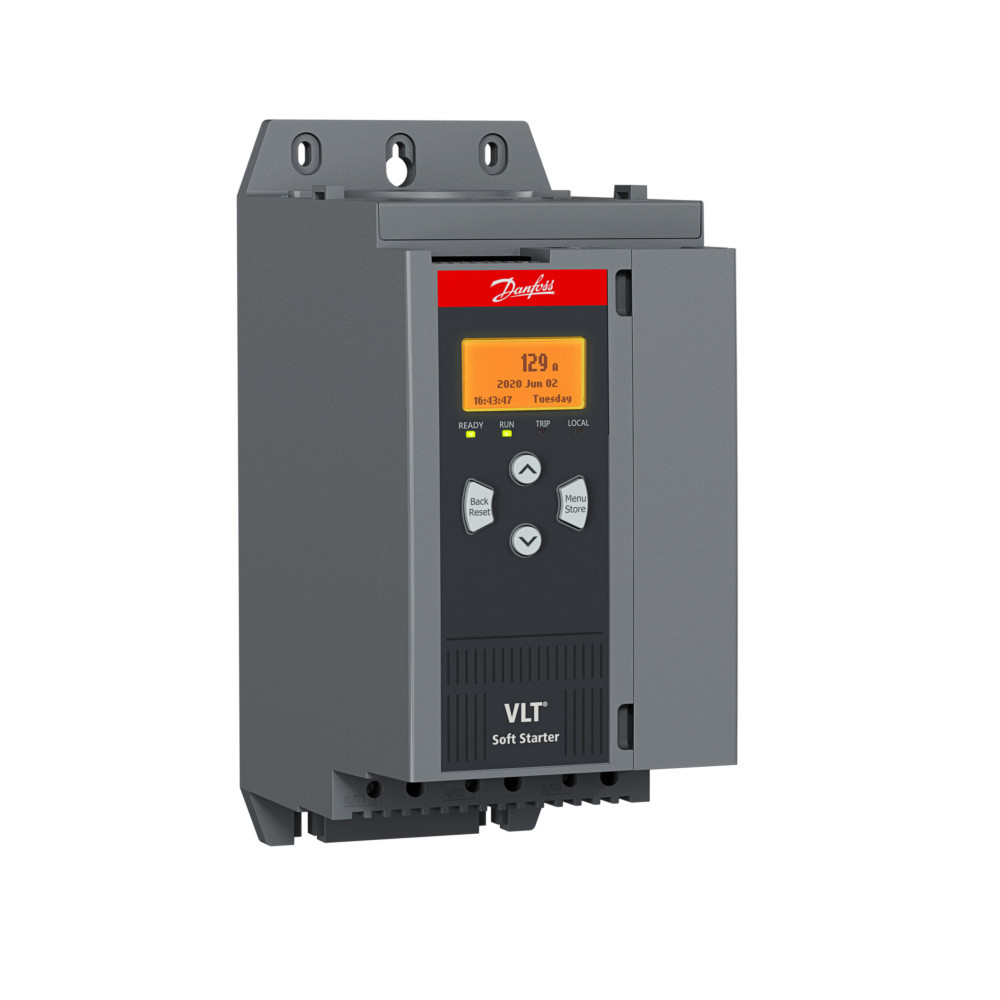

Coming from Danfoss's VLT Soft Starter MCD 600 range, the 136G7368 (also known as the MCD60069BT7S1X20CV2) is a soft starter taking a 3ph 380...690VAC supply /w/ a 110...120VAC / 220...240VAC control voltage, suitable for a 40HP motor /w/ a 46A full load current in heavy duty operation (450%, 30s, 4 starts/hr) and a 50HP motor /w/ a 59A full current load in normal duty operation (350%, 30s, 4 starts/hr), both @ 575VAC nominal.

Benefits

The VLT Soft Starter MCD 600 family features an extended simulation mode, with a full simulation of start behaviour to allow testing without hooking up mains supply or a motor.
Inbuilt timers and schedulers allow for painless automation, while the pump-clean and PowerThrough functions increase uptime, staving off system failures.
A USB port comes as standard for installation, with a host of communication and application-based option cards are available.
Finally, the unit comes with a 4-line graphical display, with multiple programming setup menus that support eight different languages.

Physical Information

IP20 rated, chassis-style unit; 336mm x 152mm x 231mm (HxWxD), net weight of 4.9kg.
Rated for operation between -10°C...+60°C /w/ derating <40°C @ 5...95% relative humidity, non-condensing.
Suitable for use at altitudes <1000m above sea level, higher altitudes require derating.
Tolerance for pollution and vibration conformant to Pollution Degree 3 and IEC 60068-2-6 respectively.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 136G7368, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your soft starter.
