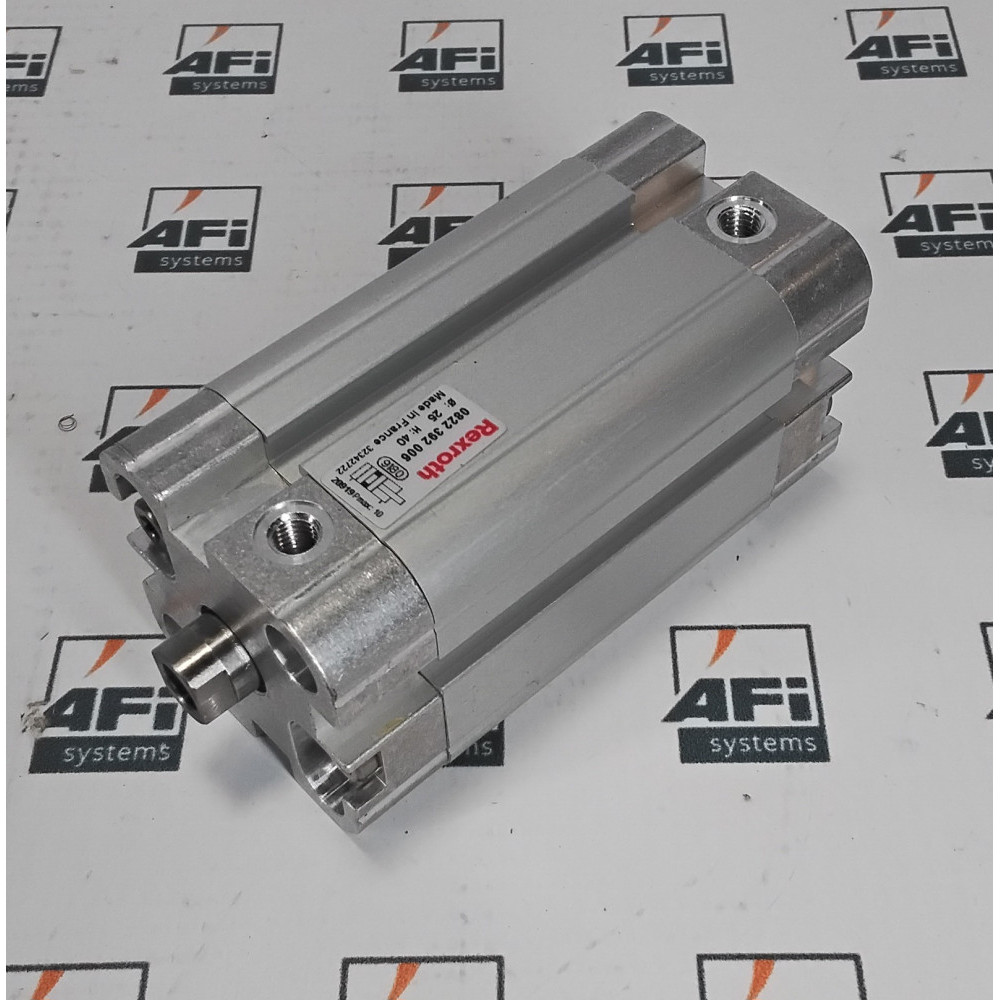

Rexroth 0822 392 006 Pneumatic Cylinder
Rexroth Pneumatic Cylinder
Technical Specifications
Cylinder Type: Compact cylinder, Series KPZ.
Action: Double-acting (air pressure moves the piston in both directions).
Dimensions: Piston diameter of 25 mm and a stroke length of 40 mm.
Pressure Range: Operating pressure between 1 bar and 10 bar (max 145 psi).
Temperature Range: Suitable for ambient and medium temperatures from -20°C to +80°C.
Materials: Features an anodized aluminum cylinder tube, a stainless steel piston rod, and polyurethane seals.
Weight: Approximately 0.218 kg (0.48 lbs).
Port Size: Features an M5 internal thread connection.
Magnetic Piston: Includes a built-in magnet for proximity position sensing.
