131Z1779 Danfoss

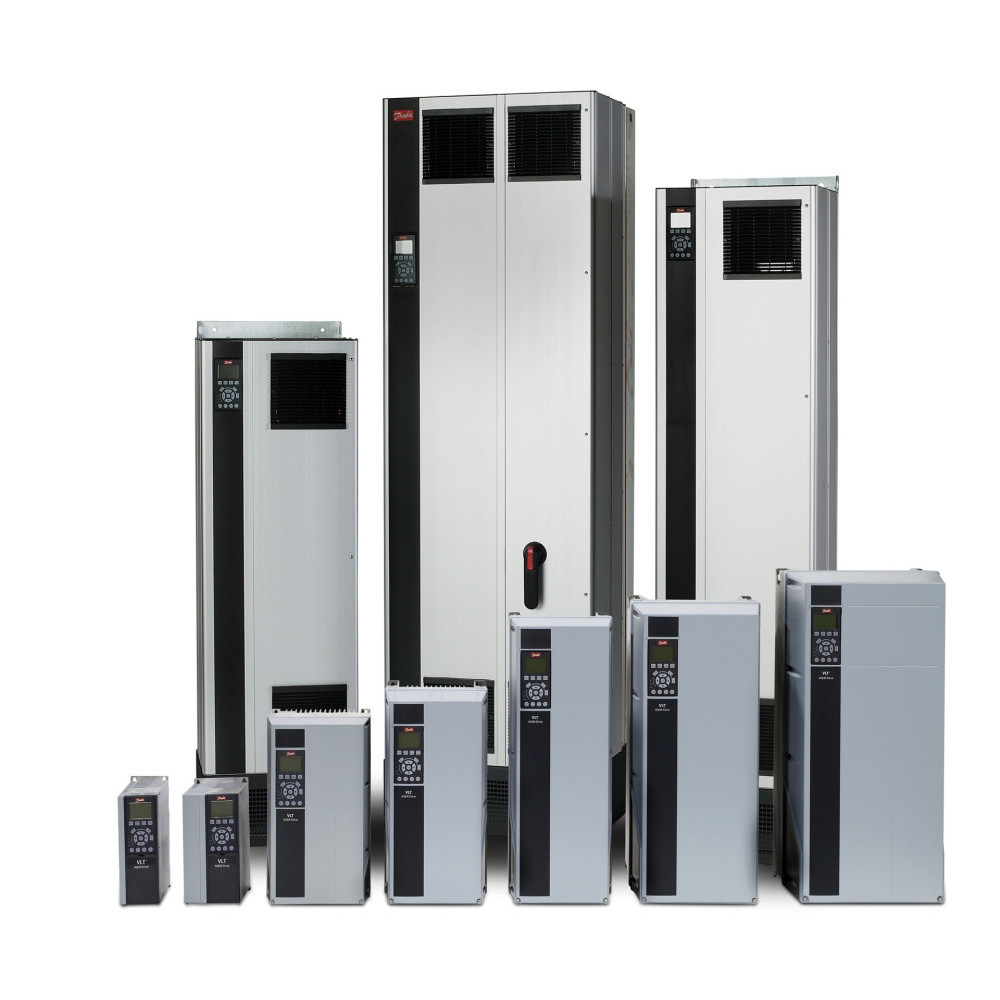

The 131Z1779 by Danfoss (typecode: FC-202P11KT4E55H2XGX3SXSXXXXAXBXCXXXXDX) is part of the VLT AQUA Drive FC-202 series. It is an AC inverter /w/ a 3ph 380...480 supply and outputting 7.5kW, 10HP, 14.5A.

Terminal Information

Note: Logic can be switched between PNP and NPN (source and sink) via parameter 5-00. All digital inputs must be configured from digital input terminals.
6x DI (24VDC nominal, 28VDC^max; OFF <5VDC, ON >10VDC in PNP operation; OFF >19VDC, ON <14VDC in NPN operation).
2x AI (Individually conf. as voltage/current via DIP switch; 0...10V input in voltage mode, ±20V max. allowable, approx. 10kΩ impedance; 0/4mA...20mA in current mode, 30mA max. allowable, approx. 200Ω impedance).
2x DQ (40mA @ 0...24VDC).
1x AQ (0/4mA...20mA, 500Ω max. load).
All values given are for onboard drive I/O only, expansions not considered.

Physical Information

IP55, NEMA 12 rated unit; 480mm x 242mm x 260mm (HxWxD), net weight of 23kg.
Rated for operation between 0°C...+50°C ambient @ 5...95% relative humidity non-condensing.
Suitable for altitudes =<1000m above sea-level without derating.
IE2 energy efficiency class and conformant to EN 61800-3 EMC emission and immunity standards.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 131Z1779, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your VFD.

Any Questions?

If you require any assistance or have any questions about whether this 7.5kW 131Z1779 is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your requests, and can ship drives to you quickly.
