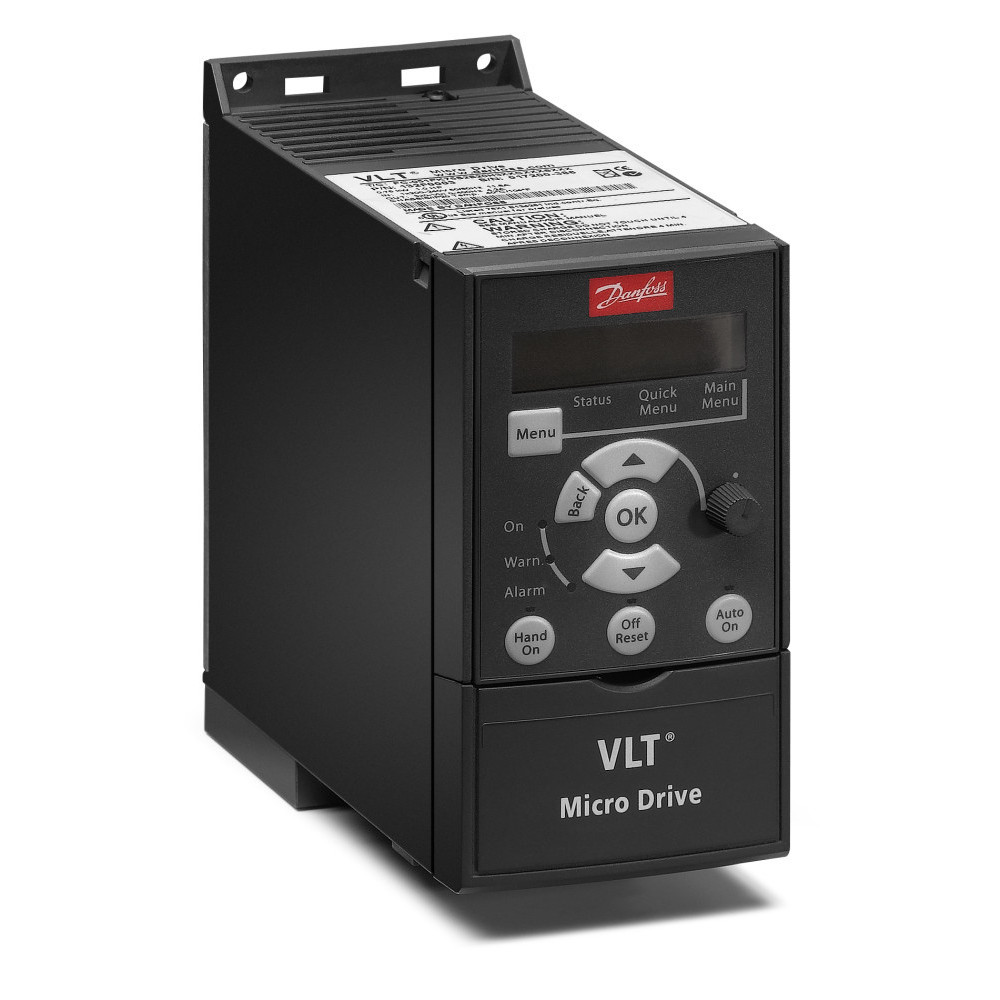

Danfoss 132F0001 0.18kW A inverter drive , Single Phase 200...240V AC supply (no keypad)
Danfoss Inverter Drive
Gross weight: 2.143 Kilogram
Net weight: 1.059 Kilogram
Volume: 4.612 Liter
Product View (Switch): GLBL Global (Standard)
Product Group: FC-VLT® Micro Drive FC-
Micro Drive Series: 05151
Power Rating: PK180.18 KW / 0.25 HP
Phase: S Single phase
Mains Voltage: 2200 - 240 VAC
Enclosure: E20(E20) IP20 / Chassis
RFI Filter: H3 (H3) RFI Class A1/B (C1)
Brake - Safe Stop: X No brake chopper
LCP: X No Loc. Cont. Panel
Coating PCB: C Coated PCB
Mains Option: X No Mains Option
Adaptation A: X Standard Cable Entries
Adaptation B: X No adaptation
Software Release: SXXX Latest release std. SW.
Frame Size: M1M1-FRAME
Typecode Part 1: FC-051PK18S2E20H3XXCXXXSXXX
Modelcode01: FC-051PK18S2E20H3XXCXXXSXXX
Danfoss Inverter Drive 132F0001 is a 0.18kW, A, Single Phase inverter drive with a 200...240V AC supply. As part of the VLT Micro Drive range, this AC drive is extremely small, and side by side mounting without derating is possible thanks to the book style design, making it suited to most industrial and HVAC applications. Like the rest of the VLT range, the 132F0001 0.18kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an approved Danfoss service partner AFi are able to offer set up support for the 132F0001 as well as the rest of the VLT Micro Drive range. We can also offer 132F0001 repairs
132F0001 Specifications
| AC Drive Application | General Purpose |
| AC Drive Communications | Modbus Comms |
| AC Drive Filter | Industrial |
| AC Drive Heavy Duty Output (kw) | 0.18 |
| AC Drive Input Voltage (VAC) | 200...240V AC |
| AC Drive Keypad | No |
| AC Drive Logic | Positive, Negative |
| AC Drive Loop | Open |
| AC Drive Normal Duty Output (kw) | 0.18 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Digital Inputs | 5 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Phase | Single Phase |
| AC Drive Protection | IP20 |
| AC Drive Pulse Input | 1 |
