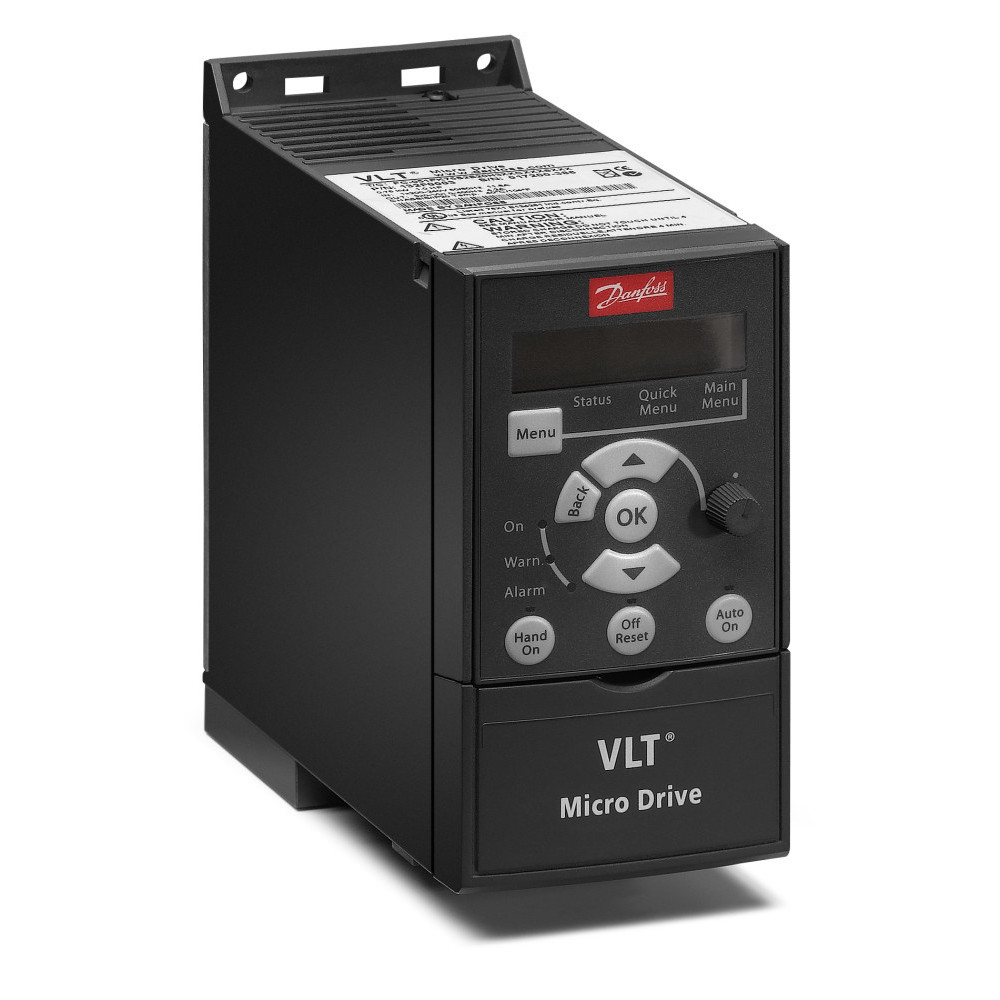

Image shown is a representation only. Actual product may vary
Danfoss 132F0003 VSD; 1ph 200...240VAC; 0.75kW, 1HP, 4.2A
The 132F0003 is a 0.75kW, 4.6A, Single Phase AC drive with a 200...240V AC supply. As part of the VLT Micro Drive range, this drive is incredibly small, and the book style design enables side by side mounting without derating, making it ideal for many industrial and HVAC applications. Like the rest of the VLT range, the 132F0003 0.75kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an authorised Danfoss service partner AFi are able to offer comissioning support for the 132F0003 as well as the rest of the VLT Micro Drive family. We can also offer 132F0003 repairs.
132F0003 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 200...240 |
| Heavy Duty Power Output (kW) | 0.75 |
| Heavy Duty Power Output (HP) | 1 |
| Heavy Duty Output Current (A) | 4.2 |
| Normal Duty Power Output (kW) | 0.75 |
| Normal Duty Power Output (HP) | 1 |
| Normal Duty Output Current (A) | 4.2 |
| Input Phase | Single |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | No |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 150 |
| Width (mm) | 70 |
| Depth (mm) | 148 |
| Weight (kg) | 1.1 |
