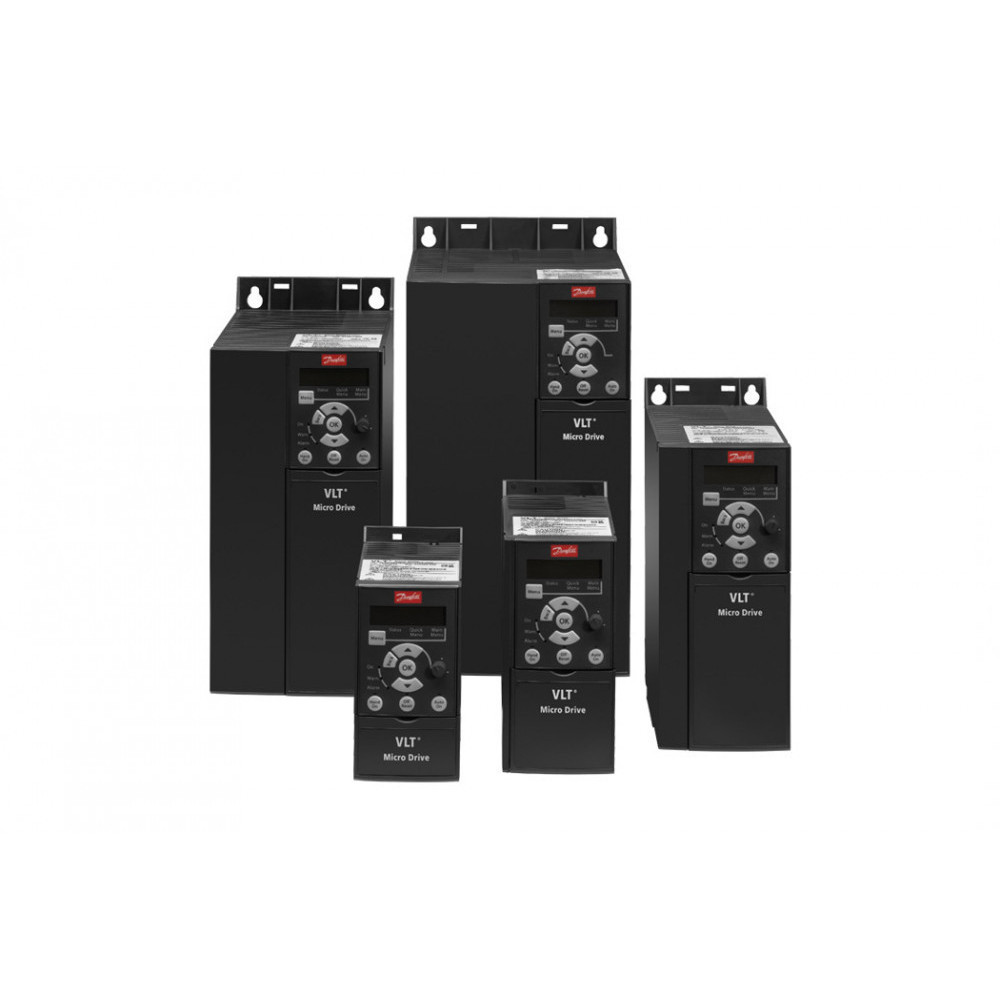

Image shown is a representation only. Actual product may vary
132F0005 1.5kW 7.5 A inverter drive, Single Phase 200...240V AC supply (no keypad)
The 132F0005 is a 1.5kW, 7.5A, Single Phase variable speed drive with a 200...240V AC supply. As part of the VLT Micro Drive series, this inverter drive is incredibly compact, and the book style design enables side by side mounting without derating, making it perfect for many industrial and HVAC applications. Like the rest of the VLT range, the 132F0005 1.5kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an approved Danfoss repair partner AFi are able to offer set up support for the 132F0005 as well as the rest of the VLT Micro Drive range. We can also offer 132F0005 repairs.
132F0005 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 200...240V AC |
| Heavy Duty Power Output (kW) | 1.5 |
| Heavy Duty Output Current (A) | 7.5 |
| Normal Duty Power Output (kW) | 1.5 |
| Normal Duty Output Current (A) | 7.5 |
| Input Phase | Single Phase |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Drive Keypad | No |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus Comms |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Height (mm) | 176 |
| Width (mm) | 75 |
