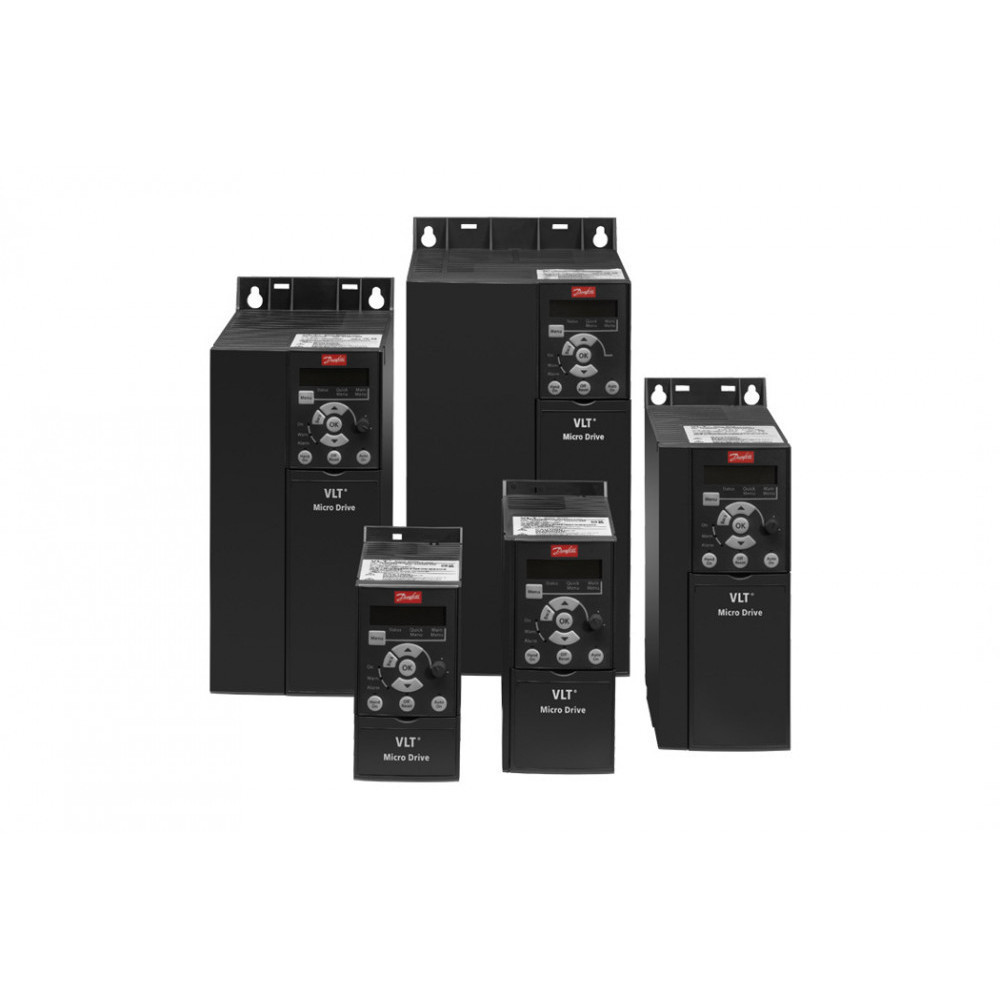

Image shown is a representation only. Actual product may vary
Danfoss 132F0007 VSD; 1ph 200...240VAC; 2.2kW, 3HP, 9.6A
The 132F0007 is a 2.2kW, 10.6A, Single Phase variable speed drive with a 200...240V AC supply. As part of the VLT Micro Drive series, this variable speed drive is exceptionally compact, and the book style design enables side by side mounting without derating, making it ideal for most industrial and HVAC applications. Like the rest of the VLT range, the 132F0007 2.2kW AC drive is built with quality and reliability in mind as well as ease of use and great functionality.
As an approved Danfoss service center AFi are able to offer set up support for the 132F0007 as well as the rest of the VLT Micro Drive range. We can also offer 132F0007 repairs.
132F0007 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 200...240 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 9.6 |
| Normal Duty Power Output (kW) | 2.2 |
| Normal Duty Power Output (HP) | 3 |
| Normal Duty Output Current (A) | 9.6 |
| Input Phase | Single |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | Yes |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 239 |
| Width (mm) | 90 |
| Depth (mm) | 194 |
| Weight (kg) | 3 |
