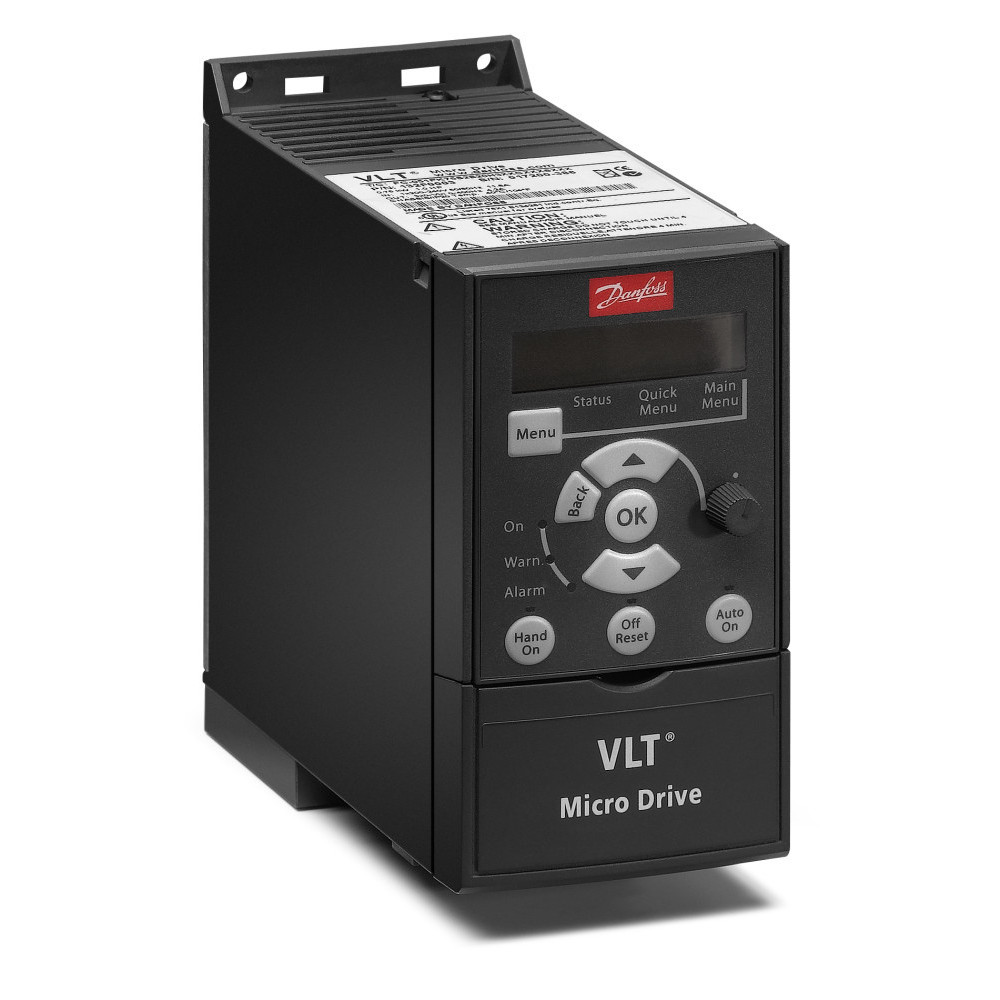

Danfoss FC51 132F0010 3ph 200...240VAC 0.75kW 1HP 4.2A VSD
The 132F0010 is a 0.75kW, 4.6A, Three Phase variable speed drive with a 200...240V AC supply. As part of the VLT Micro Drive family, this AC drive is incredibly small, and side by side mounting without derating is possible thanks to the book style design, making it perfect for many industrial and HVAC applications. Like the rest of the VLT range, the 132F0010 0.75kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an authorised Danfoss service partner AFi are able to offer set up support for the 132F0010 as well as the rest of the VLT Micro Drive range. We can also offer 132F0010 repairs.
132F0010 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 200...240 |
| Heavy Duty Power Output (kW) | 0.75 |
| Heavy Duty Power Output (HP) | 1 |
| Heavy Duty Output Current (A) | 4.2 |
| Normal Duty Power Output (kW) | 0.75 |
| Normal Duty Power Output (HP) | 1 |
| Normal Duty Output Current (A) | 4.2 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | No |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 150 |
| Width (mm) | 70 |
| Depth (mm) | 148 |
| Weight (kg) | 1.1 |
