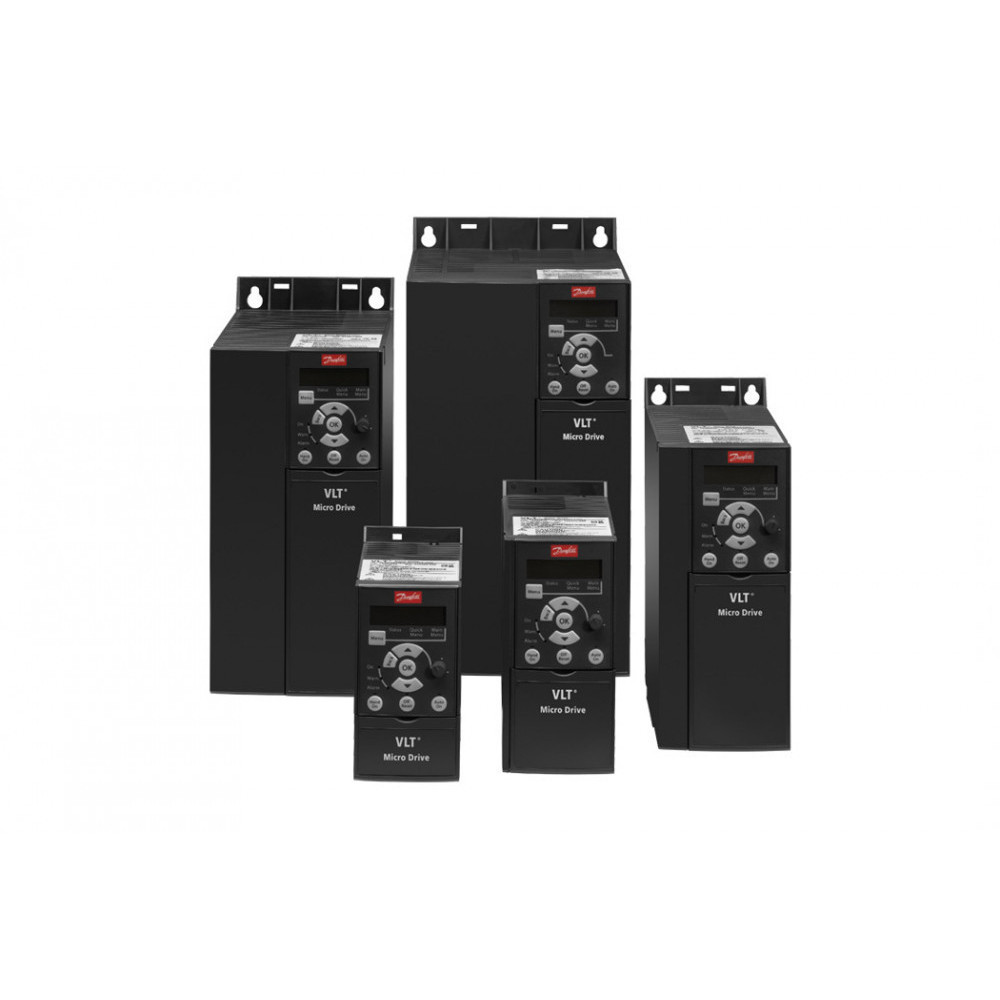

Image shown is a representation only. Actual product may vary
Danfoss FC51 132F0012 3ph 200...240VAC 1.5kW 2HP 6.8A AC Drive
The 132F0012 is a 1.5kW, 7.5A, Three Phase AC drive with a 200...240V AC supply. As part of the VLT Micro Drive series, this AC drive is extremely small, and the book style design enables side by side mounting without derating, making it suited to most industrial and HVAC applications. Like the rest of the VLT family, the 132F0012 1.5kW AC drive is built with quality and reliability in mind as well as ease of use and great functionality.
As an authorised Danfoss service center AFi are able to offer set up support for the 132F0012 as well as the rest of the VLT Micro Drive family. We can also offer 132F0012 repairs.
132F0012 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 200...240 |
| Heavy Duty Power Output (kW) | 1.5 |
| Heavy Duty Power Output (HP) | 2 |
| Heavy Duty Output Current (A) | 6.8 |
| Normal Duty Power Output (kW) | 1.5 |
| Normal Duty Power Output (HP) | 2 |
| Normal Duty Output Current (A) | 6.8 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | Yes |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 176 |
| Width (mm) | 75 |
| Depth (mm) | 168 |
| Weight (kg) | 1.6 |
