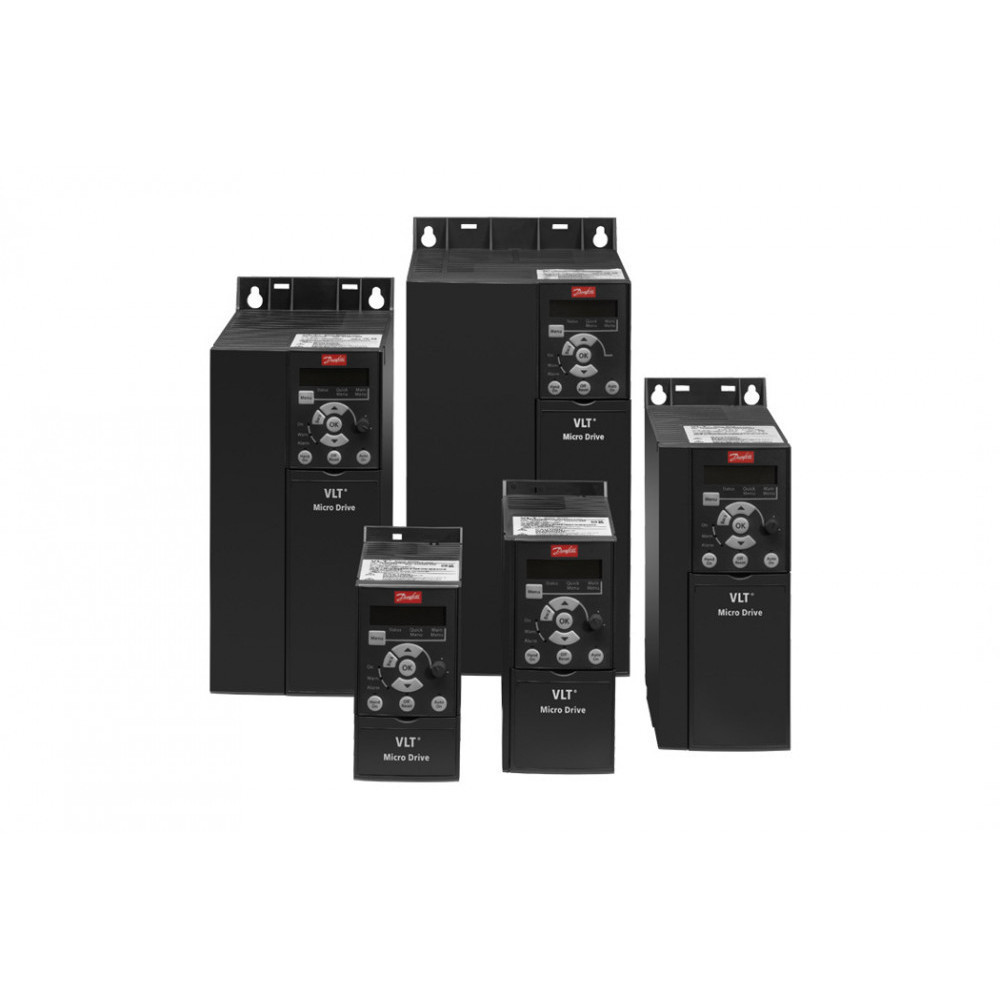

Image shown is a representation only. Actual product may vary
Danfoss FC51 132F0014 3ph 200...240VAC 2.2kW 3HP 9.6A VFD
The 132F0014 is a 2.2kW, 10.6A, Three Phase variable speed drive with a 200...240V AC supply. As part of the VLT Micro Drive series, this variable speed drive is incredibly compact, and the book style design enables side by side mounting without derating, making it suited to most industrial and HVAC applications. Like the rest of the VLT family, the 132F0014 2.2kW AC drive is built with quality and reliability in mind as well as ease of use and great functionality.
As an approved Danfoss service partner AFi are able to offer set up support for the 132F0014 as well as the rest of the VLT Micro Drive range. We can also offer 132F0014 repairs.
132F0014 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 200...240 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 9.6 |
| Normal Duty Power Output (kW) | 2.2 |
| Normal Duty Power Output (HP) | 3 |
| Normal Duty Output Current (A) | 9.6 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | Yes |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 239 |
| Width (mm) | 90 |
| Depth (mm) | 194 |
| Weight (kg) | 3 |
