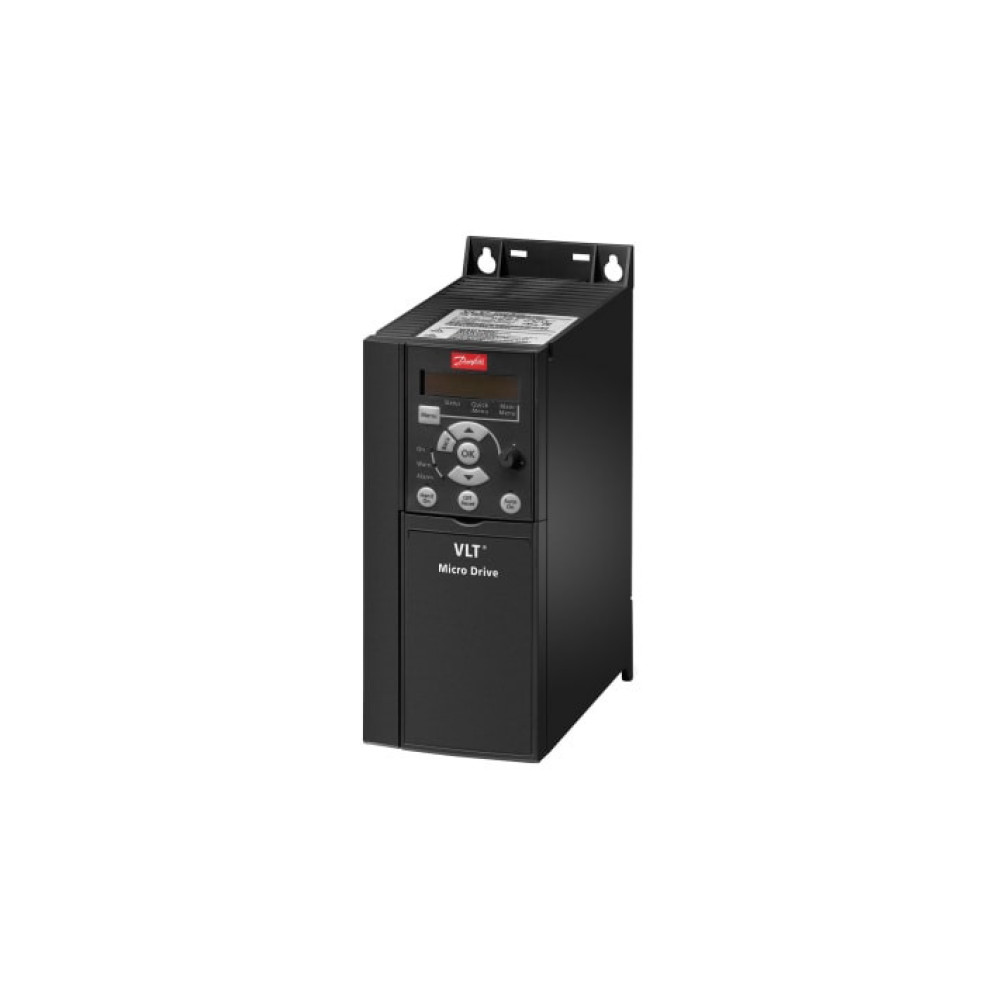

Image shown is a representation only. Actual product may vary
132F0024 3kW 7.2 A inverter drive , Three Phase 380...480V AC supply (no keypad)
The 132F0024 is a 3kW, 7.2A, Three Phase AC drive with a 380...480V AC supply. As part of the VLT Micro Drive family, this drive is exceptionally small, and side by side mounting without derating is possible thanks to the book style design, making it ideal for many industrial and HVAC applications. Like the rest of the VLT family, the 132F0024 3kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an authorised Danfoss service center AFi are able to offer comissioning support for the 132F0024 as well as the rest of the VLT Micro Drive family. We can also offer 132F0024 repairs.
132F0024 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480V AC |
| Heavy Duty Power Output (kW) | 3 |
| Heavy Duty Output Current (A) | 7.2 |
| Normal Duty Power Output (kW) | 3 |
| Normal Duty Output Current (A) | 7.2 |
| Input Phase | Three Phase |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Drive Keypad | No |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus Comms |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Width (mm) | 90 |
