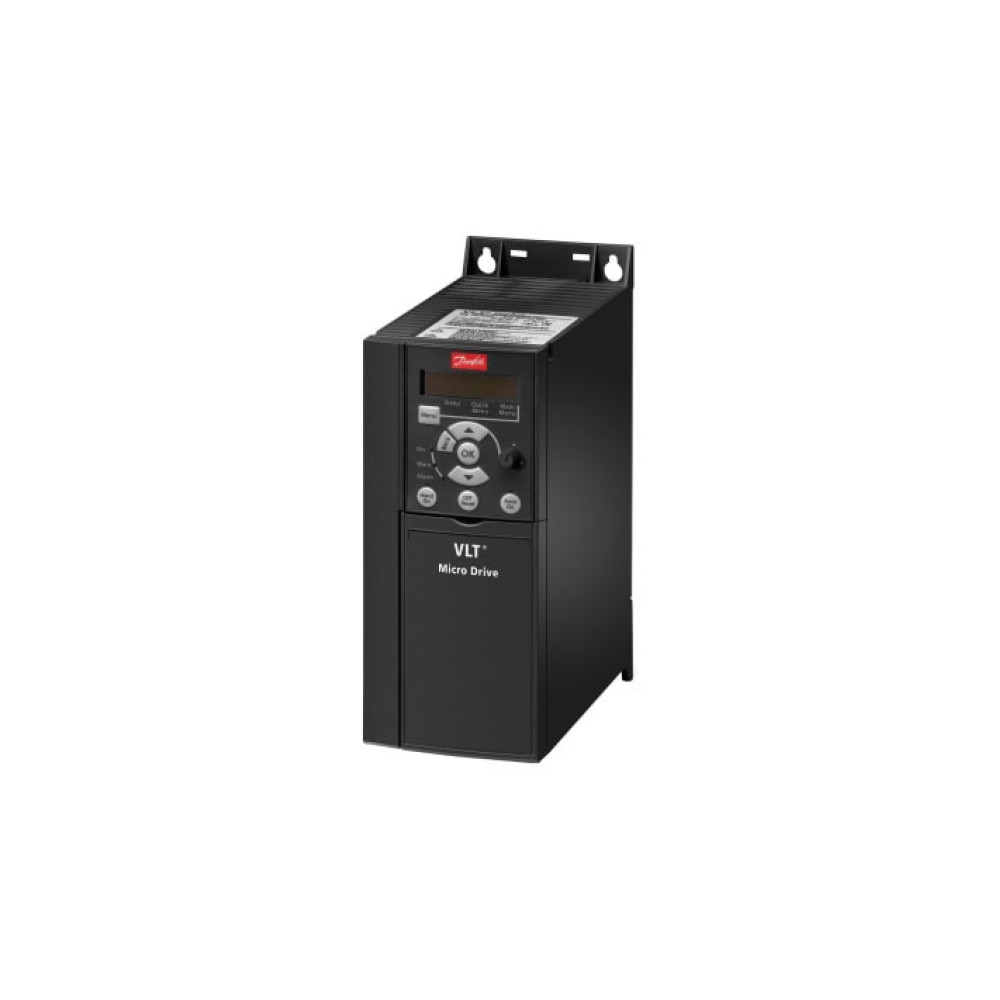

Image shown is a representation only. Actual product may vary
Danfoss 132F0028 VSD; 3ph 380...480VAC; 5.5kW, 7.5HP, 11A
The 132F0028 is a 5.5kW, 13A, Three Phase AC drive with a 380...480V AC supply. As part of the VLT Micro Drive family, this inverter drive is incredibly compact, and side by side mounting without derating is possible thanks to the book style design, making it perfect for many industrial and HVAC applications. Like the rest of the VLT range, the 132F0028 5.5kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an authorised Danfoss service center AFi are able to offer comissioning support for the 132F0028 as well as the rest of the VLT Micro Drive range. We can also offer 132F0028 repairs.
132F0028 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 5.5 |
| Heavy Duty Power Output (HP) | 7.5 |
| Heavy Duty Output Current (A) | 11 |
| Normal Duty Power Output (kW) | 5.5 |
| Normal Duty Power Output (HP) | 7.5 |
| Normal Duty Output Current (A) | 11 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | Yes |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 239 |
| Width (mm) | 90 |
| Depth (mm) | 194 |
| Weight (kg) | 3 |
