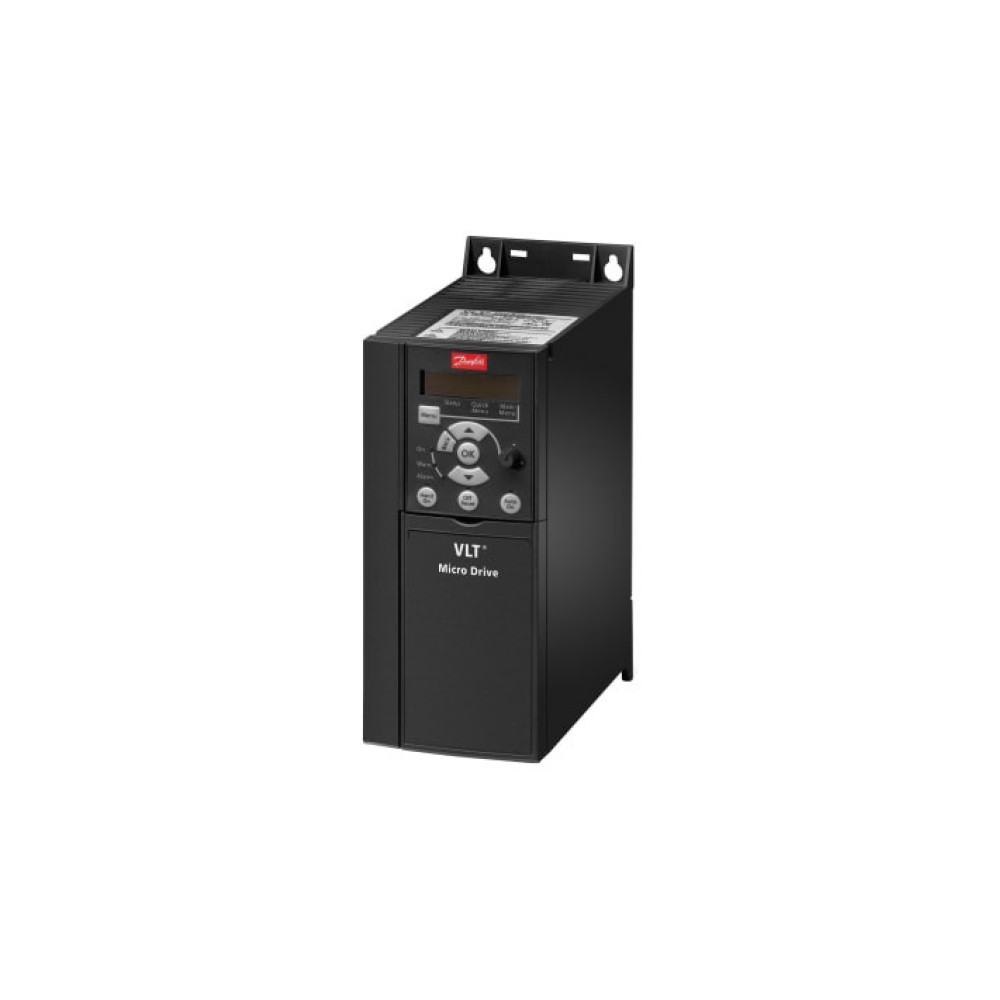

Image shown is a representation only. Actual product may vary
Danfoss 132F0030 Inverter; 3ph 380...480VAC; 7.5kW, 10HP, 14A
The 132F0030 is a 7.5kW, 16A, Three Phase variable speed drive with a 380...480V AC supply. As part of the VLT Micro Drive series, this inverter drive is incredibly small, and the book style design enables side by side mounting without derating, making it ideal for many industrial and HVAC applications. Like the rest of the VLT range, the 132F0030 7.5kW AC drive is built with quality and reliability in mind as well as ease of use and great functionality.
As an authorised Danfoss repair center AFi are able to offer set up support for the 132F0030 as well as the rest of the VLT Micro Drive range. We can also offer 132F0030 repairs.
132F0030 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 7.5 |
| Heavy Duty Power Output (HP) | 10 |
| Heavy Duty Output Current (A) | 14 |
| Normal Duty Power Output (kW) | 7.5 |
| Normal Duty Power Output (HP) | 10 |
| Normal Duty Output Current (A) | 14 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | Yes |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 239 |
| Width (mm) | 90 |
| Depth (mm) | 194 |
| Weight (kg) | 3 |
