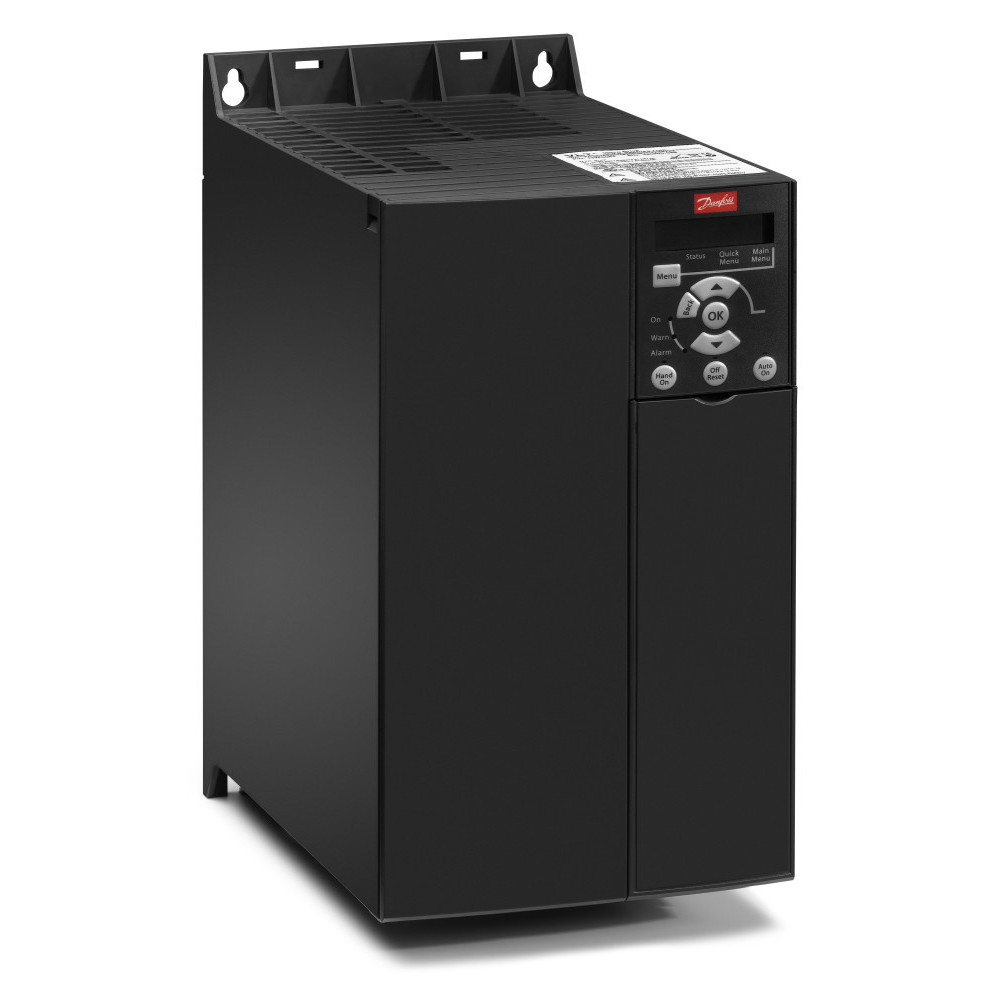

Image shown is a representation only. Actual product may vary
Danfoss FC51 132F0058 3ph 380...480VAC 11kW 15HP 21A Inverter
The 132F0058 is a 11kW, 24A, Three Phase variable speed drive with a 380...480V AC supply. As part of the VLT Micro Drive family, this AC drive is incredibly compact, and side by side mounting without derating is possible thanks to the book style design, making it perfect for most industrial and HVAC applications. Like the rest of the VLT family, the 132F0058 11kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an authorised Danfoss repair center AFi are able to offer comissioning support for the 132F0058 as well as the rest of the VLT Micro Drive family. We can also offer 132F0058 repairs.
132F0058 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 11 |
| Heavy Duty Power Output (HP) | 15 |
| Heavy Duty Output Current (A) | 21 |
| Normal Duty Power Output (kW) | 11 |
| Normal Duty Power Output (HP) | 15 |
| Normal Duty Output Current (A) | 21 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Class A1/B (C1/C2) |
| Drive Keypad | No |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Brake Chopper | Yes |
| Conformal Coating | Yes |
| Safe Torque Off | No |
| Height (mm) | 292 |
| Width (mm) | 125 |
| Depth (mm) | 241 |
| Weight (kg) | 6 |
