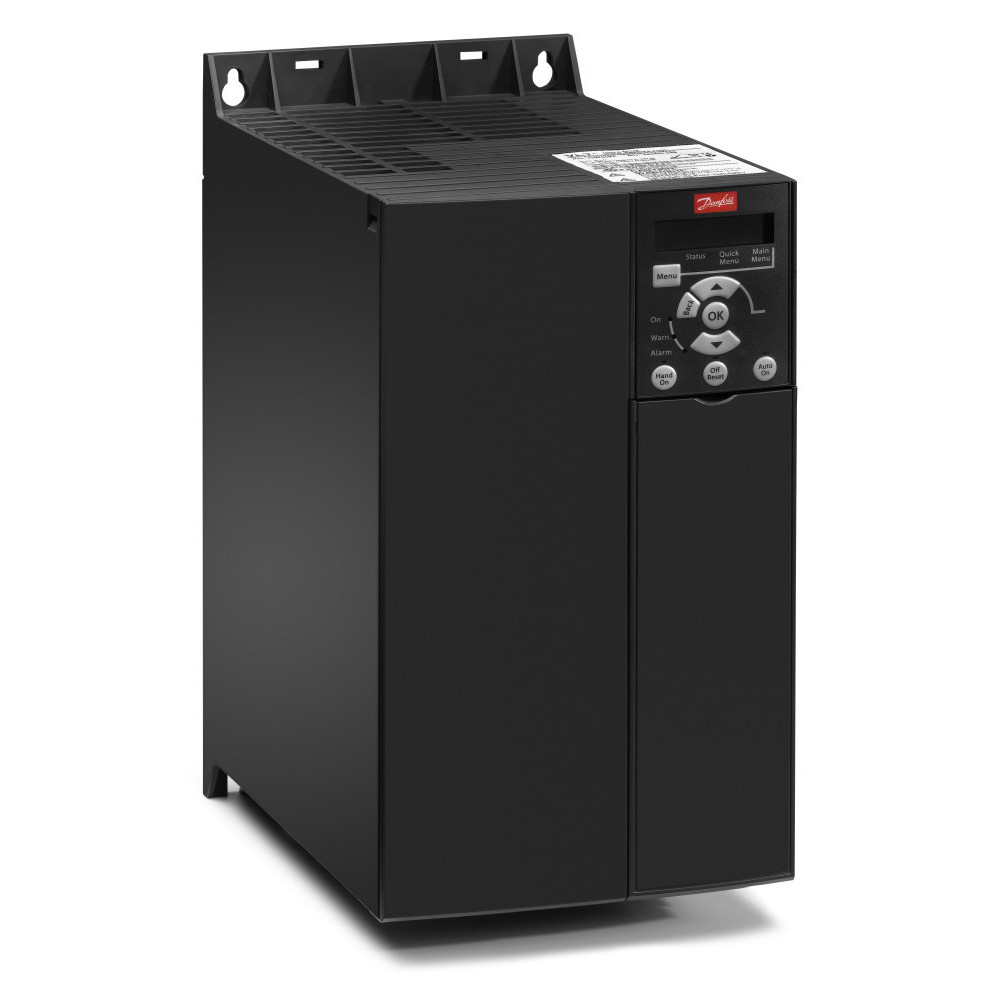

132F0060 Danfoss

The 132F0060 (also known as the FC-051P18KT4E20H3BXCXXXSXXX) is an inverter from Danfoss's VLT Micro Drive FC-051 range /w/ a 3ph 380...480VAC supply and a single-duty 18.5kW, 25HP, 34A output.

As a member of the VLT Micro Drive FC-051 line, the 132F0060 occupies a compact footprint and, with its book style design, is suitable for side-by-side installation without derating, making it suitable for most industrial and HVAC applications.

Terminal Information

Logic can be switched between sink and source using physical DIP switches; PNP for source, NPN for sink.
5x DI (0...24VDC nominal, 28VDC max. allowable; OFF @ <5VDC and ON @ >10VDC in source mode; OFF @ >19VDC, ON @ <14VDC in sink mode; Approx. 4000Ω input resistance).
2x AI (1x voltage, 1x voltage/current; 0...10VDC voltage input, 20VDC max. allowable, approx. 10kΩ input resistance; 0/4...20mA current input, 30mA max. allowable, approx. 200Ω input resistance).
1x AQ (0/4...20mA current range; 500Ω max. resistance to common; 17VDC max. voltage).
1x Relay contact (Configurable as 01-02 (make) & 01-03 (break); 2A resistive, 0.2A inductive @ 250VAC, 2A resistive @ 30VDC, 0.1A inductive @ 24VDC for make; 2A resistive, 0.2A inductive @ 250VAC, 2A resistive @ 30VDC for break).
Note: One digital input can be configured as an encoder/pulse input, accepting pulse frequencies from 20Hz to 5kHz.

Physical Information

IP20 rated, book style enclosure; 335mm x 165mm x 248mm /w/ a net weight of 9.5kg. Class A1/B (C1/C2) filter fitted.
Rated for operation between 0°...+40°C @ 5...95% relative humidity, non-condensing.
Suitable for altitudes of up to 1000m without derating, and up to 1000m with derating @ 1%/Δ100m.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 132F0060, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your AC drive.

Any Questions?

If you require any assistance or have any questions about whether this 18.5kW 132F0060 is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your requests, and can ship drives to you quickly.
