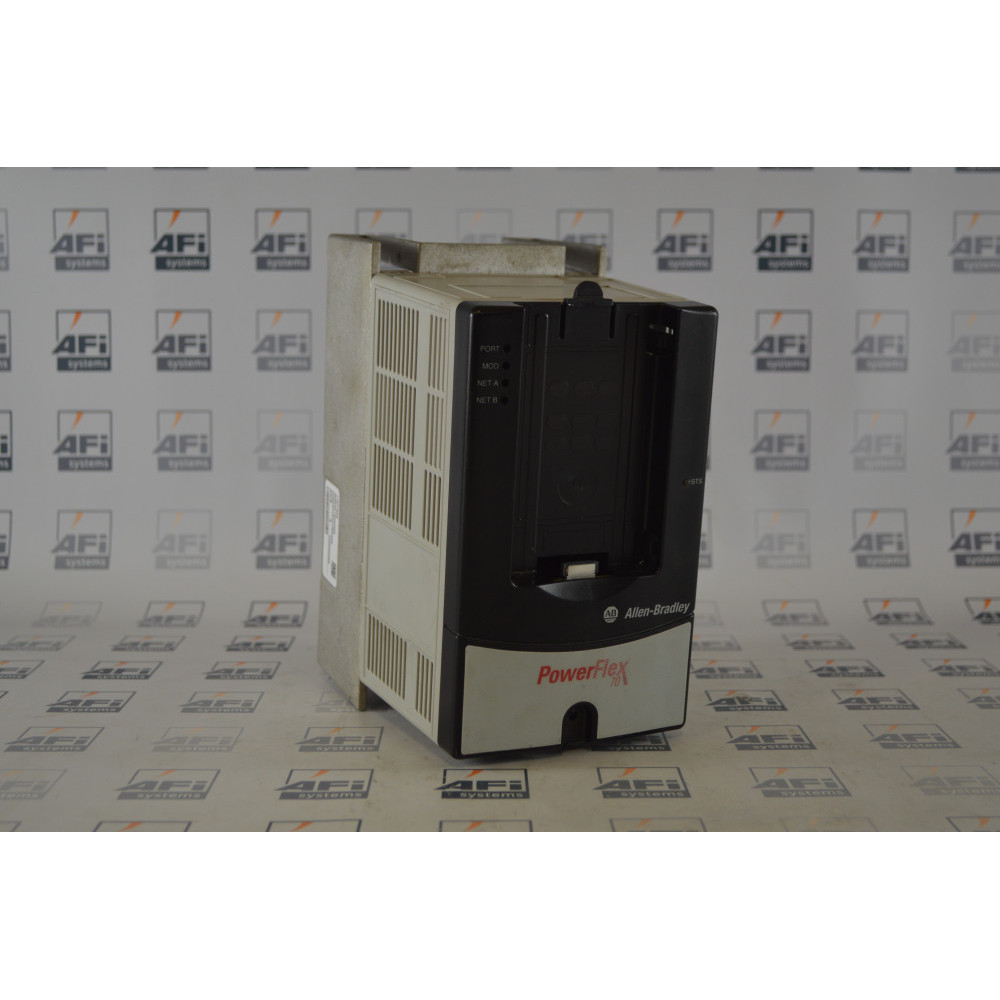

Image shown is a representation only. Actual product may vary -
-
-
-
Allen-Bradley 20AD3P4A0AYNNNC0 PowerFlex 70 Inverter
The 20AD3P4A0AYNNNC0, part of the PowerFlex 70 range by Allen-Bradley, is an inverter /w 3ph 380...480VAC supply and 1.1kW, 1.5Hp, 3.4A output.
Terminals include; 6x DI, 2x AI, 2x DQ, 1x AQ. No brake resistor, no communications module, no feedback and no EMC filter fitted. Brake IGBT installed.
IP20, NEMA 1 rated enclosure, frame size A; 226mm x 122mm x 180mm (HxWxD), net weight of 2.7kg.
20AD3P4A0AYNNNC0 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 1.1 |
| Heavy Duty Power Output (HP) | 1.5 |
| Heavy Duty Output Current (A) | 3.4 |
| Normal Duty Power Output (kW) | 1.5 |
| Normal Duty Power Output (HP) | 2 |
| Normal Duty Output Current (A) | 3.4 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| NEMA Rating | NEMA 1 |
| Drive Loop | Closed |
| Drive Logic | Positive |
| No. of Digital Inputs | 6 |
| No. of Analog Inputs | 2 |
| No. of Digital Outputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 2 |
| Height (mm) | 226 |
| Width (mm) | 122 |
| Depth (mm) | 180 |
| Weight (kg) | 2.7 |
