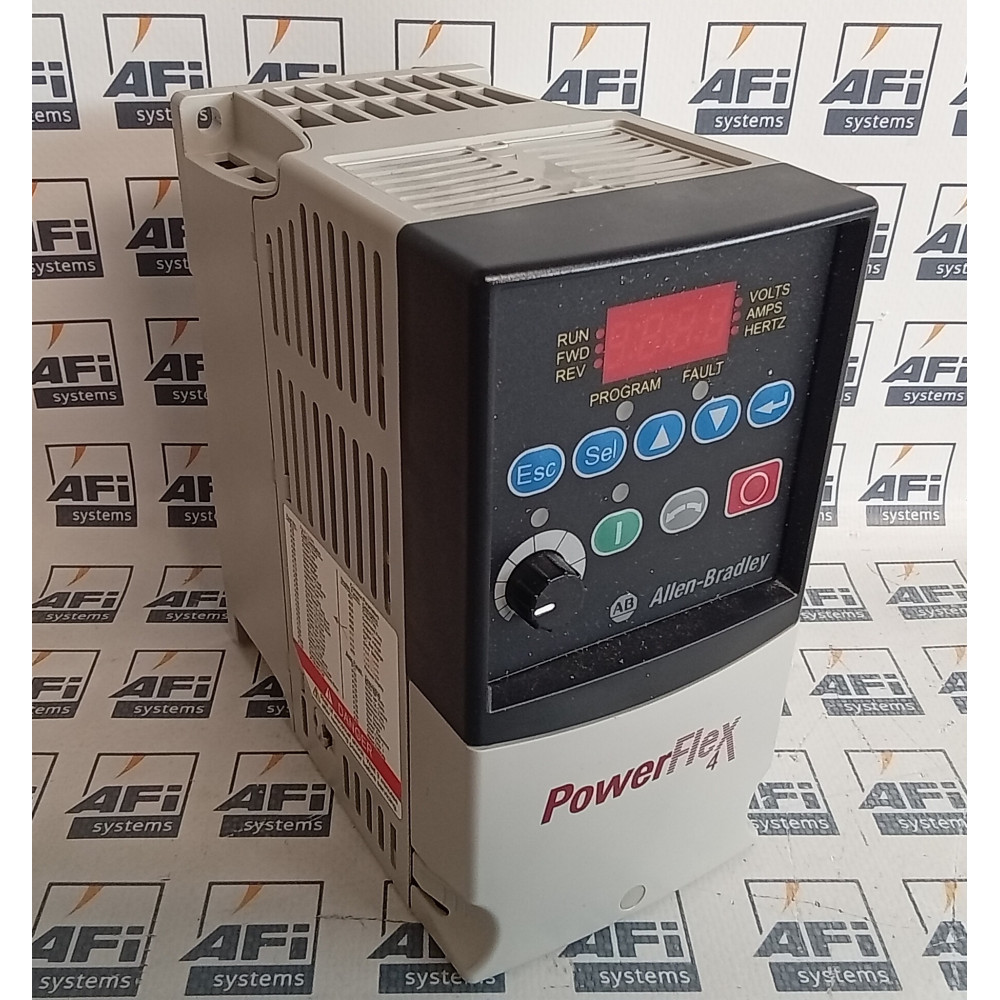

Allen Bradley PowerFlex 22A-B4P5N104 AC Inverter Drive
The 22A-B4P5N104, part of the PowerFlex 4 range, is an inverter by Allen-Bradley /w/ 3ph 200...240VAC ±10% supply and 0.75kW, 1HP, 4.5A output.
IP20 rated enclosure, frame size A; 185mm x 80mm x 136mm (HxWxD), net weight of 1.4kg.
AFi Systems are able to both supply and repair this drive and also other drives from the PowerFlex 4 range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
22A-B4P5N104 Specifications
| Input Voltage (VAC) | 200...240 |
| Heavy Duty Power Output (kW) | 0.75 |
| Heavy Duty Power Output (HP) | 1 |
| Heavy Duty Output Current (A) | 4.5 |
| Input Phase | Three Phase |
| Ingress Protection Rating | IP20 |
| Drive Keypad | Yes |
| Drive Loop | Open |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 1 |
| No. of Relay Outputs | 1 |
| Height (mm) | 185 |
| Width (mm) | 136 |
| Depth (mm) | 80 |
| Weight (kg) | 1.4 |
