Image shown is a representation only. Actual product may vary -
-
-
-
Allen Bradley PowerFlex 22A-D2P3N104 AC Inverter Driv

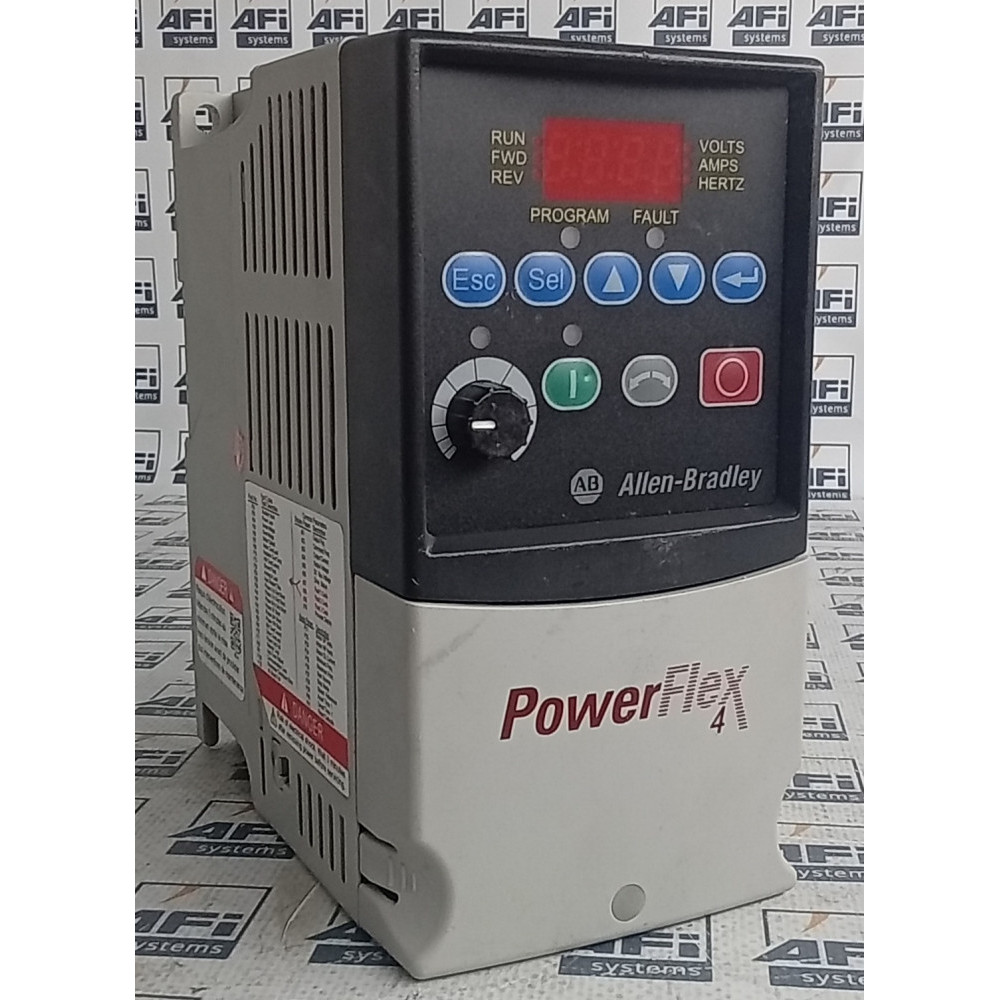

Allen Bradley 22A-D2P3N104 is a 3 phase, 0.75kW, 2.3 amp, 480V AC inverter drive from the PowerFlex 4 range.
AFi Systems are able to both supply and repair this drive and also other drives from within the PowerFlex 4 range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
22A-D2P3N104 Specifications
| Input Voltage (VAC) | 380...480V AC |
| Heavy Duty Power Output (kW) | 1.1 |
| Heavy Duty Power Output (HP) | 1.0 |
| Heavy Duty Output Current (A) | 2.3 |
| Normal Duty Output Current (A) | 2.3 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | No Filter |
| Drive Keypad | Yes |
| Drive Loop | Open |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 1 |
| No. of Relay Outputs | 1 |
| Weight (kg) | a |
Tags: 22A-D2P3N104
