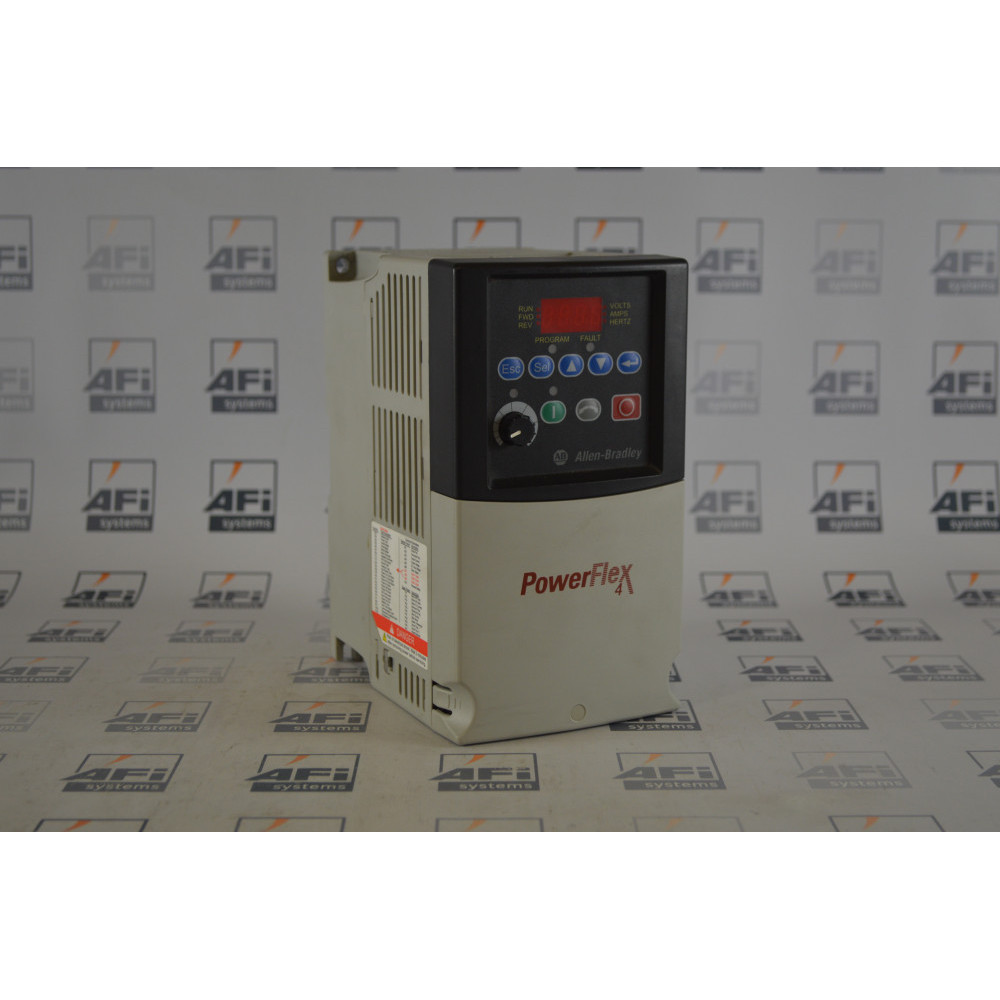

Image shown is a representation only. Actual product may vary -
-
-
-
Allen Bradley 22A-D8P7N104 3.7kW PowerFlex 4 Series AC Inverter Drive
The 22A-D8P7N104 is a PowerFlex 4 series inverter by Allen-Bradley /w/ 3ph 380...480VAC ±10% supply and 3.7kW, 5HP, 8.7A output.
IP20 rated enclosure, frame size B; 213mm x 100mm x 136mm (HxWxD), net weight of 2.2kg.
AFi Systems are able to both supply and repair this drive and also other drives from the PowerFlex 4 range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
22A-D8P7N104 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 3.7 |
| Heavy Duty Power Output (HP) | 5 |
| Heavy Duty Output Current (A) | 8.7 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | No Filter |
| Drive Keypad | Yes |
| Drive Loop | Open |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 1 |
| No. of Relay Outputs | 1 |
| Height (mm) | 213 |
| Width (mm) | 100 |
| Depth (mm) | 136 |
| Weight (kg) | 2.2 |
