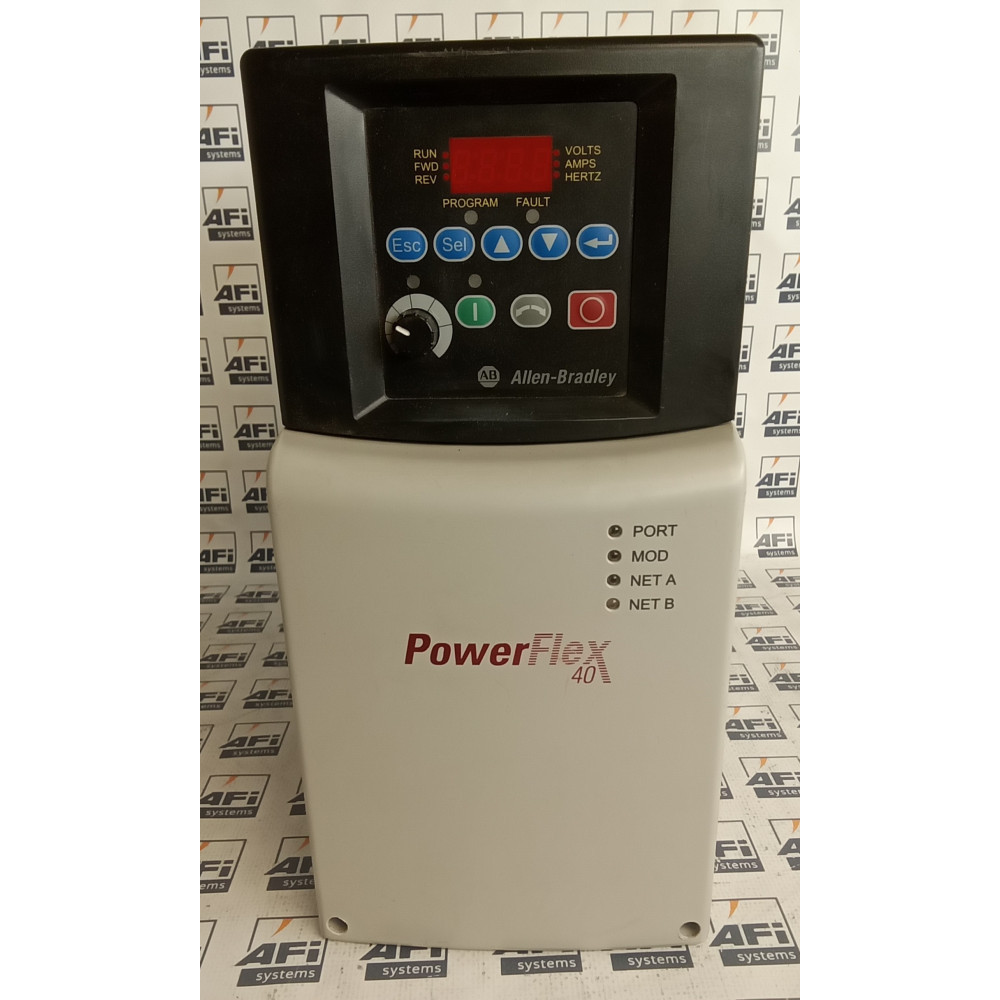

Image shown is a representation only. Actual product may vary -
-
-
-
Allen Bradley PowerFlex 40 Series 22B-D012N104 AC Inverter Drive
The 22B-D012N104 is a PowerFlex 40 series drive by Allen-Bradley /w/ 3ph 380...480VAC supply and 5.5kW, 7.5HP, 12A output.
IP20 rated enclosure, frame size C; 260mm x 130mm x 180mm (HxWxD), net weight of 4.3kg.
AFi systems are able to both supply and repair this drive and also other drives from within the PowerFlex 40 range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
22B-D012N104 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 5.5 |
| Heavy Duty Power Output (HP) | 7.5 |
| Heavy Duty Output Current (A) | 12 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | None |
| No. of Digital Inputs | 7 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Digital Outputs | 2 |
| No. of Relay Outputs | 1 |
| Height (mm) | 260 |
| Width (mm) | 130 |
| Depth (mm) | 180 |
| Weight (kg) | 4.3 |
