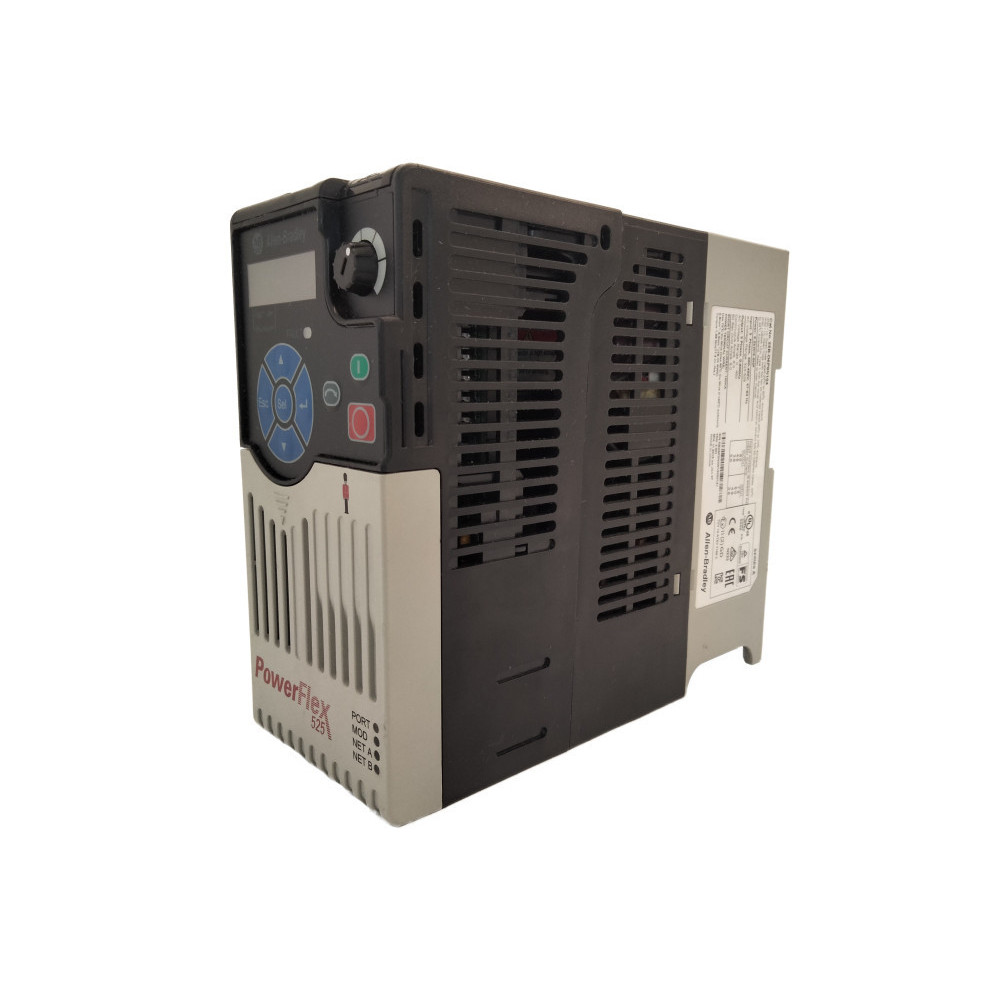

Allen Bradley PowerFlex 25B-D6P0N104 AC Inverter Drive
The 25B-D6P0N104, part of the PowerFlex 525 range by Allen-Bradley, is an AC drive /w/ 3ph 380..480VAC supply -15%...+10% @ 50/60Hz and 2.2kW, 3HP, 6A output.
Terminals include: 7x DI (6x conf.), 2x AI, 2x DQ, 1x AQ and 2x relay contacts.
IP20 rated enclosure, frame size A: 152mm x 72mm x 172mm (HxWxD), net weight of 1.1kg.
AFi Systems are able to both supply and repair this drive and also other drives from within the PowerFlex 525 range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
25B-D6P0N104 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 6 |
| Normal Duty Power Output (kW) | 2.2 |
| Normal Duty Power Output (HP) | 3 |
| Normal Duty Output Current (A) | 6 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| Drive Keypad | Yes |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| No. of Digital Inputs | 7 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Digital Outputs | 2 |
| No. of Relay Outputs | 2 |
| PTC/KTY Input | 1 |
| Height (mm) | 152 |
| Width (mm) | 72 |
| Depth (mm) | 172 |
| Weight (kg) | 1.1 |
