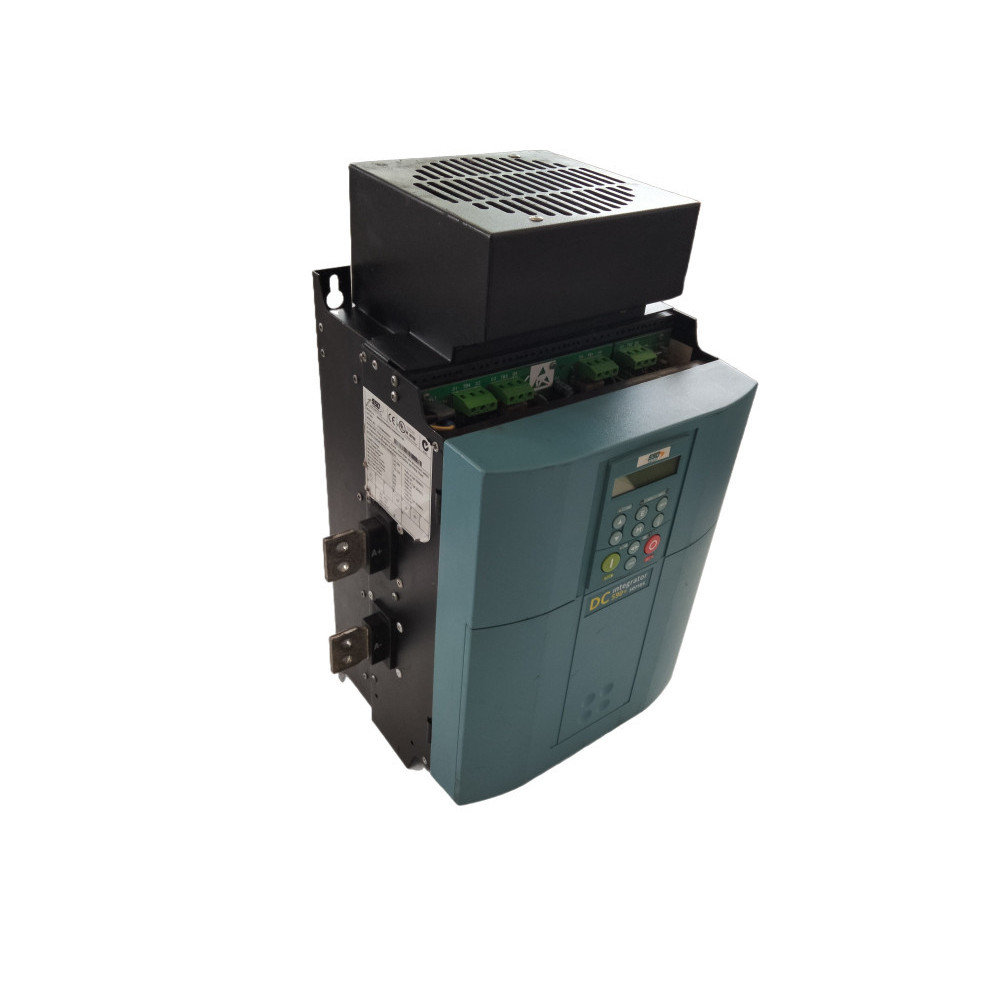

Image shown is a representation only. Actual product may vary -
-
-
-
Parker 590P/0270/500/0011/UK/AN/0/115/0 DC Drive
590P/0270/500/0011/UK/AN/0/115/0 4Q DC Thyristor Drive by Parker /w/ 3ph 220...500VAC Supply @ 50/60Hz and 112kW, 150HP, 270A Input.
Terminals Include 5x AI (4x Conf.), 3x AQ (2x Conf.), 10x DI (5x Conf., 2 as Encoder Inputs for Line Encoder) and 3x DQ (3x Conf.).
Rated for 40°C Ambient. Requires 150mm Ventilation Above, 100mm Below and No Side Ventilation. 840Wmax Heat Loss.
210mm Deep x 300mm Wide x 500mm High /w/ 20kg Weight. Panel Mount /w/ M6 Screw Fixings on 400mm x 200mm Centers.
590P/0270/500/0011/UK/AN/0/115/0 Specifications
| DC Drive Input Voltage (VAC) | 220...500 |
| DC Drive Output (Amps) | 270 |
| DC Drive Power (KW) | 112 |
| DC Drive Power (HP) | 150 |
| DC Drive Phase Input (Single/Three) | Three |
| DC Drive Control Voltage (VDC) | 115 |
