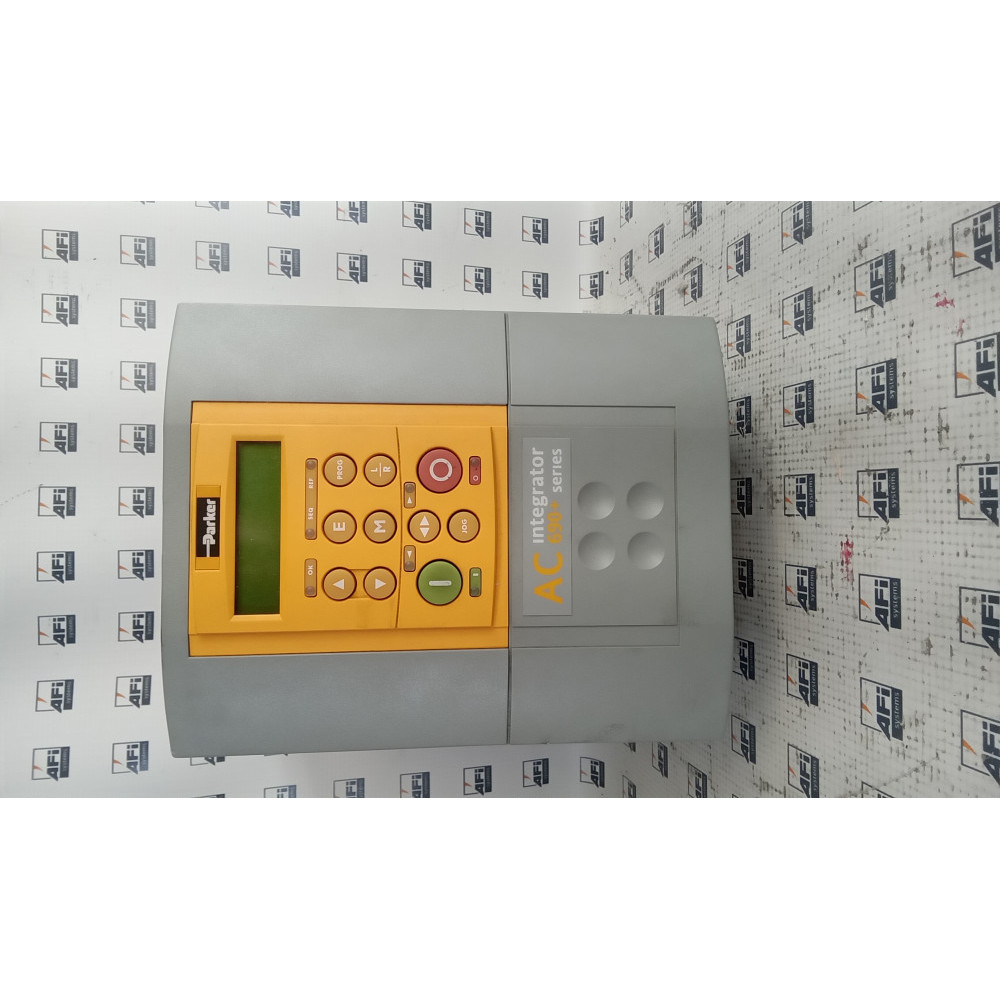

Image shown is a representation only. Actual product may vary -
-
Parker 690-431250B0-BFSP00-A000 690+ Series AC Drive
The 690-431250B0-BFSP00-A000 690+ Series AC Drive by Parker /w/ 3ph 380...460 VAC Input and 0.75kW, 1HP, 2.5A Output.
Hosts 8x DI, 4x AI, 3x DQ (Relay Contacts) and 3x AQ, rated for 40°C Ambient with 80mm Ventilation Space Above and Below and 15mm Ventilation Space at Each Side /w/ 70W Heat Loss at Maximum Output.
690-431250B0-BFSP00-A000 Specifications
| Input Voltage (VAC) | 380...460 |
| Heavy Duty Power Output (kW) | 0.75 |
| Heavy Duty Power Output (HP) | 1 |
| Heavy Duty Output Current (A) | 2.5 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| Drive Keypad | Yes |
| Drive Loop | Closed |
| No. of Digital Inputs | 8 |
| No. of Analog Inputs | 4 |
| No. of Digital Outputs | 3 |
| No. of Analog Outputs | 3 |
| No. of Relay Outputs | 3 |
| Height (mm) | 233 |
| Width (mm) | 177 |
| Depth (mm) | 181 |
| Weight (kg) | 4.3 |
