Image shown is a representation only. Actual product may vary -
-
-
-
6AV6645-0EB01-0AX1 Siemens
Get Yours Repaired
-
£1,826.92
Fast Turnaround!
2 Year AFI Warranty!
Secure Checkout!
Eco Friendly Option!
Fast Turnaround!
2 Year AFI Warranty!
Secure Checkout!
Eco Friendly Option!

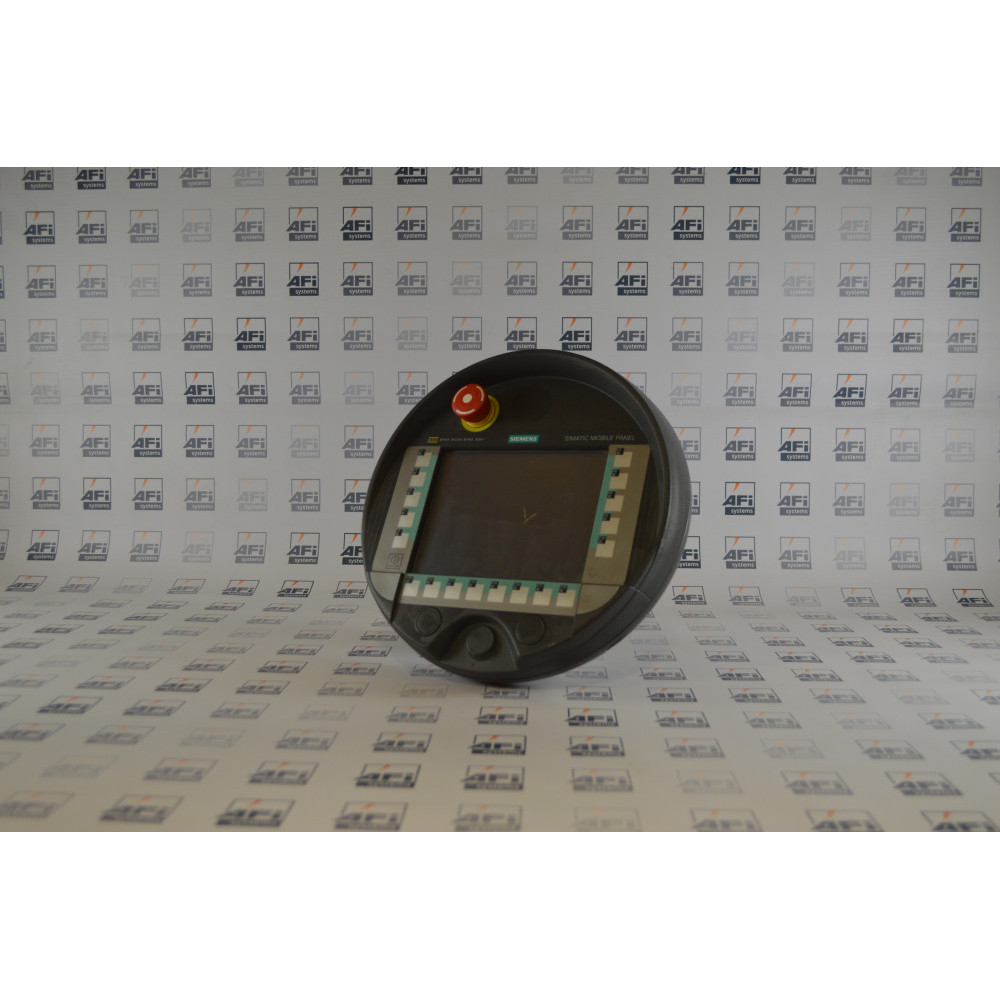

Siemens 6AV6645-0EB01-0AX1 8" SIMATIC Mobile Panel 277F IWLAN V2
The 6AV6645-0EB01-0AX1 by Siemens is an 8" SIMATIC Mobile Panel 277F IWLAN V2 HMI.
Addressable via touch and keys; 18-key membrane keypad /w/ multi-key function and analog resistive touchscreen. Emergency stop button /w/ forced blocking and acknowledgement button included.
Full-screen 7.5" TFT display, 65,536-color, 640x480px resolution. 50,000hr mean time between failure backlight.
Interface through PROFINET /w/ PROFIsafe, /w/ support for wireless LAN communication. 2MB configuration memory, running Windows CE, configurable through WinCC.
6AV6645-0EB01-0AX1 Specifications
| HMI Screen Size (in) | 7.5 |
| HMI Input Voltage (V) | 24 |
| HMI Communication (Type) | PROFINET |
| HMI Display Type | TFT |
| HMI Input Type | Keypad / Touchscreen |
