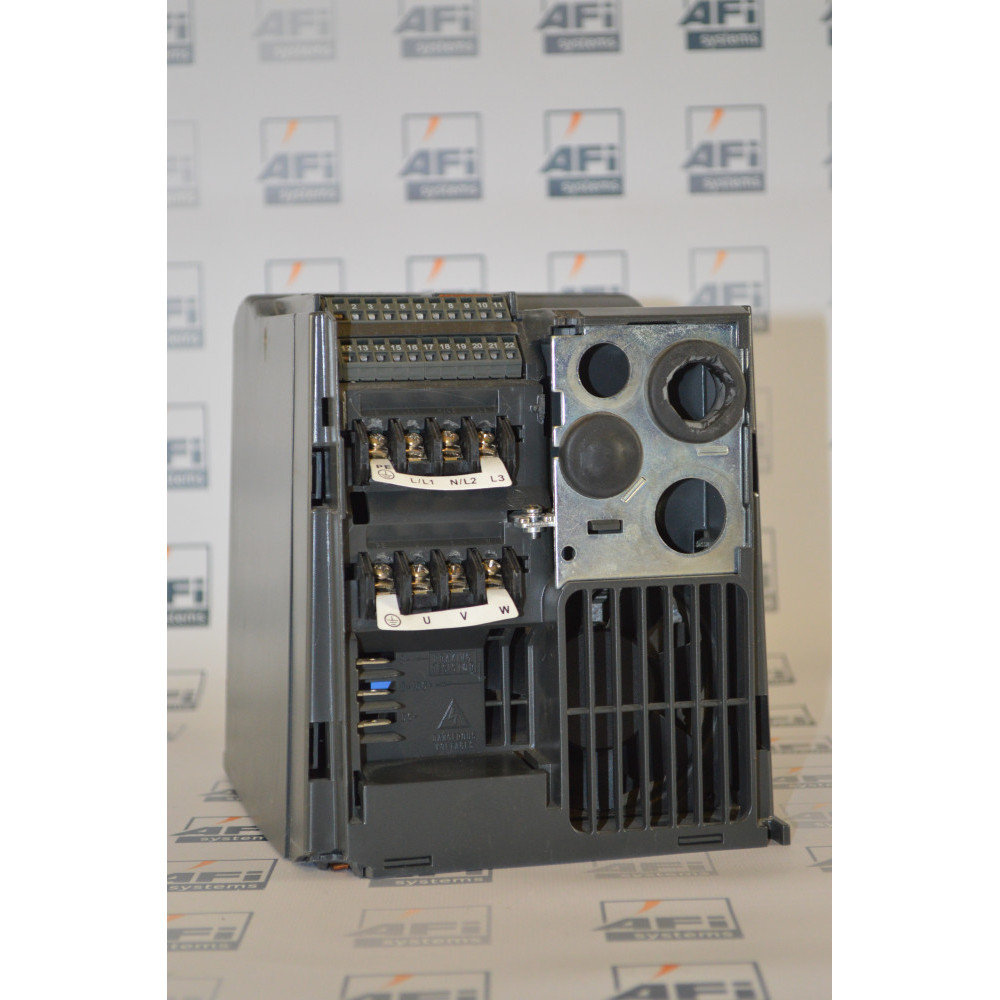

Siemens 6SE3217-3DB40 AC Inverter Drive
Siemens 6SE3217-3DB40 is a 3 phase, 7.7amp, 3kW, AC inverter drive from the MicroMaster Vector series.
AFi Systems are able to both supply and repair this drive and also other drives from within the MicroMaster Vector range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
6SE3-217-3DB40 Specifications
| Input Voltage (VAC) | 380...480V AC |
| Heavy Duty Power Output (kW) | 3 |
| Heavy Duty Power Output (HP) | 4 |
| Heavy Duty Output Current (A) | 6.8 |
| Input Phase | Three Phase |
| Ingress Protection Rating | IP20 |
| NEMA Rating | Nema 1 |
| EMC Filter | No Filter |
| Drive Keypad | Yes |
| Drive Loop | Closed |
| Drive Communications | USS Protocol |
| No. of Digital Inputs | 6 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 2 |
| No. of Relay Outputs | 2 |
| Height (mm) | 149 |
| Width (mm) | 184 |
| Depth (mm) | 172 |
Tags: 6SE3217-3DB40.
