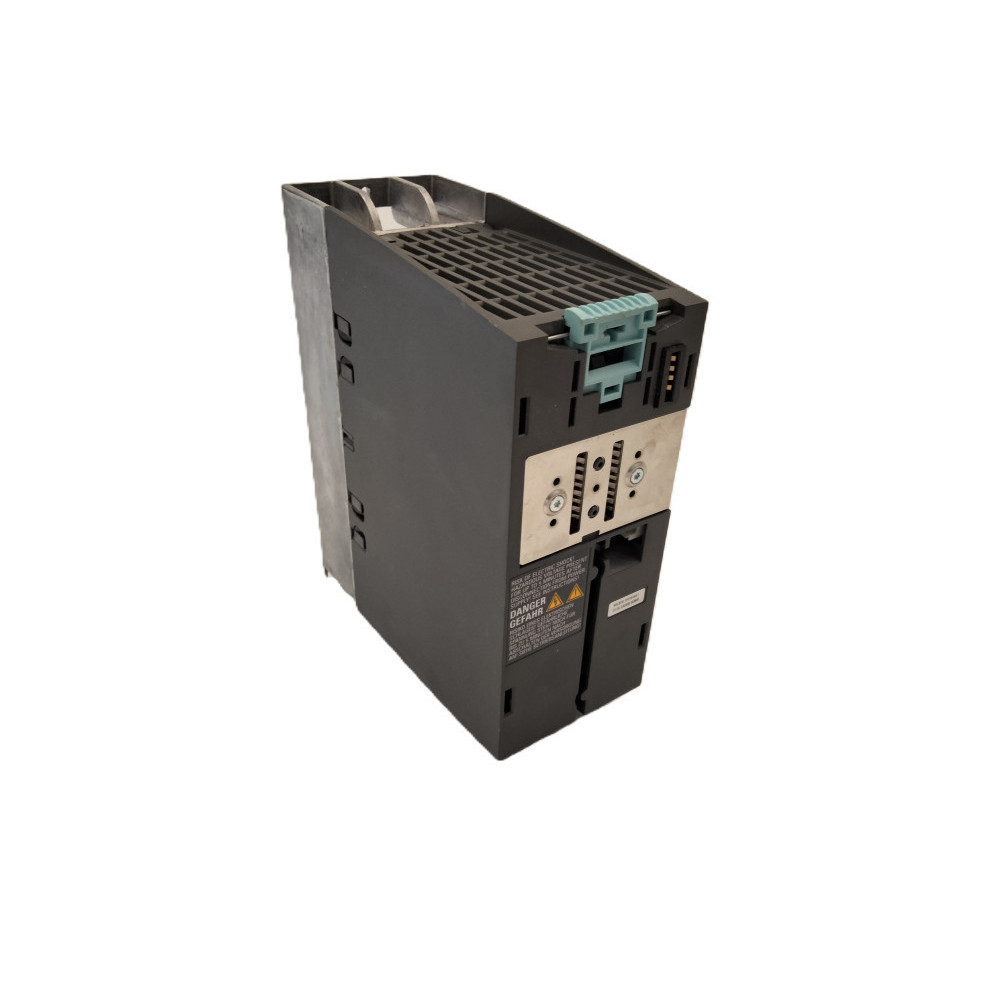

Image shown is a representation only. Actual product may vary -
-
-
-
Siemens 6SL3210-1PE18-0UL1 Sinamics G120 Power Module
The 6SL3210-1PE18-0UL1 is a Sinamics G120 PM240-2 power module by Siemens /w/ 3ph 380...480VAC supply ±10% @ 47...63Hz and 2.2kW, 3HP, 5.9A output.
No control unit present, unfiltered with integrated brake chopper. Suitable for use with control units from the following families; CU230P-2, CU240B-2, CU240E-2, and CU250S-2
IP20 rated enclosure, frame size A; 196mm (w/o shield) x 73mm x 165mm (HxWxD), net weight of 1.4kg.
6SL3210-1PE18-0UL1 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 5.9 |
| Normal Duty Power Output (kW) | 3 |
| Normal Duty Power Output (HP) | 4 |
| Normal Duty Output Current (A) | 7.7 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | No Filter |
| Height (mm) | 196 |
| Width (mm) | 73 |
| Depth (mm) | 165 |
| Weight (kg) | 1.4 |
