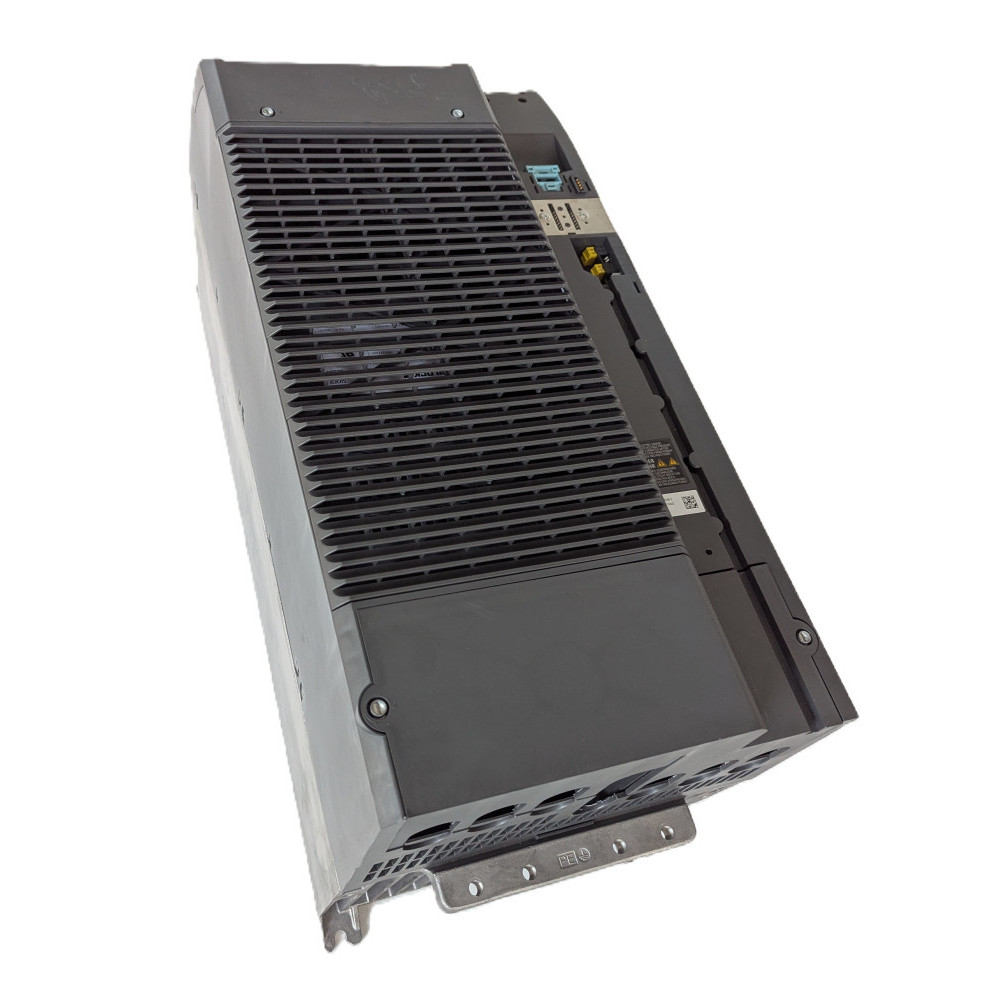

Image shown is a representation only. Actual product may vary -
-
-
-
Siemens 6SL3210-1PE32-1AL0 90kW SINAMICS G120 Power Module
The 6SL3210-1PE32-1AL0, a PM240-2 power module for the SINAMICS G120 range by Siemens, supports a 3ph 380...480 supply /w/ a 90kW, 125HP, 178A (HO) / 110kW, 150HP, 205A (LO) output. Built in EMC filter and brake chopper.
IP20 rated enclosure, frame size F; 708mm x 305mm x 357mm 9HxWxD), net weight of 66kg. Rated for ambient temperature of -20°C...+40°C (LO) / +50°C (HO).
6SL3210-1PE32-1AL0 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 90 |
| Heavy Duty Power Output (HP) | 125 |
| Heavy Duty Output Current (A) | 178 |
| Normal Duty Power Output (kW) | 110 |
| Normal Duty Power Output (HP) | 150 |
| Normal Duty Output Current (A) | 205 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Height (mm) | 708 |
| Width (mm) | 305 |
| Depth (mm) | 357 |
| Weight (kg) | 66 |
