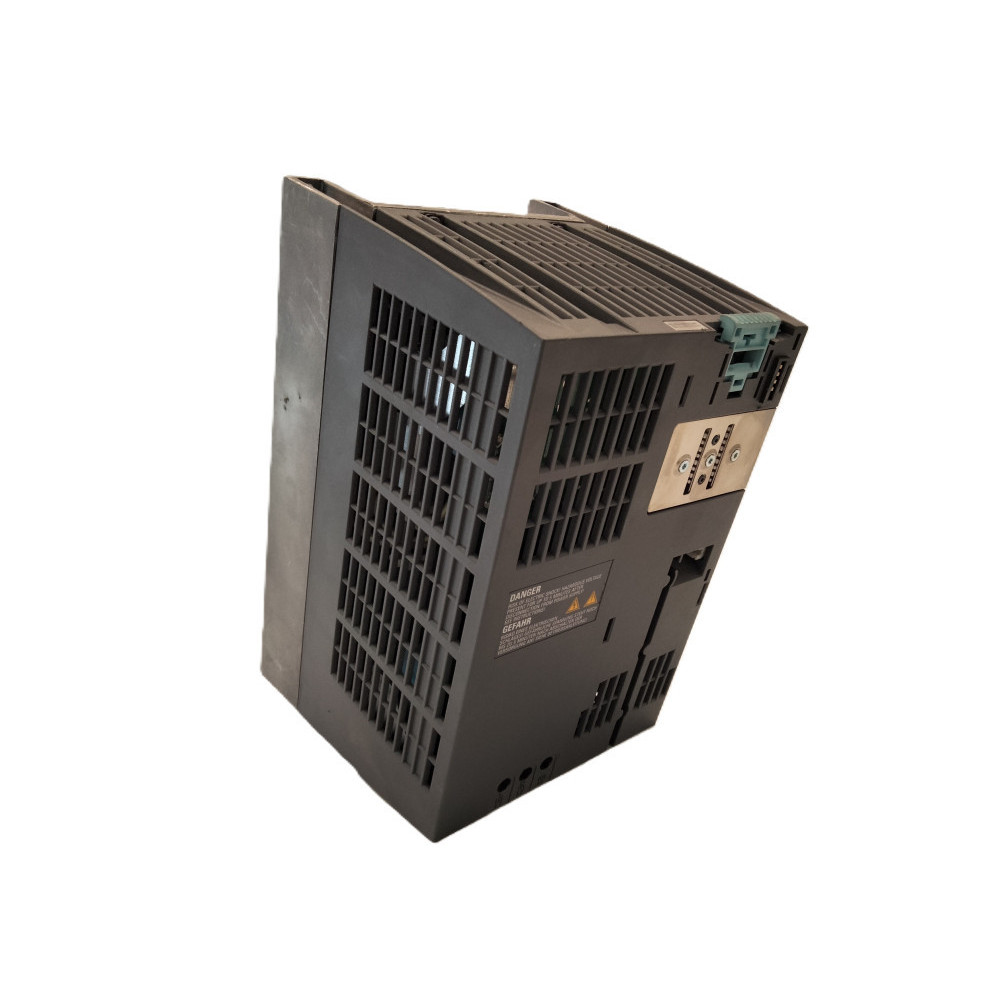

Image shown is a representation only. Actual product may vary -
-
-
-
Siemens 6SL3224-0BE22-2AA0 PM240 Power Module
6SL3224-0BE22-2AA0 SINAMICS PM240 Power Module by Siemens /w/ 3ph 380...480VAC Input ±10% @ 50/60Hz ±5% and 2.2kW, 3HP, 5.9A Output, for Use /w/ a Compatible G120 Series Modular Control Unit.
7.6A Input Current; Internal Class A Industrial EMC Filter; Use /w/ 160Ωmin External Resistor.
Rated for 50°C Ambient at High Overload; 40°C when Fan/Pump Rated. Requires 65mm Ventilation in Front, 100mm Above and Below, 30mm at the Sides. 139Wmax Heat Loss.
IP20 Rated, Wall Mounted Enclosure. Frame Size B: 165mm Deep x 153mm Wide x 270mm High /w/ 4.3kg Weight. Mounting via 4x4.8mm Rear Holes on 133mm x 258mm Centers.
6SL3224-0BE22-2AA0 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 5.9 |
| Normal Duty Power Output (kW) | 2.2 |
| Normal Duty Power Output (HP) | 3 |
| Normal Duty Output Current (A) | 5.9 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| Height (mm) | 270 |
| Width (mm) | 153 |
| Depth (mm) | 165 |
| Weight (kg) | 4.3 |
