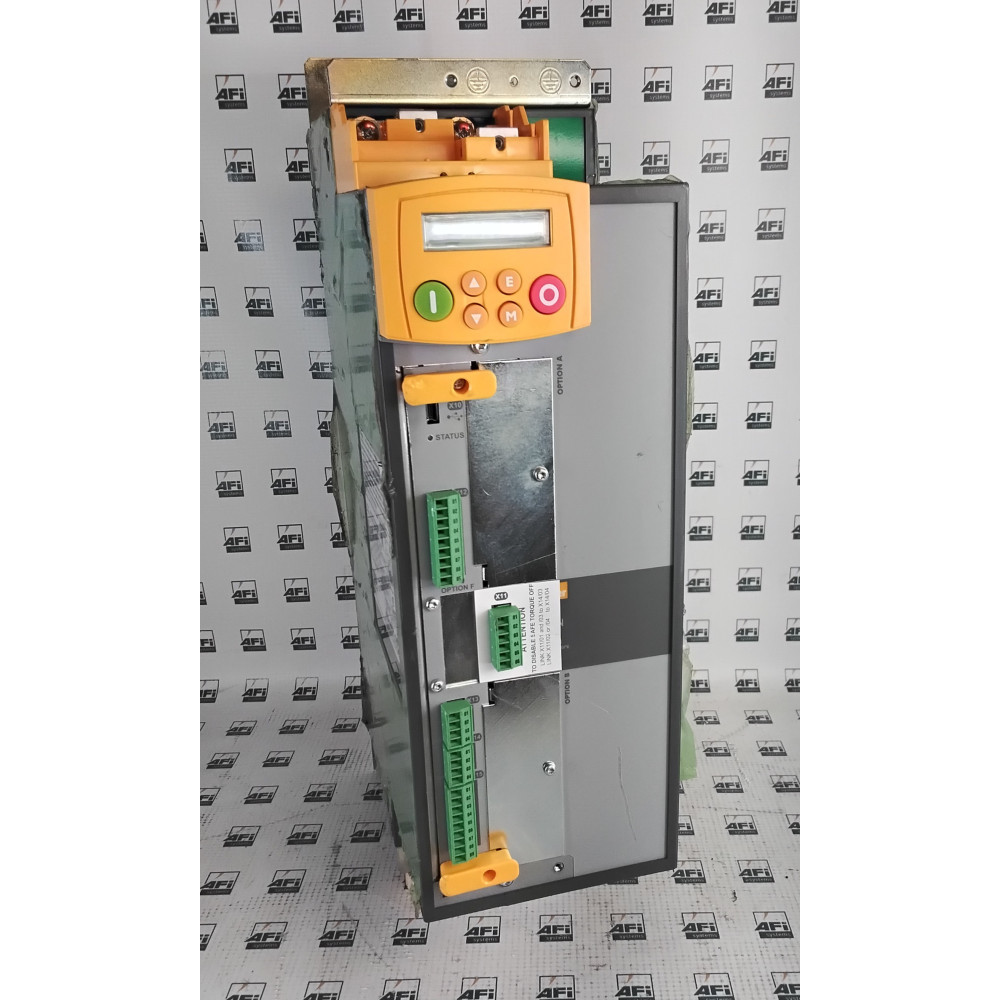

Parker 890CD-532240C0-000-1A000 DC Drive
Parker DC Drive
Power: 11 kW
Voltage Input: 320-705VDC (Common Bus)
Drive Format: Single Axis Technology, Multi Axis Technology
Rated Output Current: 24.0A Constant Torque Rating (20.0A Servo Mode)
Overload Ratings: Heavy Duty Rating (Constant Torque) : 150% for 60s, Normal Duty Rating (Variable Torque) : 110% for 60s, Servo Mode Rating (Frames B-D) : 200% for 4s
Supported Motor Types: Brushless Servo, Frameless Servo, Induction, Spindle, Torque, PMAC
Filter: Build-in EMC Filter
Operating temparature: 0 °C to +45 °C (derate up to 50 °C max)
Size: Frame C; 433.6x116x258.5 (HxWxD)
Weight: 6.6 kg
Protection class: IP20
