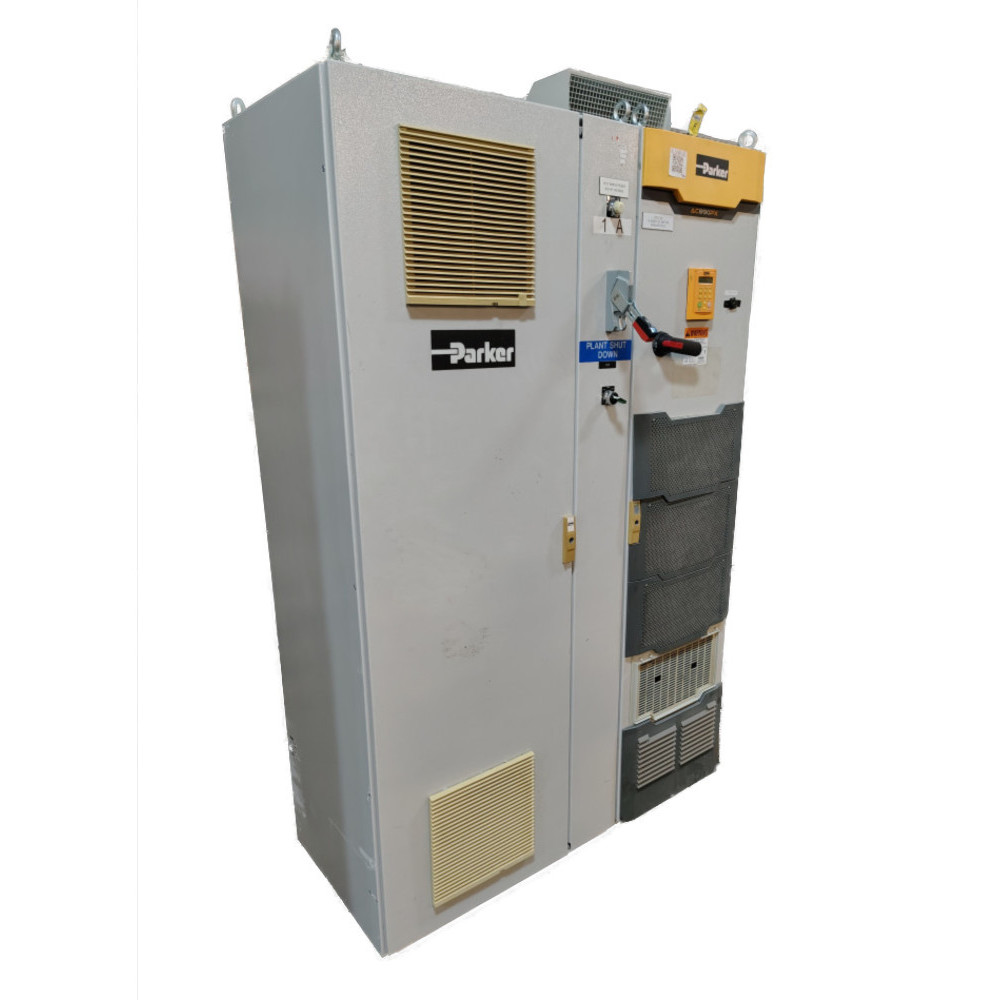

Image shown is a representation only. Actual product may vary -
-
-
-
Parker 890PX/4/0580/B/00/A 315kW 580A AC Drive
The 890PX/4/0580/B/00/A, part of the AC890PX range by Parker, is a high power, modular AC drive /w/ a 3ph 380...460VAC supply ±10% and a 315kW, 500HP, 580A output under constant torque loads, stretching to an output of 400kW, 600HP, 720A under variable torque loads.
Physical Characteristics
IP21, NEMA 1 rated enclosure, cabinet mount; 2203mm x 505mm x 650mm (HxWxD), net weight of 333kg.
Rated for operation between 0°C...+40°C, /w/ derating of 1%/Δ°C up to a maximum of 50°C @ 85%max relative humidity, non-condensing.
Suitable for use at altitudes up to 1000m above sea level, with derating of 1%/Δ100m up to a maximum of 4600m.
Please use in a non-flammable, non-corrosive, dust-free environment to ensure proper operation.
Configuration
Fitted with 8902/EQ/00 HTTL speed feedback option, allowing incremental encoders to be connected directly to the drive to provide highly accurate speed feedback measurement. Supplies variable voltage isolated encoder power supply.
8903/LN/83 LINKnet communications option fitted, supporting Ethernet I/P, Modbus TCP/IP and Modbus UDP/IP protocols. 100MB/s max. communication speed, interfaced with via RJ45, CAT-6 shielded port.
Braking control including internal brake resistor (200kJ/2.4kW) and thermal OL protection provided. Top-entry cables. Advanced performance drive.
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 890PX/4/0580/B/00/A, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your drive.
Any Questions?
If you require any assistance or have any questions about whether this 315kW 580A 890PX/4/0580/B/00/A is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your requests, and can ship drives to you quickly.
890PX/4/0580/B/00/A Specifications
| Input Voltage (VAC) | 380...460 |
| Heavy Duty Power Output (kW) | 315 |
| Heavy Duty Power Output (HP) | 500 |
| Heavy Duty Output Current (A) | 580 |
| Normal Duty Power Output (kW) | 400 |
| Normal Duty Power Output (HP) | 600 |
| Normal Duty Output Current (A) | 720 |
| Input Phase | Three |
| Ingress Protection Rating | IP21 |
| NEMA Rating | NEMA 1 |
| Drive Keypad | Yes |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | Ethernet I/P, Modbus TCP/IP, Modbus UDP/IP |
| No. of Digital Inputs | 7 |
| No. of Analog Inputs | 4 |
| No. of Digital Outputs | 2 |
| No. of Analog Outputs | 2 |
| No. of Relay Outputs | 1 |
| Safe Torque Off | Dual |
| Height (mm) | 2203 |
| Width (mm) | 505 |
| Depth (mm) | 650 |
| Weight (kg) | 333 |
