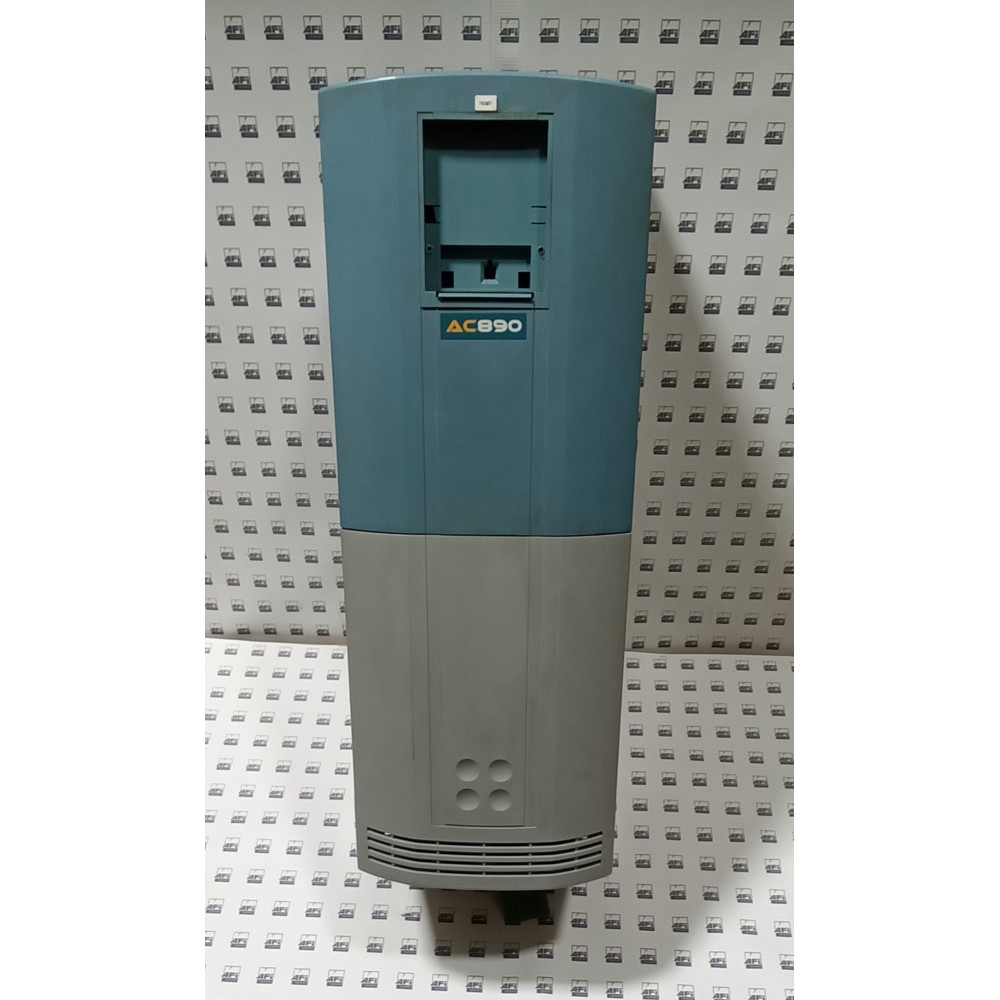

Parker 890SD/5/0145F/B/2F/A/UK AC Drive
Parker 890SD/5/0145F/B/2F/A/UK AC Drive /w/ 3ph 380...460VAC Input, 75kW, 100HP, 145A Output.
890SD/5/0145F/B/2F/A/UK Specifications
| Input Voltage (VAC) | 380...460 |
| Heavy Duty Power Output (kW) | 55 |
| Heavy Duty Power Output (HP) | 75 |
| Heavy Duty Output Current (A) | 105 |
| Normal Duty Power Output (kW) | 75 |
| Normal Duty Power Output (HP) | 100 |
| Normal Duty Output Current (A) | 145 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | No Filter |
| Drive Keypad | Yes |
| No. of Digital Inputs | 7 |
| No. of Analog Inputs | 4 |
| No. of Digital Outputs | 2 |
| No. of Analog Outputs | 2 |
| No. of Relay Outputs | 1 |
