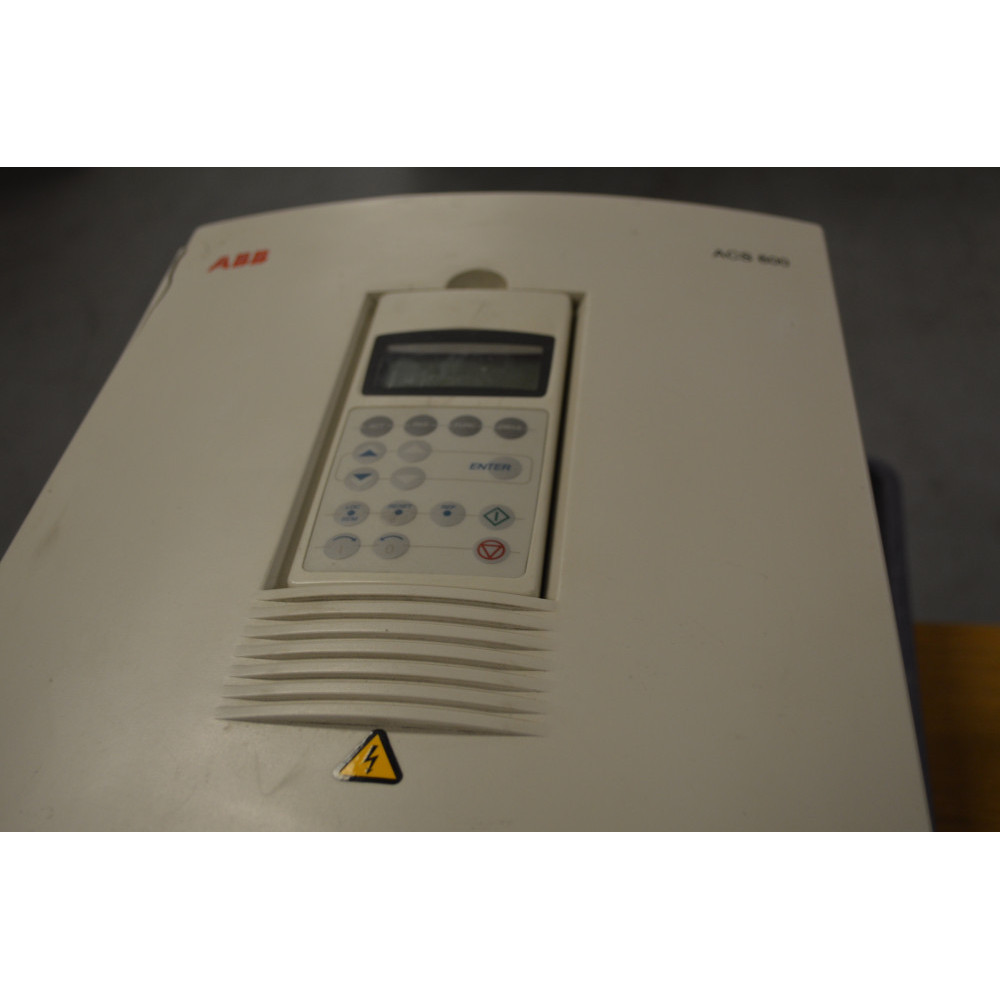

Image shown is a representation only. Actual product may vary -
-
-
ABB ACS601-0070-4-000B1200801 ACS-600 Inverter
ACS601-0070-4-000B1200801 ACS-600 Inverter by ABB /w/ 3ph 380...500VAC Input; 37kW, 50HP, 68A Heavy Duty Output; 45kW, 60HP, 96A Normal Duty Output.
Terminals Include 2x AI, 2x AQ, 6x DI (24VDC -15...+20%) and 3x Relay Outputs (8A @ 24VDC/250VAC, 0.4A @120VDC).
Features 160A Fuse to Suit Input Bridge @ 7500A2s. Air Flow of 280m3h-1 / 9888ft3h-1, Heat Dissipation of 1530W / 5225BTUh-1.
Frame R6, Wall-Mounted; 432mm Deep x 306mm Wide x 715mm High /w/ 50kg Weight.
ACS601-0070-4-000B1200801 Specifications
| AC Drive Input Voltage (VAC) | 380...50 |
| AC Drive Heavy Duty Output (HP) | 50 |
| AC Drive Heavy Duty Output (Amps) | 68 |
| AC Drive Heavy Duty Output (kw) | 37 |
| AC Drive Normal Duty Output (HP) | 60 |
| AC Drive Normal Duty Output (Amps) | 96 |
| AC Drive Normal Duty Output (kw) | 45 |
| AC Drive Phase | Three |
| AC Drive Protection | IP22 |
| AC Drive Nr Digital Inputs | 6 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Analog Outputs | 2 |
| AC Drive Nr Relay Outputs | 3 |
| AC Drive Height (mm) | 715 |
| AC Drive Depth (mm) | 432 |
| AC Drive Width (mm) | 306 |
| AC Drive Weight (kg) | 50 |
