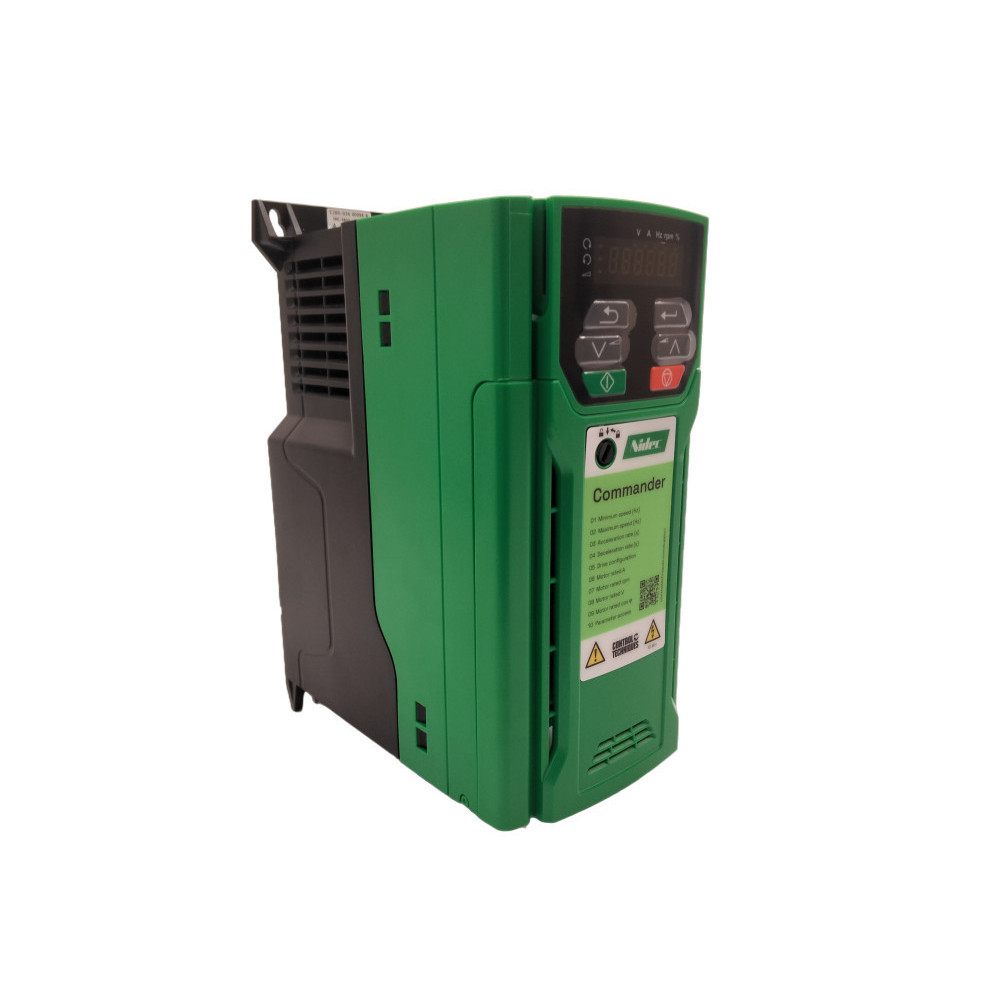

Image shown is a representation only. Actual product may vary -
-
-
-
Commander C200 Series 4kW Variable Speed Drive, 3 Phase, 400V, 9.4A, 380/480V AC
Control Techniques C200-034 00094 A Commander C200 Series 4kW Variable Speed Drive, 3 Phase, 400V, 9.4A, 380/480V AC
C200-034 00094 A Specifications
| AC Drive Application | General Purpose |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Heavy Duty Output (Amps) | 9.4 |
| AC Drive Heavy Duty Output (kw) | 4 |
| AC Drive Normal Duty Output (Amps) | 9.4 |
| AC Drive Normal Duty Output (kw) | 4 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive NEMA Rating | Nema 1 |
| AC Drive Keypad | Yes |
| AC Drive Filter | Industrial |
| AC Drive Loop | Open |
| AC Drive Logic | Positive |
| AC Drive Nr Digital Inputs | 4 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Bidirectional I/O | 1 |
| AC Drive Safe Torque Off | No |
| AC Drive Height (mm) | 200 |
| AC Drive Depth (mm) | 160 |
| AC Drive Width (mm) | 90 |
